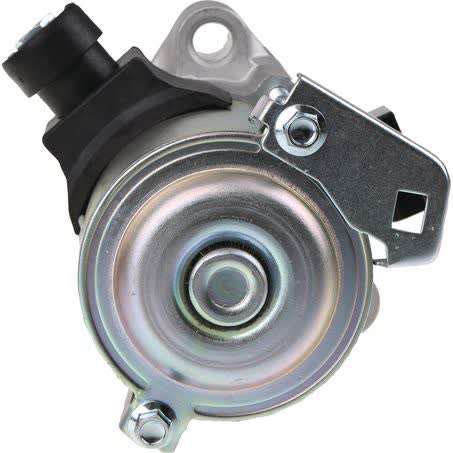

OEX Starter Motor 12V 9 Tooth CW Mitsuba Style MXS822

The OEX MXS822 is a new 12V starter motor with clockwise rotation, 9 teeth, and Mitsuba style application details. Key physical checks include a 70mm flange diameter, 91mm mount centre to centre, 11 / M12 mount hole diameter, and an overall length of 204mm.

This unit is listed as a starter motor for dry clutch applications and weighs 2.6kg. The pinion diameter is 29mm, with the pinion at rest measuring 34mm. These measurements are useful when comparing the replacement unit against the original starter before purchase.

OEX describes this product as being sourced from market leading Original Equipment Manufacturers and aftermarket suppliers, with sourcing from ISO certified factories. It is backed by a 3 year passenger / 1 year commercial warranty, which gives buyers a clear warranty reference when selecting the correct replacement part.

Key Features

• 12V starter motor
• Clockwise rotation (CW)
• 9 tooth pinion
• Mitsuba style unit
• New replacement part
• Dry clutch application

Specifications

• Brand: OEX
• Part No.: MXS822
• Product type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 9
• Suits unit make: Mitsuba
• Flange diameter: 70mm

Fitment guidance

• HONDA: CITY, CITY 2014, CITY 2015, CITY 2016, CITY 2017, plus other listed applications

Application and Buying Notes

Before ordering, match the part number MXS822 and confirm the starter’s physical measurements against the original unit. The key points here are 12V, 9 tooth, clockwise rotation, 70mm flange diameter, 204mm overall length, and 91mm mount centre to centre, as these are the details most likely to determine whether the replacement is correct for your vehicle.

This starter is described as Mitsuba style and suits a Mitsuba unit make, so it should be checked carefully against the existing starter design rather than assumed to suit by vehicle badge alone. Even small differences in mounting style, pinion dimensions, or housing size can affect interchangeability.

The note supplied with this part is important: low voltage at the starter can cause the solenoid contacts to chatter and burn. Battery condition and cable condition should be checked before fitting a new starter motor, especially if the old unit failed after slow cranking or repeated clicking.

Warranty cover is stated as 3 years for passenger use and 1 year for commercial use. That warranty does not replace the need to verify fitment, mounting pattern, rotation, and electrical condition before installation. A correct starter still depends on proper vehicle match and sound supply voltage.

If you are comparing this unit to a removed starter, pay particular attention to the 11 / M12 mount holes, 2 hole starter mount, 29mm pinion diameter, and 34mm pinion at rest measurement. These are practical comparison points that help confirm whether the replacement aligns with the original assembly.

Because starter motors are application-sensitive components, confirm all fitment details before purchase and before installation. If the vehicle has had prior modifications, non-standard wiring, or battery/cable issues, those should be checked as part of the replacement process rather than assuming the starter itself is the only fault.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS822 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Hole Diameter 11 / M12, Overall Length 204mm, Pinion Diameter 29mm, Suits Unit Make Mitsuba, Note Voltage drop to the starter (Low voltage) can cause the solenoid contacts to chatter and burn. Please make sure to check the battery condition and cables before the new starter motor fitment., New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. MXS822, Brand OEX, Description OEX Starter Motor 12V 9Th CW Mitsuba Style - See Note, Flange Diameter 70mm, Number of Teeth 9, Pinion at Rest 34mm, Rotation CW, Voltage 12.

OEX Starter Motor 12V 9Th CW Mitsuba Style - See Note. Part number MXS822 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS822, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HONDA CITY, HONDA CITY 2014, HONDA CITY 2015, HONDA CITY 2016. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility using the part number MXS822, the Mitsuba style application, and the listed measurements and rotation details before ordering or fitting.

FAQ

What type of part is the OEX MXS822?

It is a new 12V starter motor with clockwise rotation, 9 teeth, and Mitsuba style application details.

What part number should I match for this starter motor?

The part number listed is MXS822.

What voltage and rotation does this starter motor use?

It is a 12V unit with clockwise (CW) rotation.

What are the main mounting measurements?

The listed mounting details are a 70mm flange diameter, 91mm mount centre to centre, 11 / M12 mount hole diameter, and a 2 hole starter mount.

What should I check before fitting a replacement starter motor?

Check the battery condition and cables first, because low voltage can cause the solenoid contacts to chatter and burn. Also confirm the part number, rotation, and physical measurements against the original starter.

What warranty is listed for this OEX starter motor?

The warranty listed is 3 years for passenger use and 1 year for commercial use.
