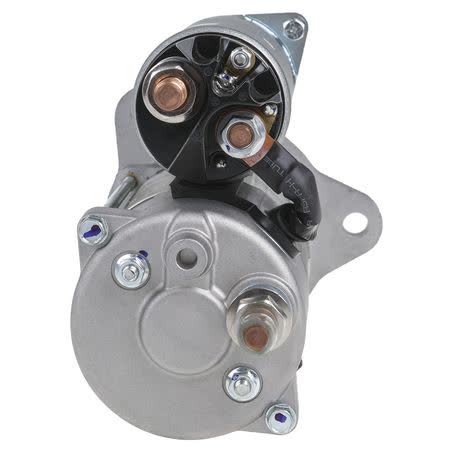

OEX Starter Motor 12V 12TH CW 35MT Delco Style DXS627

The OEX Starter Motor DXS627 is a new 12V starter motor with 12 teeth, clockwise rotation, and a 35MT Delco style application. It is listed with a 4.3kW power rating, a 3-hole starter mount type, and a dry clutch configuration, which makes the core installation details easy to confirm before ordering.

Key dimensions include 126mm mount centres A, B and C, a 92mm flange diameter, 355mm overall length, and a 48mm pinion at rest. The pinion diameter is 46mm and the mount hole diameter is 13.5mm, so the physical layout can be checked against the existing unit before fitment.

This starter is identified for Delco units and carries part number DXS627. It is a 10.1kg unit supplied new, and the warranty listed is 3yr Passenger 1yr Commercial, which is useful when comparing against rebuilt or remanufactured alternatives in the same application range.

Key Features

• New OEX starter motor
• 12V, 12-tooth, clockwise rotation
• 35MT Delco style application
• 4.3kW power rating
• 3-hole starter mount type
• Dry clutch configuration

Specifications

• Brand: OEX
• Product type: Starter Motor
• Part No.: DXS627
• Voltage: 12V
• Number of teeth: 12
• Rotation: CW
• Suits unit make: Delco
• Power rating: 4.3kW

Fitment references supplied

• AGCO Allis 9435
• AGCO Allis 9455
• Case 1420
• Cummins ISC 8.3
• Cummins ISL 8.9
• Ford Cargo
• Ford L-Series
• Freightliner Columbia

Application and Buying Notes

Before ordering, check the part number DXS627, the Delco unit make, and the 35MT style against the starter already on the vehicle or machine. The key physical checks are the 12V rating, 12-tooth pinion, clockwise rotation, 3-hole mount, and the 126mm mount centres, because those details need to line up with the existing application.

The dimensions are also important for clearance and alignment. This unit measures 355mm overall length, has a 92mm flange diameter, a 46mm pinion diameter, and a 48mm pinion at rest. Those figures help confirm whether the starter will physically sit and engage the same way as the original unit.

If you are replacing a starter on equipment or a truck that lists Delco-style compatibility, match the unit make and the mounting pattern first, then compare the tooth count and rotation. A starter can share a general family description and still differ in mount centres or pinion dimensions, so the safest approach is to verify the existing part number and measured dimensions side by side.

The listed warranty is 3yr Passenger 1yr Commercial, and the unit is new rather than remanufactured. That may be useful if you are comparing total replacement cost, service life expectations, or workshop preference, but it should not replace a proper fitment check against the vehicle or engine application.

For buyers working from a cross-reference or a worn original starter, the most reliable checkpoints here are DXS627, 12V, CW rotation, 12 teeth, and the 35MT Delco style reference. If any of those details differ from the removed unit, pause and confirm before fitting, especially where the starter mount type or pinion position is critical.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS627 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 126mm, Mount Centres C 126mm, Number of Teeth 12, Pinion at Rest 48mm, Power Rating 4.3kW, Suits Unit Make Delco, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. DXS627, Brand OEX, Description OEX Starter Motor 12V 12Th CW 35MT Delco Style, Flange Diameter 92mm, Mount Centres B 126mm, Mount Hole Diameter 13.5, Overall Length 355mm.

OEX Starter Motor 12V 12Th CW 35MT Delco Style. Part number DXS627 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS627, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment by matching part number DXS627, Delco unit make, 12V, 12-tooth CW specification, 35MT style, and the 126mm mount centres with the original starter and application details before purchase.

FAQ

What is the part number for this starter motor?

The part number is DXS627. For this listing, part number DXS627 is the main reference point. Listed voltage is 12. Published fitment references include AGCO ALLIS 9435, AGCO ALLIS 9435 1996, AGCO ALLIS 9455. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number DXS627 is the main reference point. Listed voltage is 12. Published fitment references include AGCO ALLIS 9435, AGCO ALLIS 9435 1996, AGCO ALLIS 9455. These details should still be checked against the original unit before ordering.

What voltage does this starter use?

It is a 12V starter motor. For this listing, part number DXS627 is the main reference point. Listed voltage is 12. Published fitment references include AGCO ALLIS 9435, AGCO ALLIS 9435 1996, AGCO ALLIS 9455. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 12 teeth. For this listing, part number DXS627 is the main reference point. Listed voltage is 12. Published fitment references include AGCO ALLIS 9435, AGCO ALLIS 9435 1996, AGCO ALLIS 9455. These details should still be checked against the original unit before ordering.

What rotation does the starter have?

It is clockwise rotation, shown as CW. For this listing, part number DXS627 is the main reference point. Listed voltage is 12. Published fitment references include AGCO ALLIS 9435, AGCO ALLIS 9435 1996, AGCO ALLIS 9455. These details should still be checked against the original unit before ordering.

What should I check before ordering for fitment?

Check DXS627, 12V, 12 teeth, CW rotation, Delco unit make, 35MT style, 3-hole mount type, and the 126mm mount centres against the original starter and application details. For this listing, part number DXS627 is the main reference point. Listed voltage is 12. Published fitment references include AGCO ALLIS 9435, AGCO ALLIS 9435 1996, AGCO ALLIS 9455. These details should still be checked against the original unit before ordering.
