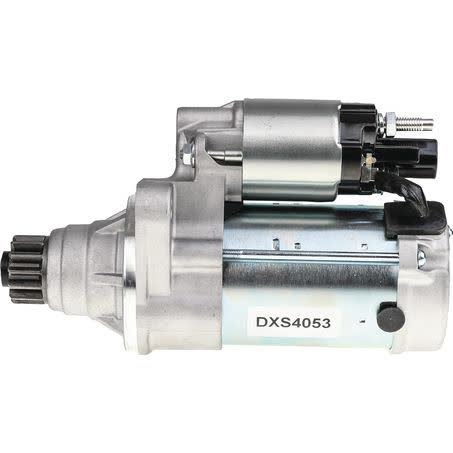

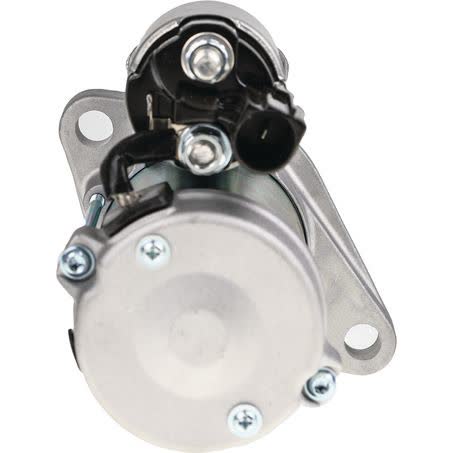

OEX Starter Motor 12V 13 Tooth CCW Denso Style DXS4053

The OEX Starter Motor DXS4053 is a new 12V starter motor in Denso style, with 13 teeth and CCW rotation. It is listed as a 2 hole starter mount type with a 13 mm mount hole diameter and 122 mm mount centre to centre spacing, so those mounting details should be checked carefully against the existing unit before purchase.

Key dimensions include an overall length of 220 mm, a flange diameter of 79 mm, a pinion diameter of 34 mm and pinion at rest of 63 mm. The unit weighs 3.2 kg, which can be useful when comparing the replacement against the removed starter motor.

This starter is identified as part number DXS4053 and is described as suitable for Denso applications. OEX notes that its products are sourced from ISO certified factories and backed by a three year warranty, which gives useful buying context when replacing a rotating electrical component.

Key Features

• 12V starter motor
• 13 tooth pinion
• CCW rotation
• Denso style unit
• 2 hole starter mount
• New unit

Specifications

• Voltage: 12V
• Rotation: CCW
• Number of teeth: 13
• Starter mount type: 2 hole
• Mount hole diameter: 13 mm
• Mount centre to centre: 122 mm
• Flange diameter: 79 mm
• Overall length: 220 mm

Fitment guidance

• Fitment data supplied includes Audi A1 and Audi A3 applications.
• Fitment data supplied includes Skoda Octavia and Skoda Yeti applications.
• Fitment data supplied includes Volkswagen Caddy, Golf, Golf Alltrack and Passat applications.
• Some applications are listed across multiple model years, including Audi A1, Skoda Octavia, Skoda Yeti and Volkswagen Caddy.
• Match the part number, mounting style, tooth count, rotation and key dimensions before ordering.

Application and Buying Notes

Starter motors need to match more than just voltage, and this unit is specified as 12V with CCW rotation, 13 teeth and a 2 hole mount. The listed part number is DXS4053, so comparing that number against the removed starter or the vehicle’s parts listing is one of the safest ways to confirm you are looking at the correct replacement.

The mounting and body dimensions are important on this starter because the mount hole diameter is 13 mm, the mount centre to centre measurement is 122 mm, the flange diameter is 79 mm and the overall length is 220 mm. If any of those dimensions differ from the original unit, the starter may not fit or may not align correctly in the housing.

Because the unit is described as Denso style and suits Denso applications, it is best to confirm the existing starter’s make, rotation and tooth count rather than relying on appearance alone. The pinion diameter is 34 mm and pinion at rest is 63 mm, which are additional checks that can help when comparing the removed part side by side.

The supplied fitment coverage includes Audi, Skoda and Volkswagen applications, but it should still be treated as a guide rather than a guarantee. Final confirmation should always be made by matching the part number DXS4053, the 12V specification, the CCW rotation and the mounting measurements to the vehicle you are working on.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS4053 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty Three Years, Mount Hole Diameter 13, Overall Length 220mm, Pinion Diameter 34mm, Suits Unit Make Denso, Item Type Starter Motor, New / Reman. New, Weight 3.2kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. DXS4053, Brand OEX, Description OEX Starter Motor 12V 13Th CCW Denso Style, Flange Diameter 79mm, Number of Teeth 13, Pinion at Rest 63mm, Rotation CCW, Voltage 12, Mount Cnt to Cnt 122mm.

OEX Starter Motor 12V 13Th CCW Denso Style. Part number DXS4053 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS4053, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include AUDI A1, AUDI A1 2014, AUDI A1 2015, AUDI A1 2016, SKODA OCTAVIA, SKODA OCTAVIA 2012. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by checking part number DXS4053, 12V voltage, CCW rotation, 13 tooth count, 2 hole mount type and the listed dimensions against the existing starter and vehicle application details before purchase.

FAQ

What is the part number for this starter motor?

The part number listed is DXS4053. For this listing, part number DXS4053 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A1, AUDI A1 2014, AUDI A1 2015. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number DXS4053 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A1, AUDI A1 2014, AUDI A1 2015. These details should still be checked against the original unit before ordering.

What voltage does this starter motor use?

It is a 12V starter motor. For this listing, part number DXS4053 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A1, AUDI A1 2014, AUDI A1 2015. These details should still be checked against the original unit before ordering.

What rotation does this starter motor have?

It is listed as CCW rotation. For this listing, part number DXS4053 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A1, AUDI A1 2014, AUDI A1 2015. These details should still be checked against the original unit before ordering.

What are the main mounting details?

It has a 2 hole starter mount, 13 mm mount hole diameter and 122 mm mount centre to centre spacing. For this listing, part number DXS4053 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A1, AUDI A1 2014, AUDI A1 2015. These details should still be checked against the original unit before ordering.

What warranty is listed for this OEX starter motor?

It is backed by a three year warranty. For this listing, part number DXS4053 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A1, AUDI A1 2014, AUDI A1 2015. These details should still be checked against the original unit before ordering.
