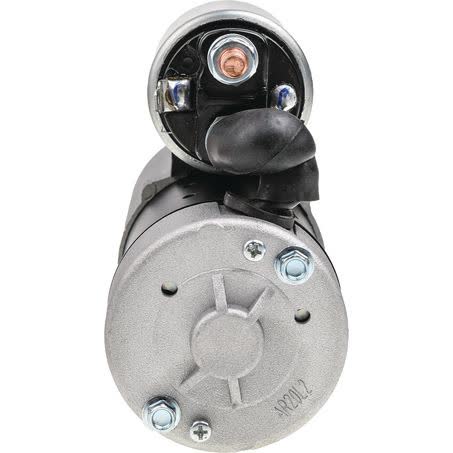

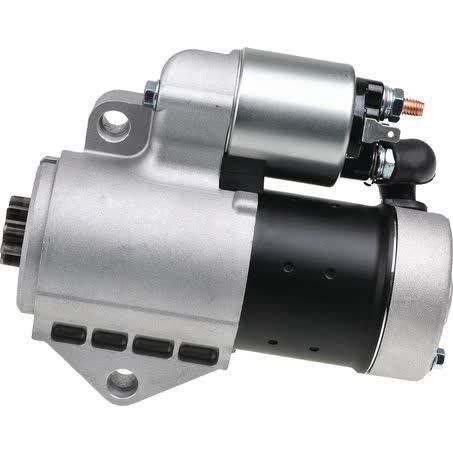

OEX Starter Motor 12V 9 Tooth CW Hitachi Style SMX095

The OEX SMX095 is a new 12V starter motor built in a Hitachi style configuration, with 9 teeth and clockwise rotation. It carries a 1.4kW power rating, a 66mm flange diameter, and a 2-hole starter mount type, making those measurements important checkpoints when matching it to an existing unit.

Key dimensions include an overall length of 187mm, a mount hole diameter of 10mm, a mount centre-to-centre measurement of 105mm, and a pinion diameter of 29mm. The pinion sits 18mm at rest. If you are replacing an original starter, these are the figures to compare against the vehicle or marine application already on the machine.

This starter motor is listed under OEX part number SMX095 and OEM number S114-837, and it is described as suitable for Hitachi applications. The note supplied also references Evinrude Johnson and Suzuki marine applications, so the practical approach is to match the part number, mounting pattern, tooth count, rotation, and key dimensions before ordering.

Key Features

• 12V starter motor
• 9 tooth pinion
• Clockwise rotation
• New unit
• Hitachi style
• 2-hole starter mount

Specifications

• Brand: OEX
• Product type: Starter motor
• Unit of measure: Each
• Voltage: 12V
• Rotation: CW
• Power rating: 1.4kW
• Number of teeth: 9
• Pinion diameter: 29mm

Application and Buying Notes

When ordering a starter motor, the safest check is to compare the physical measurements and electrical setup against the original unit. For this OEX starter, the important identifiers are 12V, clockwise rotation, 9 teeth, 1.4kW, and the 2-hole mount pattern with a 105mm centre-to-centre measurement. If any of those differ from your existing starter, do not assume it will interchange.

The starter is described as Hitachi style and suited to Hitachi applications, with a note mentioning Evinrude Johnson and Suzuki marine applications. That is useful as a pointer, but it is not a substitute for checking the actual part number and mounting details. The best match remains the existing starter itself, especially the flange diameter of 66mm, overall length of 187mm, and 29mm pinion diameter.

If you are replacing a marine starter, take extra care with the rotation direction, tooth count, and pinion position at rest. Those details affect how the starter engages, and the wrong combination can mean the part will not physically fit or operate correctly. The listed weight is 3.0kg, which can also help when comparing the new unit to the removed part.

The supplied warranty is one year, and the starter is a new unit rather than remanufactured. That gives a clear buying position, but it still leaves the installer responsible for checking the application. Before purchase, confirm the OEX part number SMX095 or OEM number S114-837 against the unit being replaced, and verify the 10mm mount hole diameter and 66mm flange diameter.

OEX products are described as being sourced from market leading original equipment manufacturers and aftermarket suppliers, and from ISO certified factories. That speaks to the brand’s supply arrangement, but the practical fit check still comes back to the starter’s actual dimensions and application details. Use the part number, mounting type, and tooth count as the main comparison points.

Because starter motors can share similar styling while differing in rotation, tooth count, and flange size, it is worth checking the old unit carefully before removal if possible. The specifications here provide the key technical checkpoints for a proper cross-reference: 12V, CW, 9 teeth, 1.4kW, 187mm overall length, and 105mm mount centre-to-centre.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number SMX095 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Hole Diameter 10, Overall Length 187mm, Pinion Diameter 29mm, Rotation CW, Voltage 12, Item Type Starter Motor, New / Reman. New.

Additional published details for cross-checking include OEM Number S114-837, Product Group 2 STARTER MOTORS, Part No. SMX095, Brand OEX, Description OEX Starter Motor 12V 9Th CW Hitachi Style, Flange Diameter 66mm, Number of Teeth 9, Pinion at Rest 18mm, Power Rating 1.4kW.

OEX Starter Motor 12V 9Th CW Hitachi Style. Part number SMX095 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number SMX095, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm fitment by matching part number SMX095 or OEM number S114-837, along with the 12V CW 9-tooth Hitachi style specification, 2-hole mounting pattern, and the listed dimensions before ordering.

FAQ

Is this starter motor new or remanufactured?

It is listed as new, not remanufactured.

What voltage does this starter motor use?

It is a 12V starter motor.

What are the key mounting measurements?

The listed mounting details are a 2-hole starter mount, 10mm mount hole diameter, 105mm mount centre-to-centre, and 66mm flange diameter.

What is the rotation direction and tooth count?

This unit is clockwise rotation and has 9 teeth.

What part number should I check against?

The OEX part number is SMX095, and the OEM number listed is S114-837.

Does the listing confirm exact vehicle fitment?

No exact vehicle fitment is listed. The note references Hitachi applications and mentions Evinrude Johnson and Suzuki marine applications, so the safest approach is to confirm against the part number and the physical measurements.
