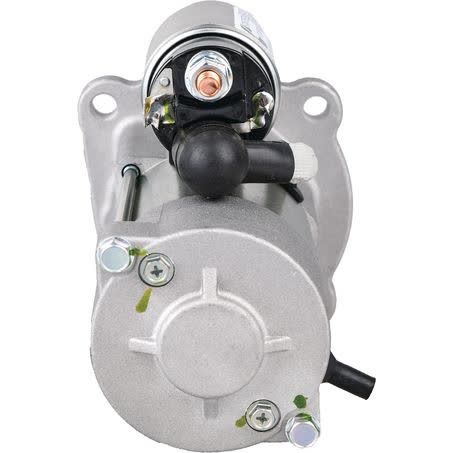

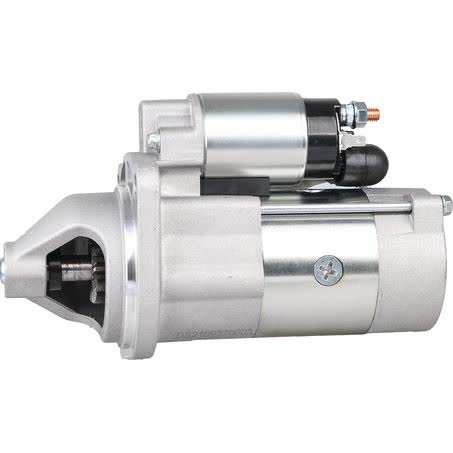

OEX Starter Motor 12V 10 Tooth CW Cummins ZXS101

The OEX Starter Motor ZXS101 is a new 12V starter motor with 10 teeth and clockwise rotation, designed for Cummins applications. It is a 2.5kW unit with a 3 hole starter mount, 127mm mount centres A, and 90mm mount centres C, so the physical mounting details can be checked before ordering.

Key dimensions include an overall length of 245mm, flange diameter of 89mm, mount hole diameter of 11mm, pinion diameter of 40mm, and pinion at rest of 19mm. Those measurements matter when you are matching the starter to the vehicle’s existing setup, especially where clearance and bolt pattern need to line up exactly.

This starter is listed as part number ZXS101 and OEM number 5363153, with a one year warranty. It suits Cummins as the unit make, and the fitment information provided includes Foton applications, so it is worth confirming both the part number and vehicle application details before fitting.

Key Features

• New starter motor
• 12 volt
• 10 tooth pinion
• Clockwise rotation
• 2.5kW power rating
• 3 hole starter mount

Specifications

• Brand: OEX
• Product type: Starter motor
• Unit of measure: Each
• Voltage: 12V
• Rotation: CW
• Number of teeth: 10
• Power rating: 2.5kW
• Starter mount type: 3 hole

Verified fitment details

• Foton 45.110
• Foton Aumark
• Foton Sauvana
• Foton Tunland
• Foton View
• Foton View G7

Application and Buying Notes

Before ordering, check the existing starter against the listed identifiers: ZXS101, OEM number 5363153, 12V supply, 10 tooth pinion, and clockwise rotation. These details are the first things to confirm because starter motors can differ by voltage, pinion count, rotation direction, and mounting pattern even when they look similar.

The mount measurements are just as important. This unit has a 3 hole mount with 127mm mount centres A, 90mm mount centres B and C, an 11mm mount hole diameter, and an 89mm flange diameter. If those dimensions do not match the vehicle or the removed starter, it is safer to stop and recheck rather than force a fit.

For clearance and drive engagement, note the 245mm overall length, 40mm pinion diameter, 19mm pinion at rest, and 2.5kW power rating. Those figures help compare the replacement to the original unit, especially where the starter sits close to housings, brackets, or other engine bay components.

The listed fitment information includes several Foton applications, but it should still be treated as a guide rather than a blanket guarantee. Confirm the exact vehicle model, year, engine arrangement, and the physical starter dimensions before purchase, particularly if the vehicle has had prior electrical or engine work.

This is a new starter motor supplied as an each item, with a one year warranty. If you are replacing a failed starter, it is sensible to compare the removed unit against the part number, the OEM number, and the mount dimensions so you can order with confidence and avoid unnecessary delays.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number ZXS101 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 127mm, Mount Centres C 90mm, Number of Teeth 10, Pinion at Rest 19mm, Power Rating 2.5kW, Suits Unit Make Cummins, Item Type Starter Motor.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Weight 5.2kg, Product Group 1 ROTATING ELECTRICAL, Part No. ZXS101, Brand OEX, Description OEX Starter Motor 12V 10Th CW Cummins, Flange Diameter 89mm, Mount Centres B 90mm, Mount Hole Diameter 11, Overall Length 245mm.

OEX Starter Motor 12V 10Th CW Cummins. Part number ZXS101 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number ZXS101, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FOTON 45.110, FOTON 45.110 2014, FOTON 45.110 2015, FOTON 45.110 2016. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Please confirm compatibility using part number ZXS101, OEM number 5363153, the 12V 10 tooth clockwise specification, and the stated mounting dimensions before purchase. Vehicle fitment should always be checked against the actual application details on the vehicle.

FAQ

What type of starter motor is this?

It is an OEX starter motor, listed as new, with a 12V rating, 10 teeth, clockwise rotation, and a 2.5kW power rating.

What is the part number?

The part number is ZXS101. The OEM number listed is 5363153.

What mounting details should I check?

Check the 3 hole starter mount, 127mm mount centres A, 90mm mount centres B and C, 11mm mount hole diameter, and 89mm flange diameter.

What vehicles are shown in the fitment details?

The fitment details provided include Foton 45.110, Foton Aumark, Foton Sauvana, Foton Tunland, Foton View, and Foton View G7.

Is this a new or remanufactured unit?

It is listed as new, not remanufactured.

What warranty is included?

A one year warranty is listed for this starter motor.
