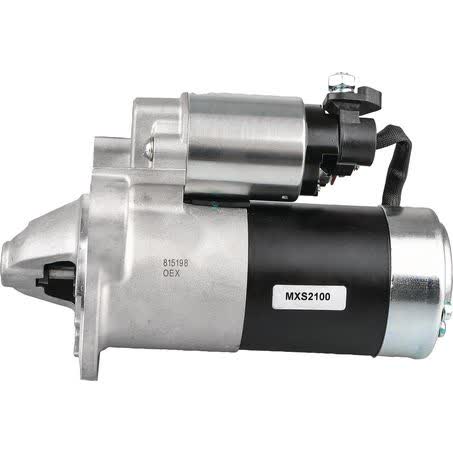

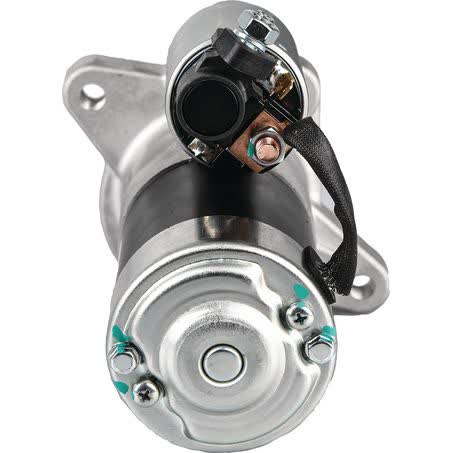

OEX Starter Motor 12V 9T CW Mitsubishi Style MXS2100

The OEX Starter Motor MXS2100 is a 12V unit with 9 teeth, clockwise rotation, and a Mitsubishi-style application. It is listed as a new starter motor, supplied each, with an overall length of 221mm and a 3 hole starter mount type.

Key mounting measurements include 141mm mount centres A, 91mm mount centres B, and 81mm mount centres C. The unit also has an 88mm flange diameter, M12x1.5 mount hole diameter, a 30mm pinion diameter, and a 5mm pinion at rest.

This starter motor is identified as suitable for Mitsubishi unit make applications. The listed warranty is 3 years for passenger use and 1 year for commercial use, which gives a clear reference point when comparing replacement options for 12V Mitsubishi-style starters.

Key Features

• 12V starter motor
• 9-tooth pinion
• Clockwise rotation (CW)
• New unit
• Mitsubishi style application
• 3 hole starter mount

Specifications

• Brand: OEX
• Part No.: MXS2100
• Type: Starter motor
• Voltage: 12V
• Number of teeth: 9
• Rotation: CW
• Starter mount type: 3 hole
• Mount centres A: 141mm

Fitment guidance

• Verified fitment is only listed at unit-make level for Mitsubishi.
• No specific vehicle models, engine codes, or year range are confirmed in the supplied product facts.
• Check the part number MXS2100, the 12V rating, 9-tooth pinion, CW rotation, and the mounting measurements before ordering.

Application and Buying Notes

Before buying, compare the replacement unit against the part number MXS2100 and the measured starter details: 12V, 9 teeth, CW rotation, 3 hole mount, and 221mm overall length. These are the main identifiers that separate one starter from another, even where the vehicle looks similar externally.

The mounting dimensions matter as much as the electrical rating. Confirm the 141mm, 91mm, and 81mm mount centres, the 88mm flange diameter, and the M12x1.5 mount hole diameter against the removed starter or service information. A mismatch in these measurements can prevent correct installation.

The pinion details are also important. This unit has a 30mm pinion diameter and 5mm pinion at rest, so the gear engagement must suit the application exactly. If the starter in the vehicle differs in tooth count, rotation, or mount pattern, do not assume interchange just because the unit is for a Mitsubishi application.

The OEX brand is stated to be sourced from market leading original equipment manufacturers and aftermarket suppliers, and from ISO certified factories. Even so, the correct purchase decision still depends on matching the listed measurements and application details to the vehicle currently being serviced.

Warranty coverage is listed as 3 years for passenger use and 1 year for commercial use. That warranty is useful context, but it does not replace fitment checking. Always confirm the starter style, the mounting pattern, and the Mitsubishi application before fitting the unit.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2100 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 141mm, Mount Centres C 81mm, Number of Teeth 9, Pinion at Rest 5mm, Rotation CW, Voltage 12, Starter Mount Type 3 Hole.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. MXS2100, Brand OEX, Description OEX Starter Motor 12V 9Th CW Mitsubishi Style, Flange Diameter 88mm, Mount Centres B 91mm, Mount Hole Diameter M12x1.5, Overall Length 221mm, Pinion Diameter 30mm.

OEX Starter Motor 12V 9Th CW Mitsubishi Style. Part number MXS2100 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2100, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm compatibility using part number MXS2100, the Mitsubishi-style application, and the listed measurements and rotation before purchase. Do not rely on the vehicle name alone; match the starter against the removed unit or verified application details.

FAQ

What is the part number for this starter motor?

The listed part number is MXS2100. For this listing, part number MXS2100 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA 3, MAZDA 3 2009, MAZDA 3 2010. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number MXS2100 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA 3, MAZDA 3 2009, MAZDA 3 2010. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number MXS2100 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA 3, MAZDA 3 2009, MAZDA 3 2010. These details should still be checked against the original unit before ordering.

What rotation does this starter motor use?

The rotation is clockwise (CW). For this listing, part number MXS2100 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA 3, MAZDA 3 2009, MAZDA 3 2010. These details should still be checked against the original unit before ordering.

What vehicle make is this starter motor suited to?

It is listed as suiting Mitsubishi unit make applications. No specific model or year range is confirmed in the supplied information. For this listing, part number MXS2100 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA 3, MAZDA 3 2009, MAZDA 3 2010. These details should still be checked against the original unit before ordering.

What warranty is listed for this starter motor?

The listed warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number MXS2100 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA 3, MAZDA 3 2009, MAZDA 3 2010. These details should still be checked against the original unit before ordering.
