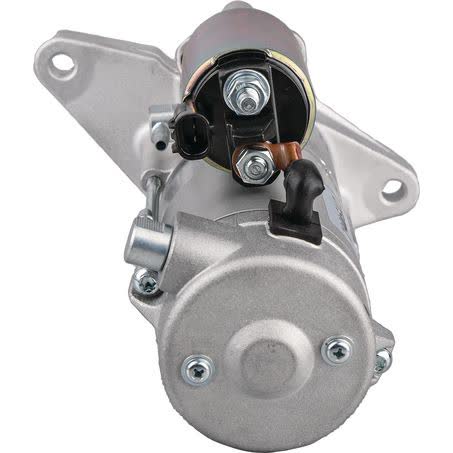

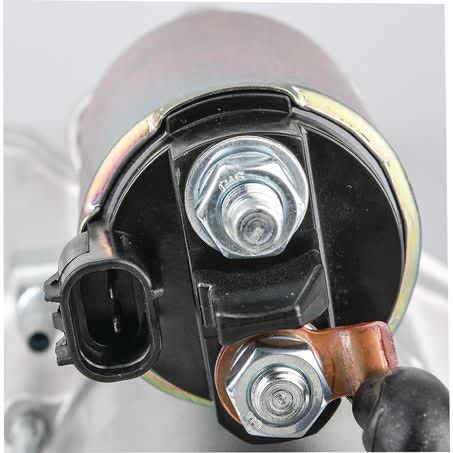

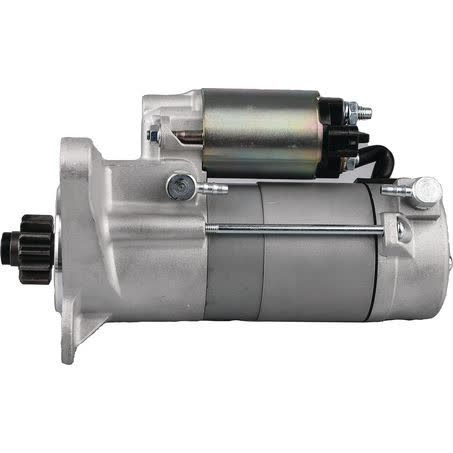

OEX Starter Motor 12V 13 Tooth CW Denso Style DXS4062

The OEX DXS4062 starter motor is a new 12V unit with 13 teeth and clockwise rotation, built in a Denso style and suited to Denso applications. It is listed with a 2 hole starter mount, 165mm mount centres, a 70mm flange diameter, and an overall length of 247mm, so the physical mounting details can be checked before purchase.

This unit carries a pinion at rest measurement of 24mm, a pinion diameter of 38.5mm, and a mount hole diameter of 11mm. Those measurements are important when matching the starter to the vehicle and the existing mounting arrangement, especially where the original part needs to line up exactly with the bellhousing and mounting points.

The note supplied with this part is specific: it is for vehicles with start-stop function and automatic transmission only, and for manual transmission use DXS4061. That makes the transmission type and start-stop system a key checkpoint before ordering, alongside the part number DXS4062 and the Denso unit make.

Key Features

• New starter motor
• 12V electrical system
• 13 tooth pinion
• Clockwise rotation
• Denso style application
• 2 hole starter mount

Specifications

• Brand: OEX
• Product type: Starter motor
• Part No.: DXS4062
• Voltage: 12V
• Number of teeth: 13
• Rotation: CW
• New / Reman.: New
• Suits unit make: Denso

Fitment guidance

• LAND ROVER: DISCOVERY SPORT, DISCOVERY SPORT 2014, DISCOVERY SPORT 2015, DISCOVERY SPORT 2016, DISCOVERY SPORT 2017, plus other listed applications

Application and Buying Notes

Before ordering, confirm the vehicle uses a Denso-style starter and that the existing unit matches the 12V, 13 tooth, clockwise configuration. The important physical checks here are the 2 hole mount, 165mm mount centres, 70mm flange diameter, 11mm mount holes, and 247mm overall length, because a starter can look similar but still be wrong at the mounting face.

The supplied note matters: this starter is for vehicles with start-stop function and automatic transmission only. If the vehicle is manual transmission, the listed alternative is DXS4061 rather than DXS4062. That transmission detail is not a minor point; it is part of the intended application for this starter motor.

For an accurate match, compare the part number on the existing unit, the rotation direction, the tooth count, and the pinion measurements against the old starter before fitting. Weight is listed at 4.62kg, which can also be useful when comparing with the removed part, but the part number and mounting dimensions should carry the most weight in the decision.

The warranty is listed as 3 years for passenger use and 1 year for commercial use. That is useful context, but it does not replace a proper fitment check. When in doubt, confirm the starter by application details and the current vehicle configuration rather than relying on appearance alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS4062 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 165mm, Number of Teeth 13, Pinion at Rest 24mm, Rotation CW, Voltage 12, New / Reman. New, Weight 4.62kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. DXS4062, Brand OEX, Description OEX Starter Motor 12V 13Th CW Denso Style - See Note, Flange Diameter 70mm, Mount Hole Diameter 11, Overall Length 247mm, Pinion Diameter 38.5mm, Suits Unit Make Denso, Note For vehicles with start-stop function - Automatic transmission only. for manual transmission use DXS4061.

OEX Starter Motor 12V 13Th CW Denso Style - See Note. Part number DXS4062 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS4062, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include LAND ROVER DISCOVERY SPORT, LAND ROVER DISCOVERY SPORT 2014, LAND ROVER DISCOVERY SPORT 2015, LAND ROVER DISCOVERY SPORT 2016. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment using the part number DXS4062, the Denso-style application, the 12V 13 tooth clockwise specification, and the automatic transmission with start-stop note before ordering. If the vehicle is manual transmission, the listed alternative is DXS4061.

FAQ

What type of starter motor is this?

It is an OEX new starter motor for a 12V system. The listed part number is DXS4062, and it is described as Denso style with a 13 tooth, clockwise configuration.

Is this starter motor new or reconditioned?

It is listed as new, not remanufactured.

What vehicles does it suit?

The supplied note says it is for vehicles with start-stop function and automatic transmission only. For manual transmission, DXS4061 is listed instead.

What are the key mounting dimensions?

The key mounting details listed are 2 hole starter mount, 165mm mount centres, 70mm flange diameter, and 11mm mount hole diameter. Overall length is 247mm.

What warranty is listed?

The warranty listed is 3 years for passenger use and 1 year for commercial use.

What should I check before buying?

Check the part number DXS4062, the Denso style application, 12V voltage, 13 tooth count, clockwise rotation, and the automatic transmission with start-stop note. Comparing the existing starter’s mounting measurements is also important.
