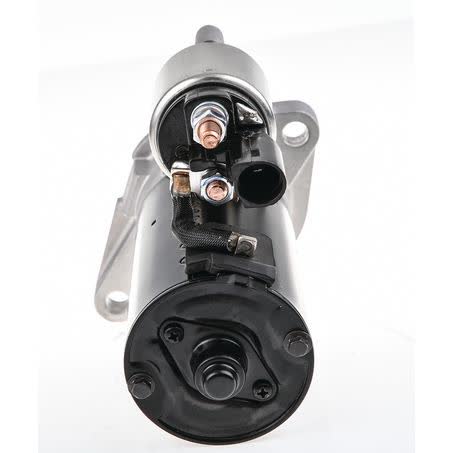

OEX Starter Motor 12V 13 Tooth CCW Bosch Style BXS0195

The OEX Starter Motor BXS0195 is a 12V starter motor with 13 teeth, CCW rotation, and a Bosch suitment style. It is a new unit, built with a 2.2kW power rating and a 3 hole starter mount type, so the physical layout and electrical specification need to match the vehicle application before purchase.

Key dimensions include 127mm mount centres A, 111mm mount centres B, 18mm mount centres C, a 79mm flange diameter, and a 247mm overall length. The pinion measures 34mm in diameter and sits 52mm at rest, which are the kinds of checks that matter when comparing a replacement starter to the one already fitted.

This starter is noted for vehicles with start-stop function and is listed with a 3 year passenger and 1 year commercial warranty. The OEX brand is supplied through market leading OEM and aftermarket sources, with ISO9001 certified factory support behind its engineering and quality control processes.

Key Features

• 12V starter motor
• 13 tooth pinion
• CCW rotation
• Bosch suitment style
• 2.2kW power rating
• New unit

Specifications

• Part number: BXS0195
• Brand: OEX
• Product type: Starter Motor
• Voltage: 12V
• Rotation: CCW
• Number of teeth: 13
• Power rating: 2.2kW
• Mount type: 3 hole

Fitment guidance

• Verified fitment references include Audi A1, Audi A3, Audi Q2, Skoda Roomster, Volkswagen Caddy, Volkswagen Golf, Volkswagen Multivan, Volkswagen Polo, Volkswagen Transporter, Volkswagen Transporter / Caravelle, and Volkswagen Transporter T6 / Caravelle.
• Fitment data provided includes application listings across multiple model years for Audi A1, Audi A3, Skoda Roomster, Volkswagen Caddy, and Volkswagen Golf.
• Use the part number BXS0195 and the physical measurements to confirm match before ordering.
• Check that the vehicle uses a Bosch style starter, 12V system, CCW rotation, 13 tooth pinion, and 3 hole mount arrangement.
• Confirm the mount centres, flange diameter, overall length, and pinion measurements against the existing unit if the old starter is available.

Application and Buying Notes

When replacing a starter motor, the most reliable check is matching the part number BXS0195 together with the physical dimensions: 127mm, 111mm, and 18mm mount centres, 79mm flange diameter, and 247mm overall length. Those measurements reduce the risk of choosing a starter that looks close but does not line up on the engine or bellhousing.

The 12V rating, 2.2kW output, CCW rotation, and 13 tooth pinion are all important because starter motors must match the vehicle’s electrical system and ring gear engagement. A starter with the wrong rotation or tooth count can bolt up incorrectly or fail to engage as intended.

This unit is listed as Bosch style and as suitable for vehicles with start-stop function. That makes application checking important, particularly where the original starter was specified for start-stop use or where the vehicle has had previous repairs and the fitted part may no longer match factory records.

The starter is new and weighs 3.9kg, with a 3 hole mount type and a 34mm pinion diameter. If the original unit is available, compare the mounting layout, pinion at rest measurement of 52mm, and the connector and housing arrangement before committing to the replacement.

Warranty cover is listed as 3 year passenger and 1 year commercial. That is useful context, but warranty does not confirm fitment, so the vehicle application and dimensions should still be checked carefully against the existing starter and the vehicle’s requirements.

If you are fitting to an Audi, Skoda, or Volkswagen application, make sure the model and year alignment is correct and that the installed starter matches the Bosch style, 12V system, and 13 tooth / CCW specification. Model families can share similar-looking parts while still differing in mount centres or pinion details.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS0195 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 127mm, Mount Centres C 18mm, Number of Teeth 13, Pinion at Rest 52mm, Power Rating 2.2kW, Suits Unit Make Bosch, Note for vehicles with start-stop function.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Product Group 2 STARTER MOTORS, Part No. BXS0195, Brand OEX, Description OEX Starter Motor 12V 13Th CCW Bosch Style, Flange Diameter 79mm, Mount Centres B 111mm, Mount Hole Diameter 12.5, Overall Length 247mm.

OEX Starter Motor 12V 13Th CCW Bosch Style. Part number BXS0195 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS0195, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Confirm fitment with part number BXS0195, the Bosch style application, and the listed dimensions and rotation before ordering. Do not rely on model name alone; check the vehicle’s existing starter and specification details.

FAQ

What is the part number for this starter motor?

The part number is BXS0195.

What voltage and rotation does this starter use?

It is a 12V starter motor with CCW rotation.

How many teeth does the pinion have?

The starter has 13 teeth.

Is this a new or remanufactured unit?

It is listed as a new starter motor.

What vehicles are referenced in the fitment data?

The provided fitment references include Audi A1, Audi A3, Audi Q2, Skoda Roomster, Volkswagen Caddy, Volkswagen Golf, Volkswagen Multivan, Volkswagen Polo, Volkswagen Transporter, Volkswagen Transporter / Caravelle, and Volkswagen Transporter T6 / Caravelle.

What should be checked before buying this starter?

Confirm part number BXS0195, 12V specification, CCW rotation, 13 tooth pinion, Bosch style suitment, 3 hole mount type, and the listed dimensions including 127mm, 111mm, 18mm mount centres, 79mm flange diameter, and 247mm overall length.
