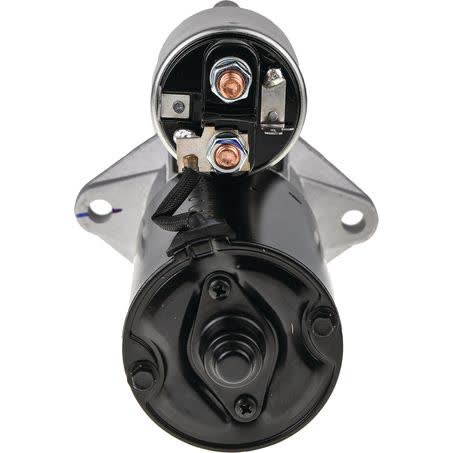

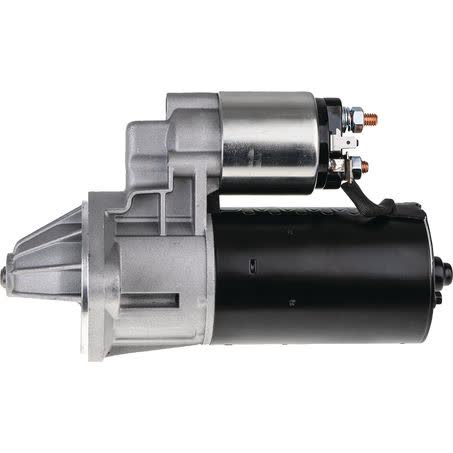

OEX Starter Motor 12V 9T CW Bosch Style BXS0104

The OEX Starter Motor BXS0104 is a 12V, 9-tooth, clockwise rotation unit in Bosch style, designed as a new starter motor for applications that match its mounting and drive dimensions. It is listed with a 1.5kW power rating, 2-hole starter mount type, 110mm mount centres A, and a 245mm overall length.

This unit suits Bosch applications and carries an 82mm flange diameter, 10mm mount hole diameter, 29mm pinion diameter, and a 10mm pinion at rest. Those measurements matter when you are comparing the starter to the original unit, especially where the housing, bolt pattern, or pinion position must match closely.

OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, with manufacture from ISO certified factories. The starter is backed by a 3-year warranty for passenger use and 1-year warranty for commercial use, which gives buyers a clear warranty basis when selecting the correct replacement part.

Key Features

• 12V Bosch style starter motor
• 9-tooth pinion
• Clockwise rotation
• New unit, not remanufactured
• 2-hole starter mount type
• 1.5kW power rating

Specifications

• Part No.: BXS0104
• Brand: OEX
• Product type: Starter Motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 9
• Power rating: 1.5kW
• Starter mount type: 2 hole

Fitment guidance

• Fits Bosch style starter applications only where the part number and physical dimensions match.
• The supplied fitment data includes multiple HOLDEN, NISSAN, HDT, HDT Brock, Calais, Commodore, H Series, Patrol, Skyline and Stagea applications.
• Model and year references appear in the fitment data, including Holden Calais, Commodore and H Series, and Nissan Patrol and Skyline ranges.
• Because starter fitment can vary by engine, transmission and build year, the part number BXS0104 and the measured dimensions should be checked against the existing starter before ordering.

Application and Buying Notes

Before buying, compare the old starter with BXS0104 in the key areas that most often determine fit: 12V voltage, 9 teeth, clockwise rotation, 2-hole mount type, 110mm mount centres, 82mm flange diameter and 245mm overall length. If any of those details differ, the unit may not suit the vehicle even if the brand or model appears similar.

The 29mm pinion diameter and 10mm pinion at rest are useful checkpoints when you are matching the drive end and clearance around the bellhousing. These measurements are particularly important on applications where the starter sits close to the clutch housing or other engine components.

This is a new starter motor with a 1.5kW rating, so it is intended as a direct replacement for an application that already uses this Bosch style specification. The 3-year passenger and 1-year commercial warranty provides coverage terms, but it does not replace the need to confirm the correct application before purchase.

If you are replacing a starter on a Holden or Nissan application listed in the fitment data, check the exact vehicle variant, build year and any existing part markings. Starter motor fitment can change within the same model line, so the safest match is always the original part number and the physical measurements against the removed unit.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS0104 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 110mm, Number of Teeth 9, Pinion at Rest 10mm, Power Rating 1.5kW, Suits Unit Make Bosch, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. BXS0104, Brand OEX, Description OEX Starter Motor 12V 9Th CW Bosch Style, Flange Diameter 82mm, Mount Hole Diameter 10, Overall Length 245mm, Pinion Diameter 29mm, Rotation CW.

OEX Starter Motor 12V 9Th CW Bosch Style. Part number BXS0104 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS0104, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HDT BROCK, HDT BROCK 1988, HOLDEN CALAIS, HOLDEN CALAIS 1986, HOLDEN CALAIS 1987, HOLDEN CALAIS 1988. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by checking part number BXS0104, Bosch style application details, 12V specification, 9-tooth clockwise configuration, and the listed mounting dimensions against the vehicle and the removed starter motor before ordering.

FAQ

Is this starter motor new or remanufactured?

This is a new starter motor, not a remanufactured unit.

What voltage is the OEX BXS0104 starter motor?

It is a 12V starter motor.

How many teeth does the pinion have?

The pinion has 9 teeth.

What rotation does this starter motor use?

It is clockwise rotation, listed as CW.

What warranty applies to this starter motor?

The listed warranty is 3 years for passenger use and 1 year for commercial use.

How should I confirm whether it will fit my vehicle?

Check the part number BXS0104 and match the key specifications, including 12V, 9 teeth, CW rotation, 2-hole mount type, 110mm mount centres, 82mm flange diameter and 245mm overall length, against the existing starter and vehicle application.
