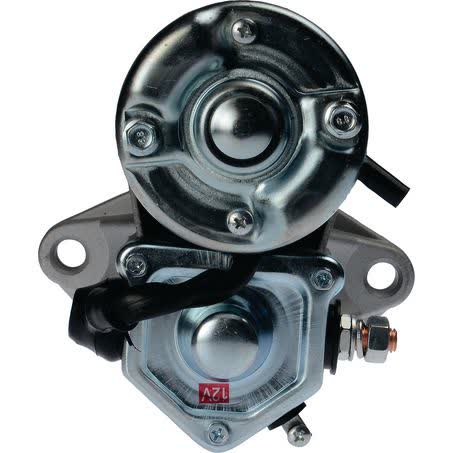

OEX Starter Motor 12V 12 Tooth CW Denso Style DXS435

The OEX DXS435 is a new 12V starter motor in Denso style, set up with 12 teeth, clockwise rotation and a 2.5kW power rating. It suits Denso applications and uses a 2 hole starter mount with a 90mm flange diameter, so the mounting pattern and overall dimensions need to line up with the original unit before purchase.

Key dimensions for checking are a 296mm overall length, 142mm mount centre-to-centre, 13mm mount hole diameter, 45mm pinion diameter and 16mm pinion at rest. The unit weighs 8.42kg, which can be useful when comparing it with the removed starter motor.

This starter motor is listed as interchangeable with the 11 tooth unit DXS576. That is useful for cross-checking, but the tooth count, mounting arrangement and physical dimensions still need to be matched carefully to the vehicle or equipment application.

OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, produced in ISO certified factories, and backed by a comprehensive nationwide warranty. Warranty cover for this item is 3 years for passenger use and 1 year for commercial use.

Key Features

• New starter motor
• 12V electrical system
• 12 tooth pinion
• Clockwise rotation
• Denso style unit
• 2 hole starter mount

Specifications

• Part number: DXS435
• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Power rating: 2.5kW
• Rotation: CW
• Number of teeth: 12
• Suits unit make: Denso

Known application groups supplied

• Toyota Land Cruiser applications are listed across model years 1990 through 2000.
• Yanmar 6LP applications are listed, including a 1980 reference.
• Fitment data is grouped to the application name provided, not to individual engine or chassis details beyond those supplied.

Application and Buying Notes

Before ordering, compare the part number DXS435 with the starter already fitted, then check the 12V rating, 12 tooth pinion, clockwise rotation and Denso style configuration. Those are the main identity checks on this unit, and they matter just as much as the overall size when confirming a replacement starter motor.

The mounting details are just as important as the electrical side. This unit has a 2 hole starter mount, 90mm flange diameter, 142mm mount centre-to-centre and 13mm mount holes, so even a close-looking starter can be wrong if the bolt pattern or flange size differs. The 296mm overall length and 45mm pinion diameter should also be compared against the removed part.

The note that this starter is interchangeable with the 11 tooth unit DXS576 can help when comparing superseded or related parts, but it should not be treated as a blanket fitment promise. Tooth count, pinion rest position and rotation need to remain correct for the application you are working on.

If you are fitting this to a Toyota Land Cruiser or Yanmar 6LP application, use the application listing together with the measurements above to confirm suitability. Where the original starter has been replaced before, the safest approach is to match the part number, physical dimensions and mounting pattern from the existing unit rather than relying on appearance alone.

For commercial use, the warranty listed is 1 year, while passenger use is covered for 3 years. Keep proof of purchase and record the part number DXS435 if you need to reference the warranty later, and make sure any installation issue is checked against the vehicle or equipment electrical system before installation is completed.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS435 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Hole Diameter 13, Overall Length 296mm, Pinion Diameter 45mm, Rotation CW, Voltage 12, Item Type Starter Motor, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. DXS435, Brand OEX, Description OEX Starter Motor 12V 12Th CW Denso Style, Flange Diameter 90mm, Number of Teeth 12, Pinion at Rest 16mm, Power Rating 2.5kW.

OEX Starter Motor 12V 12Th CW Denso Style. Part number DXS435 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS435, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include TOYOTA LAND CRUISER, TOYOTA LAND CRUISER 1990, TOYOTA LAND CRUISER 1991, TOYOTA LAND CRUISER 1992, YANMAR 6LP, YANMAR 6LP 1980. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment by matching part number DXS435, the 12V 12 tooth clockwise Denso style configuration, and the mounting and dimension details against your original starter before ordering.

FAQ

What is the part number for this starter motor?

The part number is DXS435.

Is this a new or remanufactured starter motor?

It is listed as new.

What voltage and rotation does it use?

It is a 12V starter motor with clockwise rotation.

What are the main mounting measurements?

It has a 2 hole starter mount, 90mm flange diameter, 142mm mount centre-to-centre and 13mm mount hole diameter.

What applications are listed for this starter motor?

The supplied application groups include Toyota Land Cruiser across 1990 to 2000 model years, and Yanmar 6LP, including a 1980 reference.

What warranty is listed for this product?

The listed warranty is 3 years for passenger use and 1 year for commercial use.
