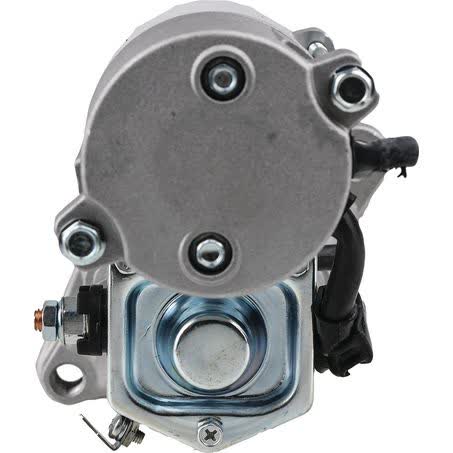

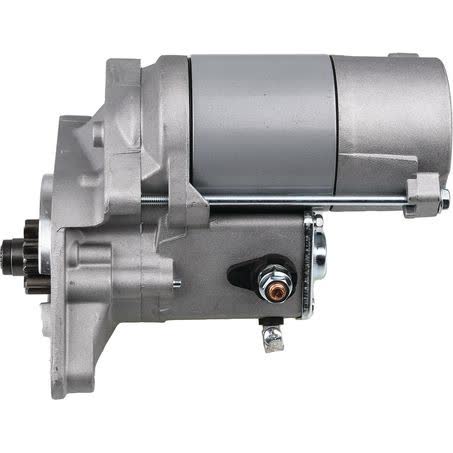

OEX Starter Motor 12V 10 Tooth CW Denso Style DXS464

The OEX DXS464 is a new 12V starter motor with 10 teeth, clockwise rotation and a Denso-style fitment profile. It is rated at 2kW and uses a 2 hole starter mount with 135mm mount centres, which are the key checks to compare before ordering.

This unit has an overall length of 220mm, an 82mm flange diameter and M12 / 13 mount holes. The pinion diameter is 38mm and the pinion at rest measures 16mm, so the physical dimensions can be checked against the existing starter before removal or replacement.

OEX lists this starter as suitable for Denso applications and notes that the 11 tooth unit DXS431 is not interchangeable. That point matters, because tooth count and drive configuration need to match the vehicle application, not just the general starter style.

Key Features

• 12V starter motor
• 10 tooth pinion
• Clockwise rotation
• Denso style unit
• 2kW power rating
• 2 hole starter mount

Specifications

• Brand: OEX
• Part number: DXS464
• Product type: Starter motor
• Voltage: 12V
• Power rating: 2kW
• Number of teeth: 10
• Rotation: CW
• Starter mount type: 2 hole

Checked application notes

• Toyota 4 Runner
• Toyota Blizzard
• Toyota Cressida
• Toyota Dyna
• Toyota Dyna 150
• Toyota Dyna 200
• Toyota Hiace
• Toyota Hilux

Application and Buying Notes

Before ordering, confirm the part number DXS464 against the starter already fitted to the vehicle. The important physical checks here are the 10 tooth drive, CW rotation, 12V system, 2 hole mount and 135mm mount centres, because those details must line up with the existing unit for a proper match.

The Denso-style description is useful as a starting point, but it is not enough on its own. The note supplied with this unit states that the 11 tooth DXS431 is not interchangeable, so tooth count should be treated as a hard check rather than an approximate guide.

Dimensions also matter on starters. This unit is listed at 220mm overall length with an 82mm flange diameter, M12 / 13 mount holes and a 38mm pinion diameter. If you are replacing a starter in a tight bellhousing or mounting area, these measurements are worth confirming before purchase.

The application list provided covers Toyota 4 Runner, Blizzard, Cressida, Dyna, Dyna 150, Dyna 200, Hiace, Hilux, Hilux Surf, Land Cruiser, Land Cruiser Prado and Toyoace. Those names give a useful direction, but the safest approach is still to match the part number, tooth count, rotation and mounting details against the vehicle and the removed starter.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS464 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 135mm, Number of Teeth 10, Pinion at Rest 16mm, Power Rating 2kW, Suits Unit Make Denso, Note 11 Tooth unit DXS431 ( Not Interchangeable), Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 4.74kg, Product Group 1 ROTATING ELECTRICAL, Part No. DXS464, Brand OEX, Description OEX Starter Motor 12V 10Th CW Denso Style, Flange Diameter 82mm, Mount Hole Diameter M12 / 13, Overall Length 220mm, Pinion Diameter 38mm, Rotation CW.

OEX Starter Motor 12V 10Th CW Denso Style. Part number DXS464 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS464, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include TOYOTA 4 RUNNER, TOYOTA 4 RUNNER 1988, TOYOTA 4 RUNNER 1989, TOYOTA 4 RUNNER 1990. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching part number DXS464, 12V electrical system, 10 tooth CW rotation, 2 hole mounting, 135mm mount centres and the vehicle application details before ordering.

FAQ

Is this starter motor new or remanufactured?

This OEX starter motor is listed as new. For this listing, part number DXS464 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA 4 RUNNER, TOYOTA 4 RUNNER 1988, TOYOTA 4 RUNNER 1989. These details should still be checked against the original unit before ordering.

What is the part number for this starter motor?

The part number is DXS464. For this listing, part number DXS464 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA 4 RUNNER, TOYOTA 4 RUNNER 1988, TOYOTA 4 RUNNER 1989. These details should still be checked against the original unit before ordering.

What voltage does this starter use?

It is a 12V starter motor. For this listing, part number DXS464 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA 4 RUNNER, TOYOTA 4 RUNNER 1988, TOYOTA 4 RUNNER 1989. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 10 teeth. For this listing, part number DXS464 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA 4 RUNNER, TOYOTA 4 RUNNER 1988, TOYOTA 4 RUNNER 1989. These details should still be checked against the original unit before ordering.

Is this a clockwise or counter-clockwise starter?

It is listed as clockwise rotation (CW). For this listing, part number DXS464 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA 4 RUNNER, TOYOTA 4 RUNNER 1988, TOYOTA 4 RUNNER 1989. These details should still be checked against the original unit before ordering.

What should I check before buying this starter?

Check the part number DXS464, the 10 tooth drive, CW rotation, 12V system, 2 hole mount, 135mm mount centres and the vehicle application details. OEX also notes that the 11 tooth DXS431 is not interchangeable. For this listing, part number DXS464 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA 4 RUNNER, TOYOTA 4 RUNNER 1988, TOYOTA 4 RUNNER 1989. These details should still be checked against the original unit before ordering.
