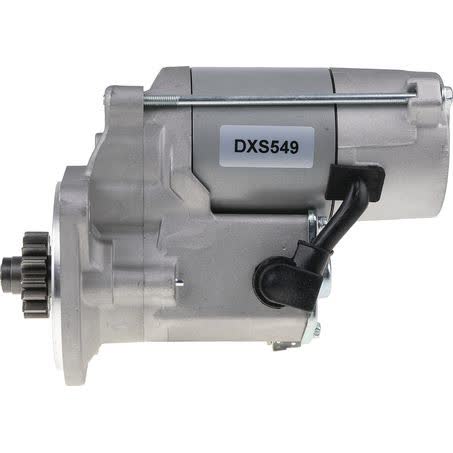

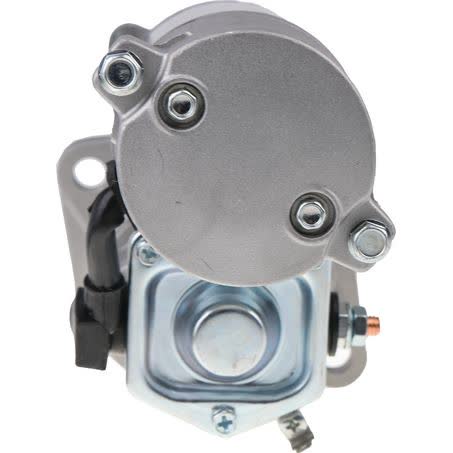

OEX Starter Motor 12V 15 Tooth CW Denso Style DXS549

The OEX Starter Motor DXS549 is a 12V, 15 tooth, clockwise rotating unit in Denso style. It is a new starter motor with a 2 hole mounting pattern, 120mm mount centres, a 95mm flange diameter and an overall length of 220mm.

Key fitment checks on this unit include 15 teeth, 22mm pinion at rest, 44mm pinion diameter, 13mm mount hole diameter and a 2.0kW power rating. It is listed for dry clutch applications and suits Denso starter units.

OEX backs this starter motor with a 3 year passenger warranty and 1 year commercial warranty. The brand notes included with the product state that OEX sources from market leading original equipment manufacturers and aftermarket suppliers, with products sourced from ISO certified factories.

For buyers comparing replacements, the part number is DXS549 and the description is OEX Starter Motor 12V 15Th CW Denso Style. Matching the electrical rating, rotation, tooth count and mounting dimensions is the practical way to confirm you have the correct unit before purchase.

Key Features

• 12V starter motor
• 15 tooth pinion
• Clockwise rotation
• 2.0kW power rating
• Denso style / suits Denso units
• New unit

Specifications

• Part No.: DXS549
• Brand: OEX
• Type: Starter motor
• Voltage: 12V
• Power Rating: 2.0kW
• Rotation: CW
• Number of Teeth: 15
• Pinion at Rest: 22mm

Fitment guidance

• Suits Denso starter units
• Reported application groups include AIRMAN, AMMANN, BLAW KNOX, CASE, FIORI, GEHL, HITACHI, HYUNDAI CONSTRUCTION, IHI, JOHN DEERE, KOBELCO, KOMATSU, LIUGONG, MULTIONE, MUSTANG, NEW HOLLAND, SUNWARD, TAKEUCHI, TEREX O&K, THERMO KING, THWAITES, TOYOTA INDUSTRIAL, WACKER NEUSON and YANMAR.
• Sample applications listed include AIRMAN AX48U-6A and AX55U-6A, CASE CX31B and CX33C, HITACHI ZX38U-5A and ZX40U-2, JOHN DEERE 110 TLB and 2032R, KOMATSU PC20-2 and PC30MR-5, NEW HOLLAND E50 and E55BX, TAKEUCHI TB025 and TB28FR, THERMO KING KD-II, THWAITES 3 TONNE and YANMAR 3TN84HL.

Application and Buying Notes

Before ordering, confirm the starter is a Denso style unit and check the part number DXS549 against the old starter or the machine’s parts listing. The key dimensions here are 12V, 15 teeth, CW rotation, 120mm mount centres and a 2 hole mount with 13mm mount holes.

The 2.0kW rating matters because starter output needs to suit the application, not just the bolt pattern. The pinion details are also important: this unit has a 22mm pinion at rest, a 44mm pinion diameter and is listed for dry clutch use.

Because starter motors can share similar housings while differing in rotation, tooth count or mounting dimensions, it is best to compare the old unit side by side where possible. The 95mm flange diameter and 220mm overall length are useful cross-checks when space and mount position are tight.

If the existing starter has been replaced before, rely on the physical dimensions and the DXS549 part number rather than the outer appearance alone. This is especially important on equipment families where several starter variants may be listed across similar models.

Warranty support is listed as 3 years for passenger use and 1 year for commercial use. That does not replace the need to verify fitment first, but it does give a clear ownership guide once the correct application is confirmed.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS549 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 120mm, Number of Teeth 15, Pinion at Rest 22mm, Power Rating 2.0kW, Suits Unit Make Denso, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. DXS549, Brand OEX, Description OEX Starter Motor 12V 15Th CW Denso Style, Flange Diameter 95mm, Mount Hole Diameter 13, Overall Length 220mm, Pinion Diameter 44mm, Rotation CW.

OEX Starter Motor 12V 15Th CW Denso Style. Part number DXS549 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS549, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include AIRMAN AX48U-6A, AIRMAN AX55U-6A, AIRMAN PDS185S, AMMANN ARX36, AMMANN ARX40, AMMANN ARX45. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm compatibility by matching part number DXS549, 12V, 15 tooth CW rotation, Denso style application, 2 hole mounting pattern, 120mm mount centres and the listed pinion and flange dimensions before ordering.

FAQ

What is the part number for this starter motor?

The part number is DXS549.

What voltage is this starter motor?

It is a 12V starter motor.

Is this starter motor clockwise or anti-clockwise?

It is clockwise rotation, listed as CW.

What tooth count does this starter have?

It has 15 teeth.

What type of application does it suit?

It is listed as Denso style and suits Denso starter units, with dry clutch application noted.

What warranty is listed?

The listed warranty is 3 years for passenger use and 1 year for commercial use.
