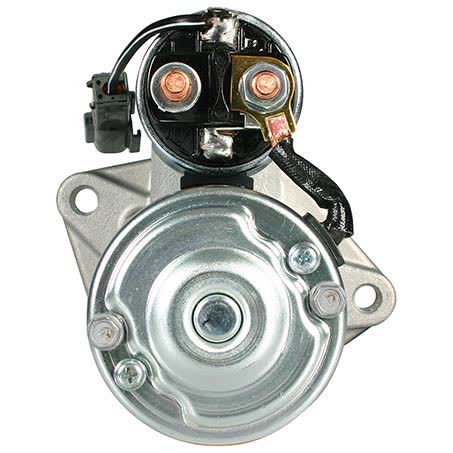

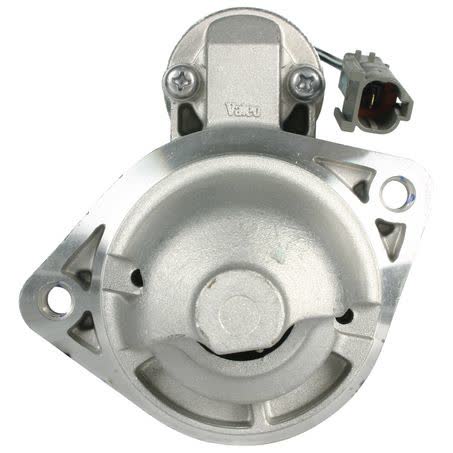

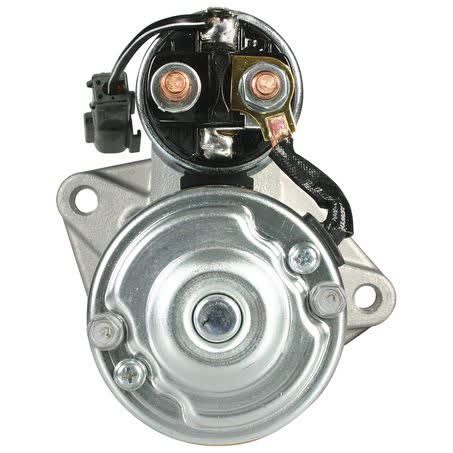

OEX Starter Motor 12V 8 Tooth CW Hitachi Style HXS069

The OEX Starter Motor HXS069 is a 12V unit with 8 teeth, clockwise rotation, and a Hitachi style fitment profile. It is a new starter motor, supplied as each, with a 1.2kW power rating and a two-hole starter mount type.

Key dimensions to check on the vehicle are the 106mm mount centres, 82mm flange diameter, M10x1.5 mount hole diameter, and 231mm overall length. The pinion measures 28mm in diameter, with the pinion at rest listed at 43mm.

This starter motor is listed for a dry clutch application and weighs 3.3kg. For buyers matching an existing starter, the part number HXS069 and the Hitachi unit make are the most useful identifiers to confirm before ordering.

Key Features

• 12V starter motor
• 8 tooth pinion
• Clockwise rotation
• Hitachi style unit
• New replacement starter
• 2 hole starter mount

Specifications

• Power rating: 1.2kW
• Mount centres A: 106mm
• Flange diameter: 82mm
• Mount hole diameter: M10x1.5
• Overall length: 231mm
• Pinion diameter: 28mm
• Pinion at rest: 43mm
• Weight: 3.3kg

Vehicle fitment notes

• Listed fitment includes Nissan 200SX across multiple model years.
• Listed fitment includes Nissan Bluebird, NX/NXR, Primera, Pulsar, Serena, and X-Trail.
• Listed fitment also includes UD Nissan Diesel and UD Nissan Diesel Condor applications.
• Because only the supplied fitment group is available here, confirm the vehicle application carefully against the part number HXS069 and the physical measurements before purchase.

Application and Buying Notes

When comparing this starter motor to the original unit, check the 12V system, 8 tooth pinion, clockwise rotation, and Hitachi style configuration first. The mount centres of 106mm, flange diameter of 82mm, and M10x1.5 mount holes are practical checks that help avoid a mismatch when the starter is being replaced.

The 1.2kW rating, 231mm overall length, and 3.3kg weight are also useful reference points when comparing the replacement against the unit already fitted to the vehicle. If the old starter differs in these dimensions, mount type, or pinion setup, it should be treated as a potential mismatch even if the vehicle name appears in the fitment list.

This starter is described as a new unit and is listed for dry clutch applications. That detail matters when you are replacing a starter in a vehicle where the original arrangement must be matched closely. It is always best to compare the part number HXS069, the starter make, and the installation measurements rather than relying on appearance alone.

Warranty coverage is listed as 3 years for passenger vehicles and 1 year for commercial use. That gives a clear commercial-use distinction, but it does not replace the need to confirm the application and the physical specifications before fitting.

For workshop or home fitting, confirm the starter mount type, tooth count, rotation direction, and pinion dimensions before removal of the old unit. These details are particularly important where multiple starter variants may exist across the same model range, including the Nissan and UD Nissan Diesel applications shown here.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number HXS069 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 106mm, Number of Teeth 8, Pinion at Rest 43mm, Power Rating 1.2kW, Suits Unit Make Hitachi, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. HXS069, Brand OEX, Description OEX Starter Motor 12V 8Th CW Hitachi Style, Flange Diameter 82mm, Mount Hole Diameter M10x1.5, Overall Length 231mm, Pinion Diameter 28mm, Rotation CW.

OEX Starter Motor 12V 8Th CW Hitachi Style. Part number HXS069 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number HXS069, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include NISSAN 200SX, NISSAN 200SX 1993, NISSAN 200SX 1994, NISSAN 200SX 1995, UD NISSAN DIESEL CONDOR, UD NISSAN DIESEL CONDOR 1995. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by matching part number HXS069, 12V voltage, 8 tooth count, clockwise rotation, Hitachi style, and the listed mounting dimensions against the vehicle and the existing starter before ordering.

FAQ

What is the part number for this starter motor?

The part number listed is HXS069.

What voltage is this starter motor?

It is a 12V starter motor.

How many teeth does the pinion have?

The pinion has 8 teeth.

What rotation does this starter use?

The rotation is clockwise, listed as CW.

What are the main mounting dimensions?

The listed mounting details are 106mm mount centres, 82mm flange diameter, M10x1.5 mount hole diameter, and a 2 hole starter mount type.

Which vehicles are listed in the fitment data?

The fitment list includes Nissan 200SX, Bluebird, NX/NXR, Primera, Pulsar, Serena, X-Trail, and UD Nissan Diesel Condor applications. Fitment should still be checked against the part number and physical measurements before purchase.
