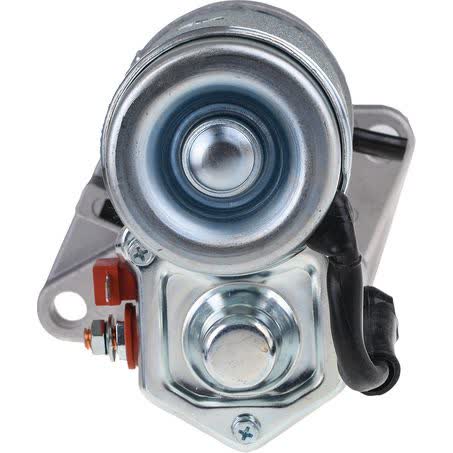

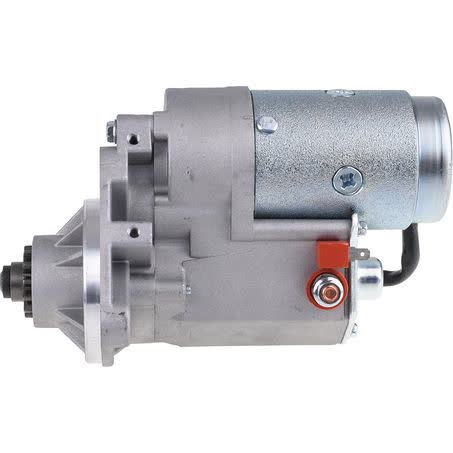

OEX Starter Motor 12V 13T CW Mitsubishi Style MXS211

The OEX Starter Motor MXS211 is a 12V unit with 13 teeth, clockwise rotation, and a 2.0kW power rating. It is listed as a new starter motor for Mitsubishi applications and uses a 3-hole starter mount with 133mm and 81mm mount centres, so the mounting pattern and electrical specifications should be checked carefully before purchase.

This starter motor has a 90mm flange diameter, M12x1.5 / 13 mount hole diameter, 39mm pinion diameter, and 41mm pinion at rest. Those dimensions are useful when comparing against the original starter on the vehicle, particularly where access is tight or the engine bay has limited clearance.

OEX states that its products are sourced from market leading Original Equipment Manufacturers and aftermarket suppliers, and that they are sourced from ISO certified factories. The unit is backed by a 3yr passenger / 1yr commercial warranty, which gives buyers a clear warranty position for a 5.36kg starter motor sold each.

Key Features

• 12V starter motor with clockwise rotation
• 13-tooth pinion
• 2.0kW power rating
• New unit, not remanufactured
• 3-hole starter mount
• Mitsubishi style application

Specifications

• Brand: OEX
• Part No.: MXS211
• Product Type: Starter Motor
• Voltage: 12V
• Rotation: CW
• Number of Teeth: 13
• Power Rating: 2.0kW
• Starter Mount Type: 3 Hole

Fitment guidance

• Listed for Mitsubishi applications
• Fitment data also references Ford Courier, Ford Econovan, Kia Ceres, Mazda B-Series, Mazda Bongo Brawny, and Mazda E-Series models and years in the supplied application data
• Use the part number MXS211 and the starter dimensions to confirm application before ordering

Application and Buying Notes

Starter motors need a precise match on voltage, rotation, tooth count, and mounting layout. For this unit, the key checks are 12V, clockwise rotation, 13 teeth, 3-hole mounting, and the mount centres of 133mm, 85mm, and 81mm. If any of those differ from the starter being removed, do not assume it will install correctly.

The 90mm flange diameter, 240mm overall length, 39mm pinion diameter, and 41mm pinion at rest are useful when comparing physical fit. These measurements can matter where the bellhousing area, nose length, or pinion engagement position needs to line up exactly with the engine and transmission housing.

Part number matching is the safest buying checkpoint here. If you are replacing an existing Mitsubishi-style starter, compare the original tag or housing markings against MXS211, then confirm the tooth count, rotation, and mount hole specification M12x1.5 / 13. That is the most reliable way to avoid a mismatch when choosing between similar-looking starters.

This unit is listed as suitable for dry clutch use and supplied new. At 5.36kg, it is a substantial rotating electrical component, so confirm the starter is intended for the same mounting style and application family before fitting. If the vehicle has been modified, or if a previous repair has changed the starter type, the part number and dimensions should be checked against the vehicle rather than relying on appearance alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS211 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 133mm, Mount Centres C 81mm, Number of Teeth 13, Pinion at Rest 41mm, Power Rating 2.0kW, Suits Unit Make Mitsubishi, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. MXS211, Brand OEX, Description OEX Starter Motor 12V 13Th CW Mitsubishi Style, Flange Diameter 90mm, Mount Centres B 85mm, Mount Hole Diameter M12x1.5 / 13, Overall Length 240mm.

OEX Starter Motor 12V 13Th CW Mitsubishi Style. Part number MXS211 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS211, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD COURIER, FORD COURIER 1981, FORD COURIER 1982, FORD COURIER 1983, KIA CERES, KIA CERES 1992. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by matching part number MXS211, 12V clockwise operation, 13 teeth, 3-hole mounting, and the stated mount-centre and flange measurements to the original starter and vehicle application details before ordering.

FAQ

Is this starter motor new or remanufactured?

It is listed as new, not remanufactured. For this listing, part number MXS211 is the main reference point. Listed voltage is 12. Published fitment references include FORD COURIER, FORD COURIER 1981, FORD COURIER 1982. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

This starter motor is 12V. For this listing, part number MXS211 is the main reference point. Listed voltage is 12. Published fitment references include FORD COURIER, FORD COURIER 1981, FORD COURIER 1982. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The starter is listed with 13 teeth. For this listing, part number MXS211 is the main reference point. Listed voltage is 12. Published fitment references include FORD COURIER, FORD COURIER 1981, FORD COURIER 1982. These details should still be checked against the original unit before ordering.

What rotation does this starter motor use?

It is clockwise rotation, shown as CW. For this listing, part number MXS211 is the main reference point. Listed voltage is 12. Published fitment references include FORD COURIER, FORD COURIER 1981, FORD COURIER 1982. These details should still be checked against the original unit before ordering.

What part number should I compare against?

The part number is MXS211. For this listing, part number MXS211 is the main reference point. Listed voltage is 12. Published fitment references include FORD COURIER, FORD COURIER 1981, FORD COURIER 1982. These details should still be checked against the original unit before ordering.

What warranty is listed?

The listed warranty is 3yr passenger and 1yr commercial. For this listing, part number MXS211 is the main reference point. Listed voltage is 12. Published fitment references include FORD COURIER, FORD COURIER 1981, FORD COURIER 1982. These details should still be checked against the original unit before ordering.
