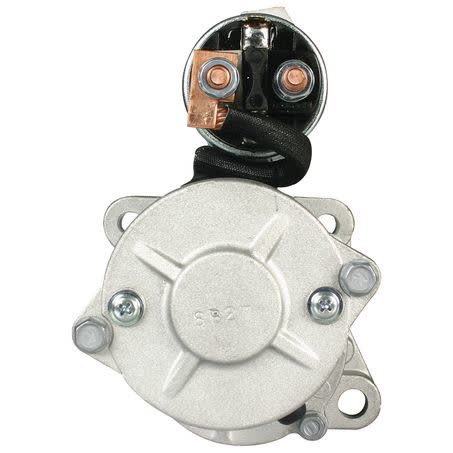

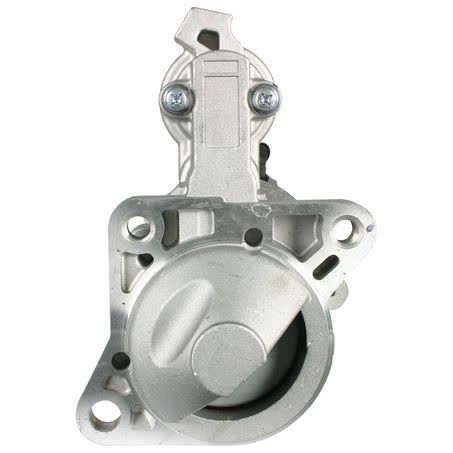

OEX Starter Motor 12V 10T CW Mitsubishi Style MXS221

The OEX Starter Motor MXS221 is a new 12V starter motor in Mitsubishi style, with a 10 tooth pinion, clockwise rotation, and a 2.2kW power rating. It is listed as a 3 hole starter mount type and suits Mitsubishi applications, with a flange diameter of 88mm and a dry clutch design.

Key dimensions for checking replacement suitability include 130mm mount centres A, 89mm mount centres B, 82mm mount centres C, a 39mm nose cone length, and an overall length of 230mm. The mount hole diameter is M10 / 13, the pinion diameter is 32mm, and the pinion at rest is 6mm.

This unit is supplied as a new starter motor and weighs 5.6kg. OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, made in ISO certified factories, and backed by a nationwide warranty. The warranty listed for this unit is 3 years for passenger use and 1 year for commercial use.

Key Features

• New 12V starter motor
• 10 tooth pinion
• Clockwise rotation
• 2.2kW power rating
• 3 hole starter mount
• Dry clutch design

Specifications

• Part No.: MXS221
• Brand: OEX
• Product type: Starter Motor
• Voltage: 12V
• Number of teeth: 10
• Rotation: CW
• Power rating: 2.2kW
• New / remanufactured: New

Verified fitment applications

• Mitsubishi applications
• Mitsubishi Industrial forklifts
• Ford Courier applications
• Ford Econovan applications
• Ford Telstar applications
• Mazda 626 applications
• Mazda B-Series applications
• Asia Motors Rocsta applications

Application and Buying Notes

Before ordering, match the part number MXS221, the 12V electrical specification, the 10 tooth pinion, and the clockwise rotation against the unit being replaced. The starter mount type is 3 hole, and the listed dimensions include 130mm mount centres A, 89mm mount centres B, 82mm mount centres C, and an 88mm flange diameter, so those points should be checked carefully.

The 39mm nose cone length, 230mm overall length, 32mm pinion diameter, and M10 / 13 mount hole diameter are useful when confirming the replacement starter is physically the same as the original. The pinion at rest is 6mm, which can also help when comparing the old unit on the bench before installation.

This starter is listed with Mitsubishi suitability, but the fitment data also references several other application groups including Ford Courier, Ford Econovan, Ford Telstar, Mazda 626, Mazda B-Series, Asia Motors Rocsta, and Mitsubishi Industrial forklifts. Those application names should be treated as a guide only, because the exact engine, model year, and equipment variant still need to be checked against the part number and dimensions.

The unit is marked dry clutch and new, with a 2.2kW power rating and a 5.6kg weight. Those details matter when comparing like-for-like replacements, especially where previous repairs, non-standard parts, or mixed production ranges may have changed the starter fitted to the vehicle or machine.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS221 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 130mm, Mount Centres C 82mm, Nose Cone Length 39mm, Overall Length 230mm, Pinion Diameter 32mm, Rotation CW, Voltage 12.

Additional published details for cross-checking include New / Reman. New, Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. MXS221, Brand OEX, Description OEX Starter Motor 12V 10Th CW Mitsubishi Style, Flange Diameter 88mm, Mount Centres B 89mm, Mount Hole Diameter M10 / 13.

OEX Starter Motor 12V 10Th CW Mitsubishi Style. Part number MXS221 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS221, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include ASIA MOTORS ROCSTA, ASIA MOTORS ROCSTA 1993, ASIA MOTORS ROCSTA 1994, ASIA MOTORS ROCSTA 1995, FORD COURIER, FORD COURIER 1985. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using the MXS221 part number, 12V rating, 10 tooth CW configuration, 3 hole mount type, and the listed dimensions before ordering. Vehicle and equipment applications should always be checked against the exact original starter fitted.

FAQ

What is the part number for this starter motor?

The part number is MXS221. For this listing, part number MXS221 is the main reference point. Listed voltage is 12. Published fitment references include ASIA MOTORS ROCSTA, ASIA MOTORS ROCSTA 1993, ASIA MOTORS ROCSTA 1994. These details should still be checked against the original unit before ordering.

What voltage does this starter motor use?

It is a 12V starter motor. For this listing, part number MXS221 is the main reference point. Listed voltage is 12. Published fitment references include ASIA MOTORS ROCSTA, ASIA MOTORS ROCSTA 1993, ASIA MOTORS ROCSTA 1994. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 10 teeth. For this listing, part number MXS221 is the main reference point. Listed voltage is 12. Published fitment references include ASIA MOTORS ROCSTA, ASIA MOTORS ROCSTA 1993, ASIA MOTORS ROCSTA 1994. These details should still be checked against the original unit before ordering.

What rotation direction is listed?

The starter motor is listed as clockwise (CW) rotation. For this listing, part number MXS221 is the main reference point. Listed voltage is 12. Published fitment references include ASIA MOTORS ROCSTA, ASIA MOTORS ROCSTA 1993, ASIA MOTORS ROCSTA 1994. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new, not remanufactured. For this listing, part number MXS221 is the main reference point. Listed voltage is 12. Published fitment references include ASIA MOTORS ROCSTA, ASIA MOTORS ROCSTA 1993, ASIA MOTORS ROCSTA 1994. These details should still be checked against the original unit before ordering.

What warranty is listed for this unit?

The listed warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number MXS221 is the main reference point. Listed voltage is 12. Published fitment references include ASIA MOTORS ROCSTA, ASIA MOTORS ROCSTA 1993, ASIA MOTORS ROCSTA 1994. These details should still be checked against the original unit before ordering.
