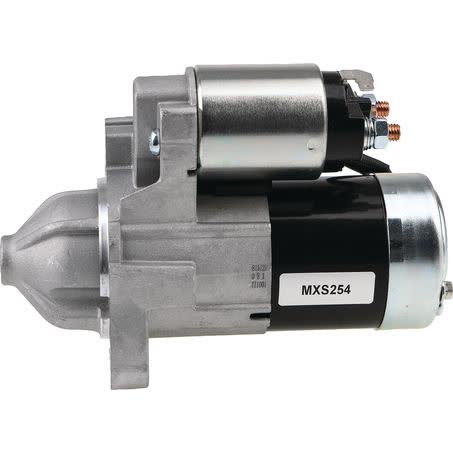

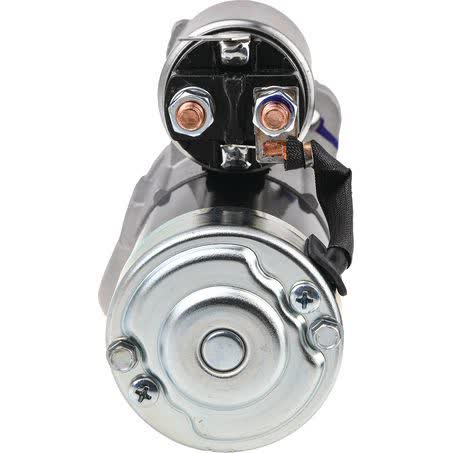

OEX Starter Motor 12V 8TH CW Mitsubishi Style MXS254

The OEX Starter Motor MXS254 is a 12V unit with 8 teeth, clockwise rotation, and a 1.4kW power rating. It is listed as a Mitsubishi style starter motor with a 2-hole starter mount type, 98mm mount centres, and a 73mm flange diameter.

Key dimensions include an overall length of 201mm, a 28mm pinion diameter, a 11mm pinion at rest, and M10x1.25 mount hole diameter. At 2.92kg, it is a new starter motor sold individually as each.

This starter motor is specified for Mitsubishi applications and the fitment list also includes selected Hyundai Sonata applications. Because starter motors are dimension-sensitive, the 8-tooth drive, CW rotation, and mount details should all be checked against the vehicle and the removed unit before purchase.

Key Features

• 12V starter motor
• 8 tooth pinion
• Clockwise rotation
• 1.4kW power rating
• New unit
• 2-hole starter mount

Specifications

• Brand: OEX
• Part No.: MXS254
• Product type: Starter motor
• Voltage: 12V
• Power rating: 1.4kW
• Rotation: CW
• Number of teeth: 8
• Starter mount type: 2 hole

Vehicle fitment guidance

• Mitsubishi applications are listed for this starter motor
• Hyundai Sonata applications are also listed
• Fitment data includes multiple Mitsubishi models and year ranges
• Confirm against the part number MXS254 and the removed starter before ordering

Application and Buying Notes

When replacing a starter motor, the safest check is the part number and the physical match. For this unit, the important identifiers are MXS254, 12V, 8 teeth, CW rotation, 2-hole mount, and 98mm mount centres. If any of those details differ from the existing starter, the part may not suit the vehicle.

The mounting and drive details matter as much as the electrical rating. This starter is listed with a 73mm flange diameter, M10x1.25 mount hole diameter, 201mm overall length, and a 28mm pinion diameter with 11mm pinion at rest. Those measurements are the best guide when comparing to the original starter or checking available space around the bellhousing.

The unit is new and rated at 1.4kW, with a dry clutch application noted in the specifications. It is backed by a 3yr Passenger and 1yr Commercial warranty, but warranty coverage does not replace the need to verify compatibility before fitting. If the vehicle has been modified, or if the existing starter has been replaced previously, compare the old unit carefully rather than relying on model name alone.

The fitment listing includes Mitsubishi and Hyundai Sonata applications, but starter motor listings often vary by engine, transmission, and build date. Use the vehicle application details only as a guide and confirm the match using the part number, tooth count, rotation direction, mount style, and dimensions supplied here.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS254 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 98mm, Number of Teeth 8, Pinion at Rest 11mm, Power Rating 1.4kW, Suits Unit Make Mitsubishi, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. MXS254, Brand OEX, Description OEX Starter Motor 12V 8Th CW Mitsubishi Style, Flange Diameter 73mm, Mount Hole Diameter M10x1.25, Overall Length 201mm, Pinion Diameter 28mm, Rotation CW.

OEX Starter Motor 12V 8Th CW Mitsubishi Style. Part number MXS254 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS254, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HYUNDAI SONATA, HYUNDAI SONATA 1990, HYUNDAI SONATA 1991, HYUNDAI SONATA 1992, MITSUBISHI 3000 GT, MITSUBISHI 3000 GT 1992. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment using part number MXS254, the 12V 8-tooth CW specification, and the mounting and dimensional details before ordering. Vehicle model names are only a guide and should be checked against the original starter on the vehicle.

FAQ

What is the part number for this starter motor?

The part number is MXS254. For this listing, part number MXS254 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI SONATA, HYUNDAI SONATA 1990, HYUNDAI SONATA 1991. These details should still be checked against the original unit before ordering.

What voltage is the OEX starter motor?

It is a 12V starter motor. For this listing, part number MXS254 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI SONATA, HYUNDAI SONATA 1990, HYUNDAI SONATA 1991. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 8 teeth. For this listing, part number MXS254 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI SONATA, HYUNDAI SONATA 1990, HYUNDAI SONATA 1991. These details should still be checked against the original unit before ordering.

What direction does it rotate?

It is specified as clockwise rotation, or CW. For this listing, part number MXS254 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI SONATA, HYUNDAI SONATA 1990, HYUNDAI SONATA 1991. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number MXS254 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI SONATA, HYUNDAI SONATA 1990, HYUNDAI SONATA 1991. These details should still be checked against the original unit before ordering.

What warranty is listed for this starter motor?

The warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number MXS254 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI SONATA, HYUNDAI SONATA 1990, HYUNDAI SONATA 1991. These details should still be checked against the original unit before ordering.
