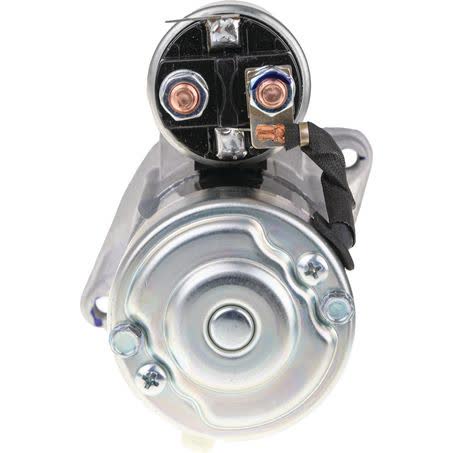

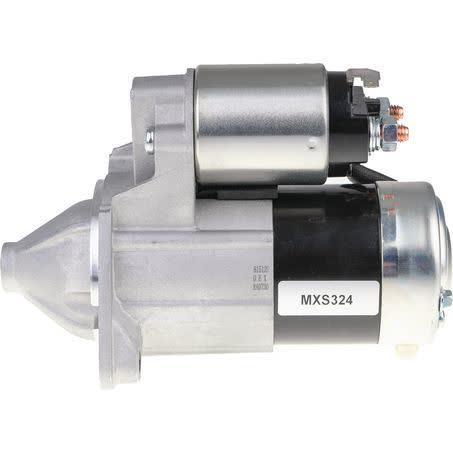

OEX Starter Motor 12V 8TH CW Mitsubishi Style MXS324

The OEX Starter Motor MXS324 is a new 12V starter motor with an 8-tooth pinion, clockwise rotation, and a .9kW power rating. It is listed as Mitsubishi style and suits Mitsubishi applications where the mounting and pinion details match, including a 2-hole starter mount, 105mm mount centres, and M10x1.25 mount holes.

Key dimensions on this unit include a 77mm flange diameter, 195mm overall length, 28mm pinion diameter, and 9mm pinion at rest. The starter weighs 2.8kg and is supplied as a new unit, not remanufactured, which makes it a straightforward replacement where the existing starter matches these measurements and layout.

OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, with production from ISO certified factories. This starter motor is backed by a 3-year passenger warranty and 1-year commercial warranty, so it is important to confirm the part number MXS324 and the application details before ordering.

Key Features

• 12V starter motor
• 8-tooth pinion
• Clockwise rotation
• Mitsubishi style application
• New unit, not remanufactured
• 2-hole starter mount

Specifications

• Part No.: MXS324
• Brand: OEX
• Type: Starter motor
• Voltage: 12V
• Power rating: .9kW
• Rotation: CW
• Number of teeth: 8
• Mount centres A: 105mm

Fitment guidance

• Listed for Mitsubishi applications
• Fitment references include Mitsubishi Colt, Mitsubishi Lancer, Mitsubishi Mirage, Mitsubishi Outlander, and Mitsubishi Pajero IO
• Mitsubishi Colt applications are referenced across multiple model years in the provided fitment data
• Confirm the existing starter’s 12V rating, 8-tooth pinion, CW rotation, and 2-hole mounting pattern before ordering

Application and Buying Notes

This starter motor should only be ordered after checking the part number MXS324 against the vehicle’s existing starter and application details. The key matching points here are 12V operation, 8 teeth, clockwise rotation, 105mm mount centres, and a 2-hole mount with M10x1.25 holes.

The physical dimensions matter as much as the electrical rating. A 77mm flange diameter, 195mm overall length, 28mm pinion diameter, and 9mm pinion at rest all need to align with the unit being replaced, especially on Mitsubishi applications where starter layouts can differ between models and variants.

Although the fitment data points to Mitsubishi Colt, Lancer, Mirage, Outlander, and Pajero IO applications, that information is not a substitute for checking the vehicle against the starter already fitted. The safest approach is to compare the old unit’s tooth count, rotation, mount style, and measurements before purchase.

The warranty differs by vehicle use: 3 years for passenger use and 1 year for commercial use. If the starter is being fitted to a commercial vehicle or used in a harsher duty cycle, confirm the warranty terms before installation and keep the purchase details with the job card.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS324 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 105mm, Number of Teeth 8, Pinion at Rest 9mm, Power Rating .9kW, Suits Unit Make Mitsubishi, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. MXS324, Brand OEX, Description OEX Starter Motor 12V 8Th CW Mitsubishi Style, Flange Diameter 77mm, Mount Hole Diameter M10x1.25, Overall Length 195mm, Pinion Diameter 28mm, Rotation CW.

OEX Starter Motor 12V 8Th CW Mitsubishi Style. Part number MXS324 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS324, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include MITSUBISHI COLT, MITSUBISHI COLT 2004, MITSUBISHI COLT 2005, MITSUBISHI COLT 2006. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by matching part number MXS324, 12V electrical specification, 8-tooth CW layout, and the stated mounting and dimensional details against the vehicle and the existing starter before ordering.

FAQ

What vehicle makes does this starter motor suit?

It is listed for Mitsubishi applications. The fitment data references Mitsubishi Colt, Mitsubishi Lancer, Mitsubishi Mirage, Mitsubishi Outlander, and Mitsubishi Pajero IO. For this listing, part number MXS324 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI COLT, MITSUBISHI COLT 2004, MITSUBISHI COLT 2005. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

This unit is listed as new, not remanufactured. For this listing, part number MXS324 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI COLT, MITSUBISHI COLT 2004, MITSUBISHI COLT 2005. These details should still be checked against the original unit before ordering.

What are the main electrical specifications?

The main electrical specification is 12V with a .9kW power rating. For this listing, part number MXS324 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI COLT, MITSUBISHI COLT 2004, MITSUBISHI COLT 2005. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

It has an 8-tooth pinion. For this listing, part number MXS324 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI COLT, MITSUBISHI COLT 2004, MITSUBISHI COLT 2005. These details should still be checked against the original unit before ordering.

What mounting details should be checked before buying?

Check the 2-hole starter mount, 105mm mount centres, and M10x1.25 mount hole diameter, along with the 77mm flange diameter and 195mm overall length. For this listing, part number MXS324 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI COLT, MITSUBISHI COLT 2004, MITSUBISHI COLT 2005. These details should still be checked against the original unit before ordering.

What warranty is provided?

The warranty is listed as 3 years for passenger use and 1 year for commercial use. For this listing, part number MXS324 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI COLT, MITSUBISHI COLT 2004, MITSUBISHI COLT 2005. These details should still be checked against the original unit before ordering.
