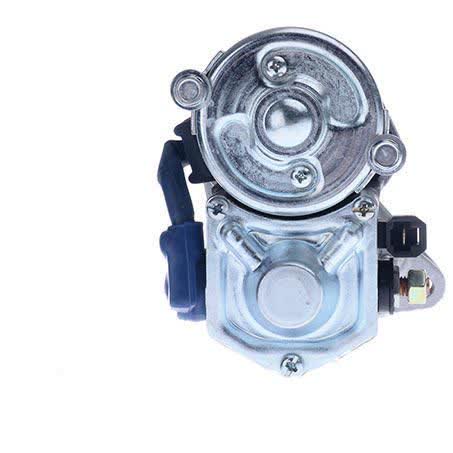

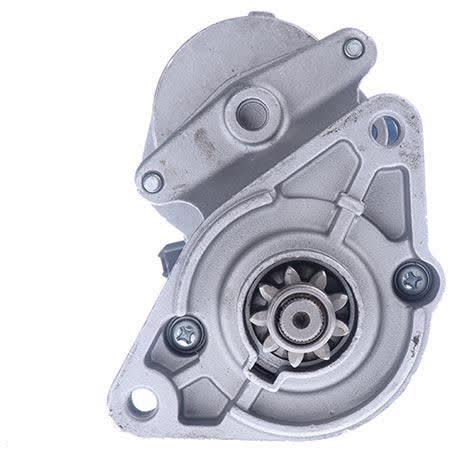

OEX Starter Motor 12V 9 Tooth CW Denso Style DXS407

The OEX starter motor listed here is a 12V, clockwise rotating unit with 9 teeth, built in a Denso style and identified by part number DXS407. It is a remanufactured starter motor with a 0.9kW power rating, a 2-hole starter mount, and a dry clutch arrangement.

Key physical dimensions include a 110mm mount centres measurement, 74mm flange diameter, 197mm overall length, 29mm pinion diameter, 20mm pinion at rest, and M10 x 1.25 mount hole diameter. The unit weighs 4.2kg, which can be useful when confirming the style of starter against an existing unit before ordering.

This starter is listed for Denso applications and is suitable where the original unit matches the supplied voltage, rotation, tooth count, and mounting details. The stated warranty is 3 years for passenger use and 1 year for commercial use, which gives a clear starting point for buyers comparing replacement options.

Key Features

• 12V clockwise starter motor
• 9-tooth pinion
• Denso style application
• Remanufactured unit
• 0.9kW power rating
• 2-hole starter mount

Specifications

• Brand: OEX
• Type: Starter Motor
• Unit of measure: Each
• Voltage: 12
• Rotation: CW
• Number of teeth: 9
• Power rating: 0.9kW
• Suits unit make: Denso

Known fitment applications supplied

• Lexus LX
• Toyota 4 Runner
• Toyota Dyna
• Toyota Hiace
• Toyota Hilux
• Toyota Land Cruiser
• Toyota Liteace
• Toyota Soarer

Application and Buying Notes

Before ordering, match the starter against the existing unit’s 12V rating, clockwise rotation, 9-tooth pinion, and Denso style arrangement. The part number DXS407 is the most reliable identifier here, especially where the vehicle has had previous replacement parts or the original starter has been swapped.

The mounting details matter as much as the electrical specification. Check the 2-hole starter mount, 110mm mount centres, 74mm flange diameter, M10 x 1.25 mount holes, and 197mm overall length so the replacement lines up correctly with the engine housing and bellhousing area.

The 0.9kW power rating and dry clutch configuration are part of the starter’s build and should be compared with the original unit. If the old starter is available, compare the pinion diameter of 29mm and the 20mm pinion at rest measurement as a further sanity check before purchase.

This unit is remanufactured rather than new, so it is a practical option when you want a replacement starter with a clear specification set and stated warranty. The 4.2kg weight can also help when comparing like-for-like units during diagnosis or when confirming the style against the removed part.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS407 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 110mm, Number of Teeth 9, Pinion at Rest 20mm, Power Rating .9kW, Suits Unit Make Denso, Item Type Starter Motor, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 4.2kg, Product Group 1 ROTATING ELECTRICAL, Part No. DXS407, Brand OEX, Description OEX Starter Motor 12V 9Th CW Denso Style, Flange Diameter 74mm, Mount Hole Diameter M10 x 1.25, Overall Length 197mm, Pinion Diameter 29mm, Rotation CW.

OEX Starter Motor 12V 9Th CW Denso Style. Part number DXS407 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS407, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include LEXUS LX, LEXUS LX 1998, LEXUS LX 1999, LEXUS LX 2000, TOYOTA 4 RUNNER, TOYOTA 4 RUNNER 1984. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by matching part number DXS407, the Denso style application, and the listed fitment details to your vehicle and the removed starter motor before ordering.

FAQ

What is the part number for this starter motor?

The part number is DXS407. For this listing, part number DXS407 is the main reference point. Listed voltage is 12. Published fitment references include LEXUS LX, LEXUS LX 1998, LEXUS LX 1999. These details should still be checked against the original unit before ordering.

Is this starter motor 12V?

Yes. The listed voltage is 12V. For this listing, part number DXS407 is the main reference point. Listed voltage is 12. Published fitment references include LEXUS LX, LEXUS LX 1998, LEXUS LX 1999. These details should still be checked against the original unit before ordering.

What rotation does this starter motor use?

It is clockwise rotation, listed as CW. For this listing, part number DXS407 is the main reference point. Listed voltage is 12. Published fitment references include LEXUS LX, LEXUS LX 1998, LEXUS LX 1999. These details should still be checked against the original unit before ordering.

What type of clutch does this starter motor have?

It is listed as a dry clutch starter motor. For this listing, part number DXS407 is the main reference point. Listed voltage is 12. Published fitment references include LEXUS LX, LEXUS LX 1998, LEXUS LX 1999. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

This starter motor is listed as remanufactured. For this listing, part number DXS407 is the main reference point. Listed voltage is 12. Published fitment references include LEXUS LX, LEXUS LX 1998, LEXUS LX 1999. These details should still be checked against the original unit before ordering.

What warranty is supplied with this starter motor?

The stated warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number DXS407 is the main reference point. Listed voltage is 12. Published fitment references include LEXUS LX, LEXUS LX 1998, LEXUS LX 1999. These details should still be checked against the original unit before ordering.
