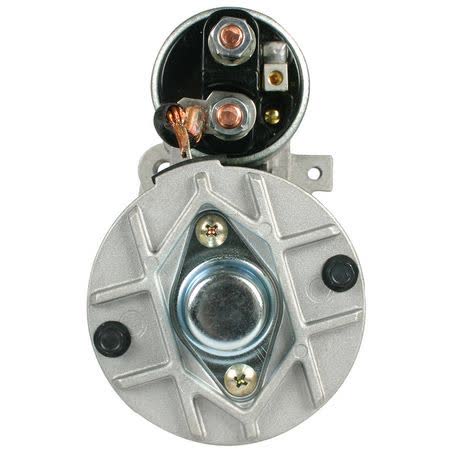

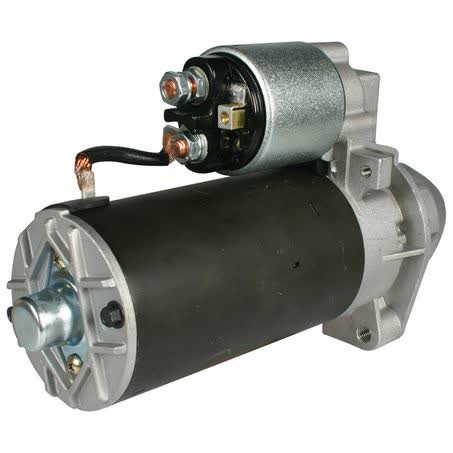

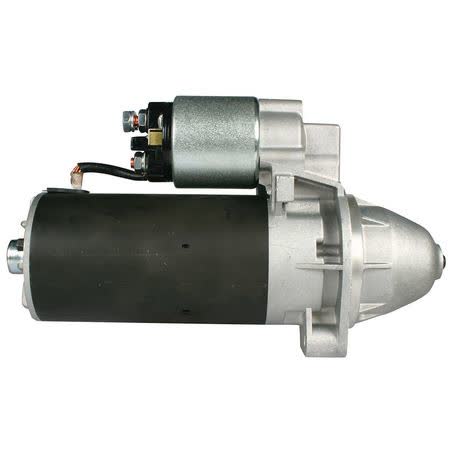

OEX Starter Motor 12V 10 Tooth CW Bosch Style BXS0115

The OEX starter motor listed here is a 12V unit with clockwise rotation, 10 teeth on the pinion, and a 2.0kW power rating. It is a new starter motor in the Bosch style, with a 2-hole starter mount, 105mm mount centres, and a 238mm overall length.

It suits Bosch applications and is noted as a replacement for original 10 tooth or 11 tooth units. Key dimensions include an 82.5mm flange diameter, M10x1.5 mount hole diameter, 28mm pinion diameter, and 26mm pinion at rest, so checking the existing starter against these measurements is important before ordering.

The part number is BXS0115 and the unit weight is 3.76kg. OEX backs this new starter motor with a 3 year passenger vehicle warranty and 1 year commercial warranty, which gives a useful reference point for buyers comparing repair options on rotating electrical parts.

Key Features

• 12V starter motor
• Clockwise rotation (CW)
• 10-tooth pinion
• 2.0kW power rating
• Bosch style replacement
• 2-hole starter mount

Specifications

• Part number: BXS0115
• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 10
• Power rating: 2.0kW
• Starter mount type: 2 hole

Verified fitment references

• Mercedes-Benz 124
• Mercedes-Benz 190
• Mercedes-Benz C-Class
• Mercedes-Benz CLK
• Mercedes-Benz E-Class
• Mercedes-Benz S-Class
• Mercedes-Benz Sprinter 2-T
• Mercedes-Benz Sprinter 3-T

Application and Buying Notes

Before ordering, compare the existing starter to the key physical details here: 12V, CW rotation, 10 teeth, 2-hole mount, 105mm mount centres, and 238mm overall length. The note that this unit replaces original 10 tooth or 11 tooth starters is useful, but the starter still needs to match the vehicle’s application and mounting arrangement.

The Bosch-style designation matters because the unit is intended for Bosch applications, and the listed dimensions give practical checks for fitment. The 82.5mm flange diameter, M10x1.5 mount hole diameter, 28mm pinion diameter, and 26mm pinion at rest are the sort of measurements a technician would compare against the removed starter before fitting.

This is a new starter motor, not a remanufactured one, and the warranty is listed separately for passenger and commercial use. That distinction can matter if the vehicle is used in higher-demand service, so it is worth confirming how the vehicle is used as well as whether the part number BXS0115 aligns with the replacement needed.

The fitment references include a range of Mercedes-Benz and Ssangyong applications, plus Daewoo and the listed 5-T and 6-T references. Because starter motors can differ by engine, transmission, and mounting style even within the same model family, use the part number, rotation, tooth count, and mounting measurements together rather than relying on model name alone.

If you are replacing a failed starter, check the old unit for tooth count, flange size, mount-hole thread, and overall length before committing to the order. Those checks reduce the chance of receiving a Bosch-style starter that looks close but does not physically interchange with the original unit.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS0115 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 105mm, Number of Teeth 10, Pinion at Rest 26mm, Power Rating 2.0kW, Suits Unit Make Bosch, Note Will replace original 10 tooth or 11 Tooth Units, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 3.76kg, Product Group 1 ROTATING ELECTRICAL, Part No. BXS0115, Brand OEX, Description OEX Starter Motor 12V 10Th CW Bosch Style, Flange Diameter 82.5mm, Mount Hole Diameter M10x1.5, Overall Length 238mm, Pinion Diameter 28mm, Rotation CW.

OEX Starter Motor 12V 10Th CW Bosch Style. Part number BXS0115 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS0115, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include 5-T 2006, 5-T 2007, 5-T 2008, 5-T 2009, 6-T 2006, 6-T 2007. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Please confirm fitment using part number BXS0115, the Bosch-style application, and the listed mounting and pinion measurements before ordering.

FAQ

What type of starter motor is this?

It is an OEX starter motor, 12V, clockwise rotation, with a 10-tooth pinion and a 2.0kW power rating.

What is the part number?

The part number is BXS0115.

Is this a new or remanufactured unit?

This is a new starter motor.

What mounting details are listed?

It has a 2-hole starter mount, 105mm mount centres, M10x1.5 mount hole diameter, and an 82.5mm flange diameter.

What vehicles are referenced for fitment?

The fitment references include Mercedes-Benz, Ssangyong, Daewoo, 5-T, and 6-T applications, with examples such as Mercedes-Benz 124, 190, C-Class, CLK, E-Class, S-Class, Sprinter, Vito, Valente, Viano, and Ssangyong Actyon, Actyon Sports, Korando, Kyron, Musso, Rexton, and Stavic.

What warranty is listed?

The warranty listed is 3 years for passenger use and 1 year for commercial use.
