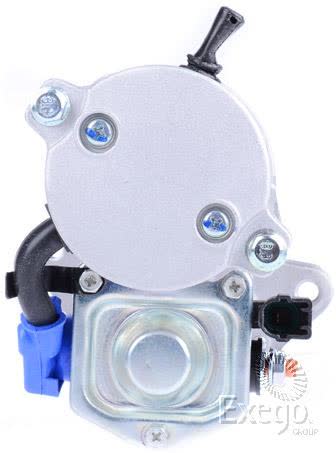

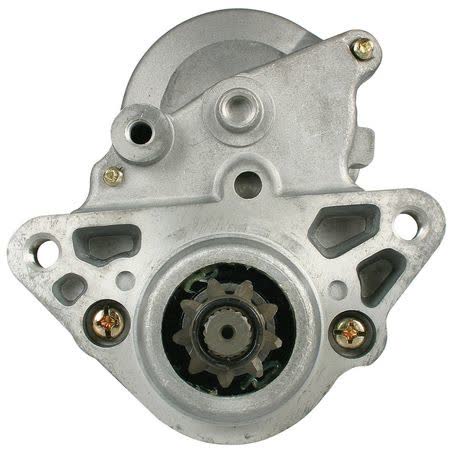

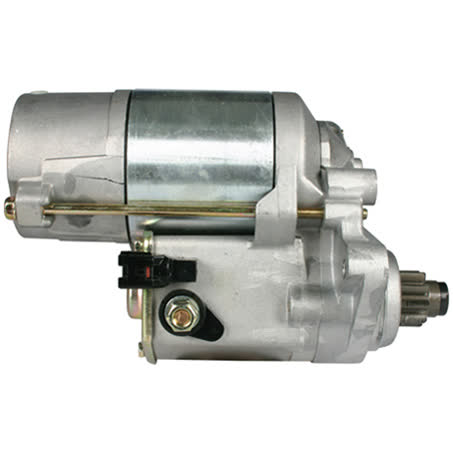

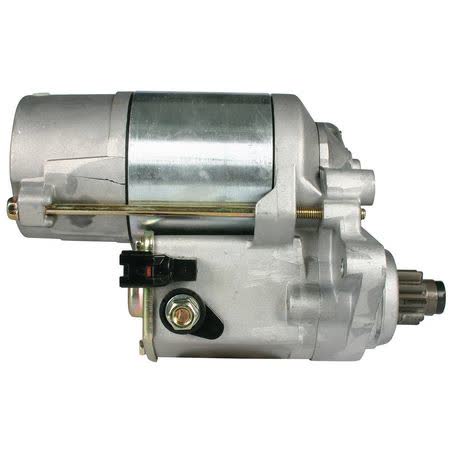

OEX Starter Motor 12V 9 Tooth CW Denso Style DXS529

The OEX starter motor DXS529 is a 12V, clockwise rotation unit with 9 teeth and a 2kW power rating. It is described as a Denso style starter motor and suits Denso applications, so the key checks are the part number, rotation, tooth count and mounting dimensions before ordering.

This unit is new, weighs 4.7kg, and uses a 2 hole starter mount. The main mounting figures listed are 108mm mount centres, 55mm flange diameter and M10 mount hole diameter, with an overall length of 218mm and a pinion at rest measurement of 34mm.

OEX positions this starter motor for the Australian automotive aftermarket and supports new units with a 3 year or 75,000 kilometre warranty. The listed specifications make it important to compare the existing starter carefully, especially where the vehicle has been fitted with different starter variations over time.

Key Features

• 12V starter motor
• 9 tooth pinion
• Clockwise rotation
• 2kW power rating
• Denso style unit
• Suits Denso applications

Specifications

• Voltage: 12V
• Power rating: 2kW
• Rotation: CW
• Number of teeth: 9
• Mount centres A: 108mm
• Starter mount type: 2 hole
• Mount hole diameter: M10
• Flange diameter: 55mm

Fitment guidance

• Fitment information supplied includes Lexus GS, Lexus LS, Lexus LX, Lexus, Toyota, Toyota Land Cruiser and Toyota Soarer applications.
• The application data includes Toyota Land Cruiser model years from 1998 through 2008 in the supplied preview.
• The application data also includes Lexus GS model years 2005 through 2008 in the supplied preview.
• Because only partial application detail is provided here, confirm the exact vehicle build and the original starter specifications before ordering.

Application and Buying Notes

The most reliable way to match this starter motor is by confirming DXS529 against the vehicle’s existing unit and comparing the 12V system, 9 tooth pinion, clockwise rotation and Denso style configuration. A starter can look similar while still differing in rotation, tooth count, flange size or mount spacing, so those physical checks matter as much as the vehicle model.

Pay close attention to the mounting dimensions: 108mm mount centres, 55mm flange diameter, M10 mount hole diameter and a 2 hole starter mount. The overall length is 218mm and the pinion at rest is 34mm, which are useful reference points when replacing a starter that has been removed from the vehicle.

This starter is a new OEX unit with a 2kW power rating and a 4.7kg listed weight. Those details help set expectations for application matching, but they do not replace a direct comparison with the old starter, especially if the vehicle has had prior repairs or non-standard parts fitted.

If the vehicle is listed in the supplied fitment range, that is a useful starting point, but it is still best practice to confirm the part number, tooth count, rotation and mounting layout. That approach reduces the risk of ordering the wrong starter where several compatible-looking options exist across Lexus and Toyota applications.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS529 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 108mm, Number of Teeth 9, Pinion at Rest 34mm, Power Rating 2kW, Suits Unit Make Denso, Item Type Starter Motor, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 4.7kg, Product Group 1 ROTATING ELECTRICAL, Part No. DXS529, Brand OEX, Description OEX Starter Motor 12V 9Th CW Denso Style, Flange Diameter 55mm, Mount Hole Diameter M10, Overall Length 218mm, Pinion Diameter 29mm, Rotation CW.

OEX Starter Motor 12V 9Th CW Denso Style. Part number DXS529 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS529, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include LEXUS GS, LEXUS GS 2005, LEXUS GS 2006, LEXUS GS 2007, TOYOTA LAND CRUISER, TOYOTA LAND CRUISER 1998. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching part number DXS529, 12V specification, 9 tooth count, clockwise rotation, Denso style application and the mounting dimensions before purchase. If there is any doubt, compare the removed starter or check the vehicle application details carefully.

FAQ

What is the part number for this starter motor?

The listed part number is DXS529. For this listing, part number DXS529 is the main reference point. Listed voltage is 12. Published fitment references include LEXUS GS, LEXUS GS 2005, LEXUS GS 2006. These details should still be checked against the original unit before ordering.

Is this a 12V starter motor?

Yes. The listed voltage is 12V. For this listing, part number DXS529 is the main reference point. Listed voltage is 12. Published fitment references include LEXUS GS, LEXUS GS 2005, LEXUS GS 2006. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The starter motor is listed with 9 teeth. For this listing, part number DXS529 is the main reference point. Listed voltage is 12. Published fitment references include LEXUS GS, LEXUS GS 2005, LEXUS GS 2006. These details should still be checked against the original unit before ordering.

What direction does it rotate?

It is listed as clockwise rotation, shown as CW. For this listing, part number DXS529 is the main reference point. Listed voltage is 12. Published fitment references include LEXUS GS, LEXUS GS 2005, LEXUS GS 2006. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number DXS529 is the main reference point. Listed voltage is 12. Published fitment references include LEXUS GS, LEXUS GS 2005, LEXUS GS 2006. These details should still be checked against the original unit before ordering.

What warranty is listed for this OEX starter motor?

The listed warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number DXS529 is the main reference point. Listed voltage is 12. Published fitment references include LEXUS GS, LEXUS GS 2005, LEXUS GS 2006. These details should still be checked against the original unit before ordering.
