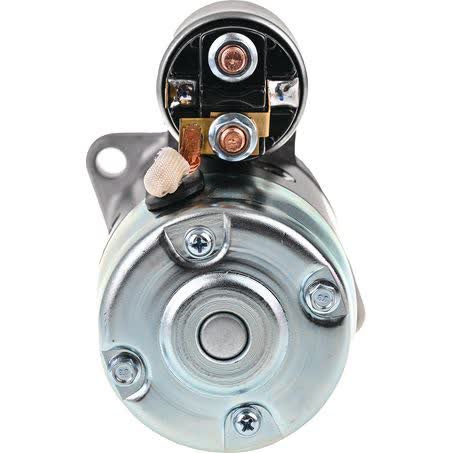

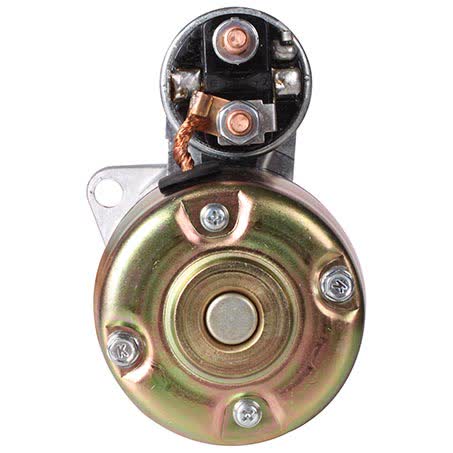

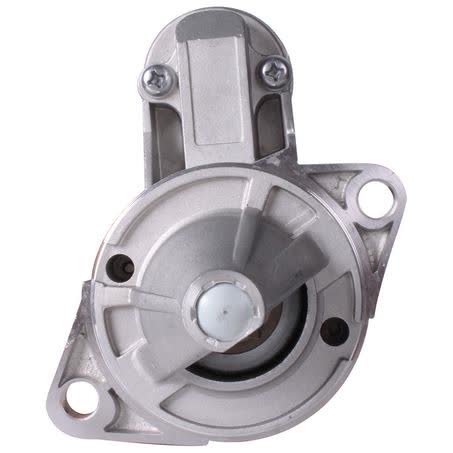

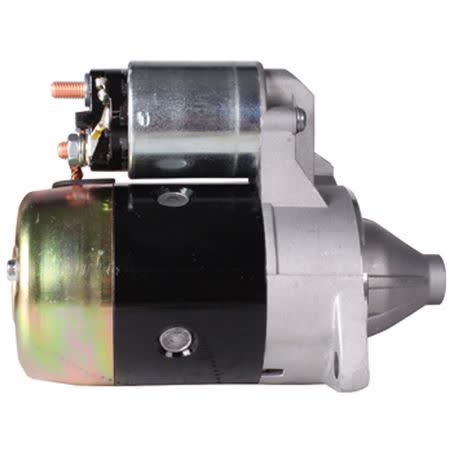

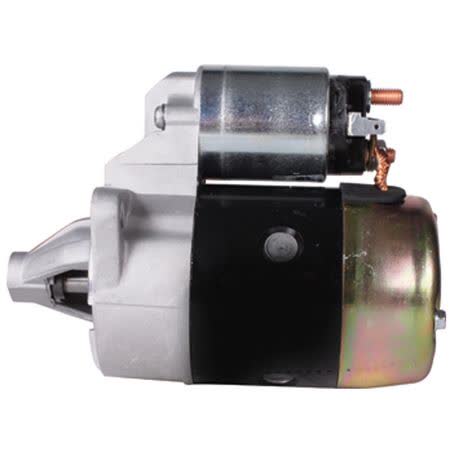

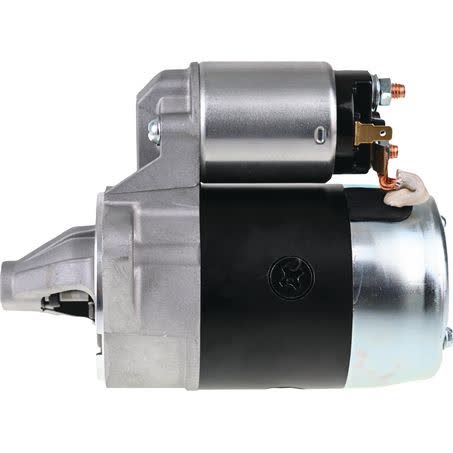

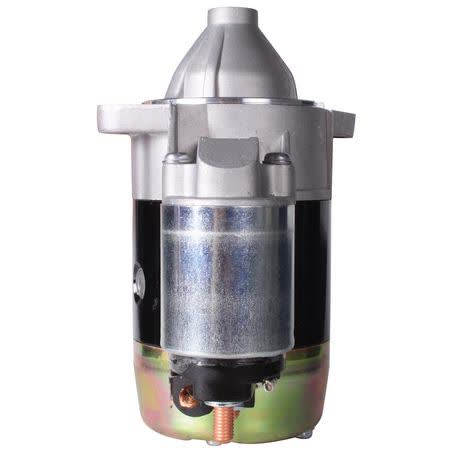

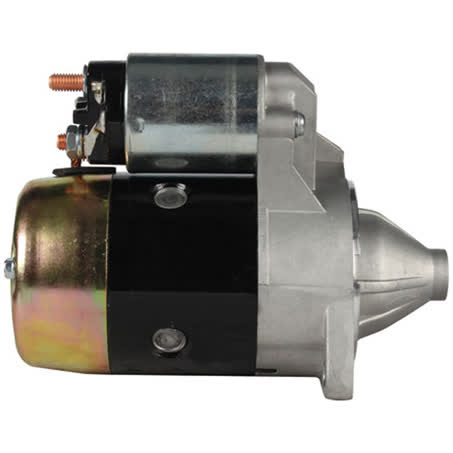

OEX Starter Motor 12V 8 Tooth CW Mitsubishi Style MXS217

The OEX MXS217 is a 12V starter motor in Mitsubishi style with clockwise rotation, 8 teeth, and a 0.9kW power rating. It is listed as a new unit with a 2-hole starter mount, 82mm flange diameter, and 110mm mount centres A, so the physical layout can be checked against the original starter before purchase.

Key dimensions include an overall length of 190mm, a 28mm pinion diameter, an 11mm mount hole diameter, and an 8mm pinion at rest. These details matter when matching a replacement starter motor, especially where clearance, mounting pattern, and pinion position need to line up with the vehicle or machine application.

OEX supplies this starter motor as part of its rotating electrical range for the Australian automotive aftermarket. The listed warranty is 3 years for passenger use and 1 year for commercial use, which gives a clear indication of the intended application and the need to confirm suitability for the vehicle type before fitting.

Key Features

• 12V starter motor
• Clockwise rotation (CW)
• 8-tooth pinion
• 0.9kW power rating
• New unit
• Mitsubishi style

Specifications

• Part No.: MXS217
• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 8
• Power rating: 0.9kW
• Mount centres A: 110mm

Compatible applications listed

• Barko various
• Komatsu DT11
• Komatsu FG15DT-15
• Komatsu FG15H
• Komatsu FG18H-15
• Komatsu FG20
• Komatsu FG20-11
• Komatsu FG20-8

Application and Buying Notes

Before ordering, match the part number MXS217 and confirm the starter is the correct 12V, clockwise unit for the application. The key physical checks here are the 8-tooth pinion, 2-hole mount, 110mm mount centres A, and 82mm flange diameter, because a starter can look similar while still differing in mounting or engagement details.

This starter is a new OEX unit and is listed with a dry clutch application. The dimensions provided — 190mm overall length, 28mm pinion diameter, 11mm mount hole diameter, and 8mm pinion at rest — are there to help verify the replacement against the removed starter, which is the safest way to avoid installation issues.

The warranty differs by use case: 3 years for passenger applications and 1 year for commercial applications. That makes the intended operating environment worth checking before purchase, particularly where the starter will be used in a working vehicle, forklift, or other commercial setting.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS217 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 110mm, Number of Teeth 8, Pinion at Rest 8mm, Power Rating .9kW, Suits Unit Make Mitsubishi, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. MXS217, Brand OEX, Description OEX Starter Motor 12V 8Th CW Mitsubishi Style, Flange Diameter 82mm, Mount Hole Diameter 11, Overall Length 190mm, Pinion Diameter 28mm, Rotation CW.

OEX Starter Motor 12V 8Th CW Mitsubishi Style. Part number MXS217 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS217, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include BARKO VARIOUS, BARKO VARIOUS 1986, KOMATSU DT11, KOMATSU DT11 1989, KOMATSU FG15DT-15, KOMATSU FG15DT-15 1980. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment with the MXS217 part number, the 12V clockwise specification, and the measured mounting and pinion dimensions before ordering. If the original starter has different mounting centres, tooth count, flange size, or rotation, do not assume interchangeability.

FAQ

What is the part number for this starter motor?

The part number is MXS217. For this listing, part number MXS217 is the main reference point. Listed voltage is 12. Published fitment references include BARKO VARIOUS, BARKO VARIOUS 1986, KOMATSU DT11. These details should still be checked against the original unit before ordering.

Is this a 12 volt starter motor?

Yes. The listed voltage is 12V. For this listing, part number MXS217 is the main reference point. Listed voltage is 12. Published fitment references include BARKO VARIOUS, BARKO VARIOUS 1986, KOMATSU DT11. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

It has 8 teeth. For this listing, part number MXS217 is the main reference point. Listed voltage is 12. Published fitment references include BARKO VARIOUS, BARKO VARIOUS 1986, KOMATSU DT11. These details should still be checked against the original unit before ordering.

What direction does this starter rotate?

It is clockwise rotation, listed as CW. For this listing, part number MXS217 is the main reference point. Listed voltage is 12. Published fitment references include BARKO VARIOUS, BARKO VARIOUS 1986, KOMATSU DT11. These details should still be checked against the original unit before ordering.

What are the main mounting dimensions?

The listed mounting details are a 2-hole starter mount, 110mm mount centres A, 82mm flange diameter, and 11mm mount hole diameter. For this listing, part number MXS217 is the main reference point. Listed voltage is 12. Published fitment references include BARKO VARIOUS, BARKO VARIOUS 1986, KOMATSU DT11. These details should still be checked against the original unit before ordering.

What warranty is listed?

The warranty listed is 3 years for passenger use and 1 year for commercial use. For this listing, part number MXS217 is the main reference point. Listed voltage is 12. Published fitment references include BARKO VARIOUS, BARKO VARIOUS 1986, KOMATSU DT11. These details should still be checked against the original unit before ordering.
