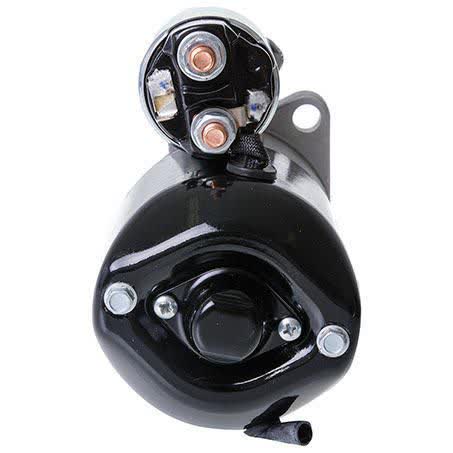

OEX Starter Motor 12V 9 Tooth CW Denso Style DXS402

The OEX DXS402 is a new 12V starter motor in a Denso style layout, with clockwise rotation and a 9 tooth pinion. It is listed with a 1kW power rating, a 2 hole starter mount, and a 74mm flange diameter, which are the key checks to make before ordering.

It suits Denso unit applications and measures 252mm overall length, with 115mm mount centres, 11mm mount hole diameter, 29mm pinion diameter, and 20mm pinion at rest. Those dimensions matter when comparing against the original starter, especially where clearance and mounting pattern must line up exactly.

OEX positions this as a quality replacement starter motor for the Australian automotive aftermarket. The unit is new, weighs 3.14kg, and carries the OEX part number DXS402, which is the safest reference point to confirm against the vehicle application and any removed unit markings.

Key Features

• 12V starter motor
• 9 tooth pinion
• Clockwise rotation
• Denso style unit
• 1kW power rating
• New unit

Specifications

• Brand: OEX
• Product type: Starter Motor
• Part No.: DXS402
• Voltage: 12V
• Rotation: CW
• Number of teeth: 9
• Power rating: 1kW
• Suits unit make: Denso

Known application information

• Toyota Celica
• Toyota Coaster
• Toyota Corona
• Toyota Dyna
• Toyota Hiace
• Toyota Hilux
• Toyota Industrial
• Toyota Industrial 3FG25

Application and Buying Notes

Before ordering, compare the OEX part number DXS402, the 12V specification, and the clockwise (CW) rotation against the starter you are replacing. The 9 tooth pinion, 74mm flange diameter, 115mm mount centres, and 2 hole mounting pattern are the practical checks that usually decide whether the unit will physically match.

The unit is listed as Denso style and suits Denso unit make applications, so it is important to compare the original starter’s layout rather than relying on appearance alone. Overall length is 252mm, pinion diameter is 29mm, and pinion at rest is 20mm, all of which help confirm that the replacement will clear surrounding components and engage correctly.

If the vehicle is one of the Toyota applications shown, confirm the exact model, year, and engine or industrial setup before purchase. The fitment list includes passenger and industrial Toyota applications, and starter matching on these vehicles can depend on the original electrical and mounting details rather than just the vehicle badge.

The listed warranty is 3 years for passenger use and 1 year for commercial use. That warranty detail is relevant only when the unit is used within the stated application type, so it is worth matching the intended use of the vehicle to the warranty category as well as the physical fitment details.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS402 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 115mm, Number of Teeth 9, Pinion at Rest 20mm, Power Rating 1kW, Suits Unit Make Denso, Item Type Starter Motor, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 3.14kg, Product Group 1 ROTATING ELECTRICAL, Part No. DXS402, Brand OEX, Description OEX Starter Motor 12V 9Th CW Denso Style, Flange Diameter 74mm, Mount Hole Diameter 11, Overall Length 252mm, Pinion Diameter 29mm, Rotation CW.

OEX Starter Motor 12V 9Th CW Denso Style. Part number DXS402 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS402, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include TOYOTA CELICA, TOYOTA CELICA 1973, TOYOTA CELICA 1974, TOYOTA CELICA 1975. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility using the OEX part number DXS402, the 12V CW Denso style specification, and the measured mounting and pinion dimensions before ordering. Do not rely on vehicle name alone, as starter fitment can vary within the listed Toyota applications.

FAQ

What is the part number for this starter motor?

The OEX part number is DXS402. For this listing, part number DXS402 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA CELICA, TOYOTA CELICA 1973, TOYOTA CELICA 1974. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured starter motor?

This unit is listed as new. For this listing, part number DXS402 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA CELICA, TOYOTA CELICA 1973, TOYOTA CELICA 1974. These details should still be checked against the original unit before ordering.

What voltage does it use?

It is a 12V starter motor. For this listing, part number DXS402 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA CELICA, TOYOTA CELICA 1973, TOYOTA CELICA 1974. These details should still be checked against the original unit before ordering.

What rotation does it have?

The rotation is clockwise, shown as CW. For this listing, part number DXS402 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA CELICA, TOYOTA CELICA 1973, TOYOTA CELICA 1974. These details should still be checked against the original unit before ordering.

What are the key mounting dimensions?

The listed mounting details are 2 hole mount type, 115mm mount centres, 11mm mount hole diameter, and 74mm flange diameter. For this listing, part number DXS402 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA CELICA, TOYOTA CELICA 1973, TOYOTA CELICA 1974. These details should still be checked against the original unit before ordering.

Which applications are listed for this starter?

Listed applications include Toyota Celica, Coaster, Corona, Dyna, Hiace, Hilux, Toyota Industrial, Toyoace, and several Toyota Industrial variants such as 3FG25, 5FGL10/14/15, 7FGK30, and FG25. For this listing, part number DXS402 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA CELICA, TOYOTA CELICA 1973, TOYOTA CELICA 1974. These details should still be checked against the original unit before ordering.
