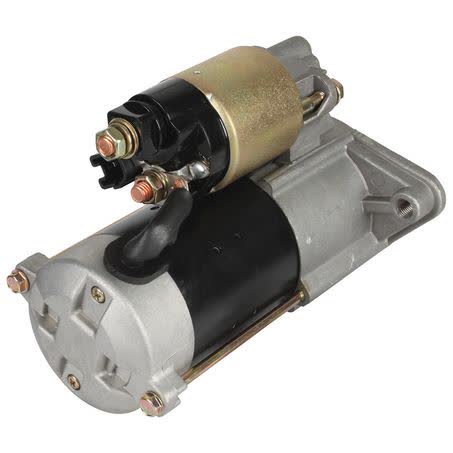

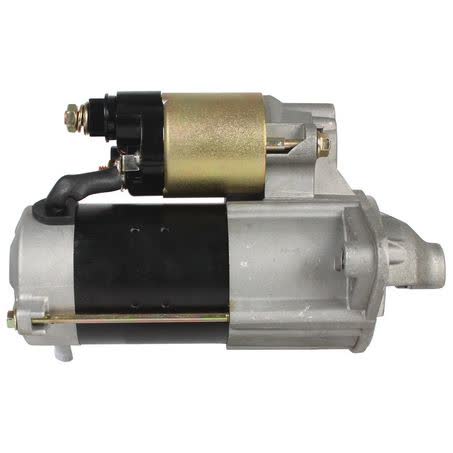

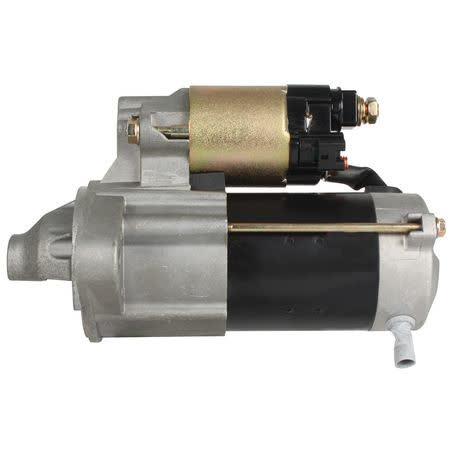

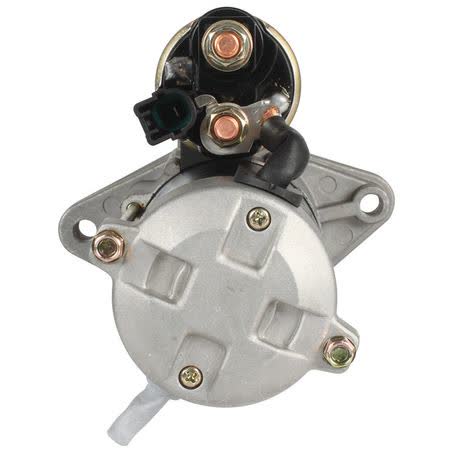

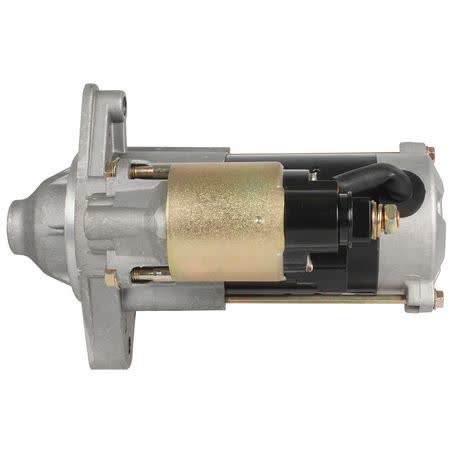

OEX Starter Motor 12V 9 Tooth CW Denso Style DXS463

The OEX DXS463 is a new 12V starter motor with 9 teeth and clockwise rotation, built in a Denso style fitment. It has a 0.8kW power rating, a 2 hole starter mount, and a 114mm mount centre dimension, so the physical mounting details can be checked before purchase.

This unit has a 74mm flange diameter, an M10x1.5 mount hole diameter, a 201mm overall length, and a 27mm pinion diameter. The pinion at rest is 5mm, and the starter is listed as suitable for dry clutch applications.

OEX positions this starter motor within its rotating electrical range for the Australian automotive aftermarket. The listed warranty is 3 years for passenger applications or 1 year for commercial use, and the unit is supplied new, not remanufactured.

Key Features

• 12V starter motor
• 9-tooth pinion
• Clockwise rotation
• Denso style fitment
• 0.8kW power rating
• 2 hole starter mount

Specifications

• Part number: DXS463
• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 9
• Power rating: 0.8kW
• Starter mount type: 2 hole

Fitment guidance

• Denso style application
• Suits unit make: Denso
• Toyota applications are listed in the fitment data, including Corolla II, Corsa, Paseo, Starlet, and Tercel
• Fitment records include Toyota Corolla II model years 1994 to 1999 and Toyota Corsa model years 1990 to 1993

Application and Buying Notes

Before ordering, confirm the part number DXS463, the 12V rating, and the 9 tooth clockwise configuration against the existing starter on the vehicle. Mounting details also matter here, including the 2 hole mount, 114mm mount centres, and M10x1.5 mount hole size.

The listed Denso style and suit unit make of Denso are important checks, but they should be matched to the vehicle application and the original unit. Starter motors can look similar while differing in flange diameter, pinion depth, length, or rotation, so the 74mm flange, 201mm overall length, and 5mm pinion at rest are useful comparison points.

This starter motor is listed as new and suitable for dry clutch applications, with a 0.8kW rating. If you are replacing a unit in a Toyota Corolla II, Corsa, Paseo, Starlet, or Tercel application, verify the exact model and year against the vehicle’s existing starter and mount arrangement before finalising the order.

The warranty is 3 years for passenger use and 1 year for commercial use. That does not replace fitment checking, so the safest approach is still to confirm the part number, physical dimensions, tooth count, rotation, and mounting layout against the removed unit or vehicle specification.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS463 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 114mm, Number of Teeth 9, Pinion at Rest 5mm, Power Rating .8kW, Suits Unit Make Denso, Item Type Starter Motor, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 3.448kg, Product Group 1 ROTATING ELECTRICAL, Part No. DXS463, Brand OEX, Description OEX Starter Motor 12V 9Th CW Denso Style, Flange Diameter 74mm, Mount Hole Diameter M10x1.5, Overall Length 201mm, Pinion Diameter 27mm, Rotation CW.

OEX Starter Motor 12V 9Th CW Denso Style. Part number DXS463 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS463, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include TOYOTA COROLLA II, TOYOTA COROLLA II 1994, TOYOTA COROLLA II 1995, TOYOTA COROLLA II 1996. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm compatibility by matching part number DXS463, Denso style application, 12V voltage, 9 tooth clockwise rotation, and the physical mounting dimensions before purchase.

FAQ

What is the part number for this starter motor?

The part number is DXS463. For this listing, part number DXS463 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA COROLLA II, TOYOTA COROLLA II 1994, TOYOTA COROLLA II 1995. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number DXS463 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA COROLLA II, TOYOTA COROLLA II 1994, TOYOTA COROLLA II 1995. These details should still be checked against the original unit before ordering.

What voltage does this starter motor use?

It is a 12V starter motor. For this listing, part number DXS463 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA COROLLA II, TOYOTA COROLLA II 1994, TOYOTA COROLLA II 1995. These details should still be checked against the original unit before ordering.

What rotation does this starter motor have?

The rotation is clockwise (CW). For this listing, part number DXS463 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA COROLLA II, TOYOTA COROLLA II 1994, TOYOTA COROLLA II 1995. These details should still be checked against the original unit before ordering.

What mounting details are listed for this unit?

The listed mounting details are a 2 hole starter mount, 114mm mount centres, a 74mm flange diameter, and M10x1.5 mount hole diameter. For this listing, part number DXS463 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA COROLLA II, TOYOTA COROLLA II 1994, TOYOTA COROLLA II 1995. These details should still be checked against the original unit before ordering.

What warranty is listed for this starter motor?

The warranty is 3 years for passenger applications and 1 year for commercial use. For this listing, part number DXS463 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA COROLLA II, TOYOTA COROLLA II 1994, TOYOTA COROLLA II 1995. These details should still be checked against the original unit before ordering.
