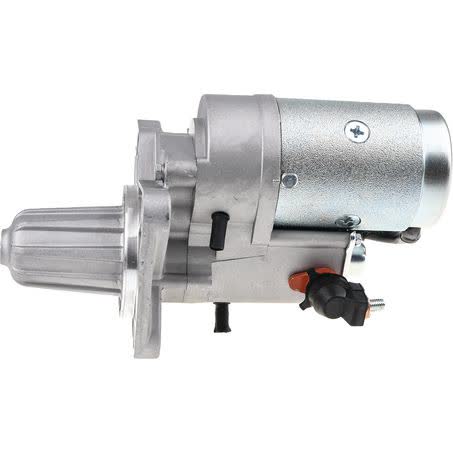

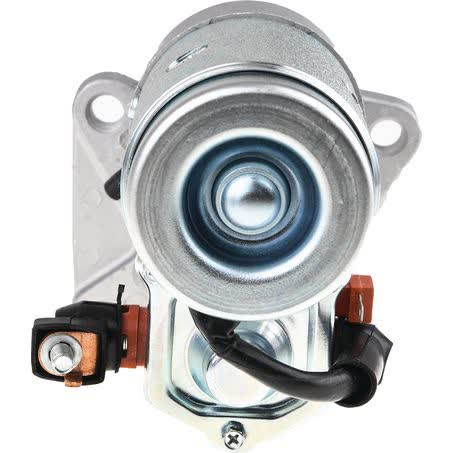

OEX Starter Motor 12V 11T CCW Mitsubishi Style MXS335

The OEX starter motor MXS335 is a 12V unit with 11 teeth, counter-clockwise rotation, and a Mitsubishi-style application. It is a new starter motor, not a remanufactured unit, and it is listed with a 2.2kW power rating. The unit measures 280mm overall length and uses a 3-hole starter mount type, so matching the mounting pattern and physical dimensions is important before ordering.

Key dimensions for this starter motor include 141mm mount centres A, 115mm mount centres B, 90mm mount centres C, an 88mm flange diameter, and 13mm mount hole diameter. The pinion diameter is 35mm, the pinion at rest is 44mm, and the unit weighs 6.2kg. These measurements are the practical checkpoints when comparing against an existing starter motor.

The listing notes that this starter suits manual transmission and is interchangeable with the non nose cone version. It is specified as a dry clutch application and is identified for Mitsubishi unit make. If you are replacing a starter on a vehicle that has been modified, repaired previously, or fitted with a non-standard replacement, the part number and mounting details should be checked carefully against the removed unit.

Key Features

• OEX starter motor, part number MXS335
• 12V, 11-tooth, CCW rotation
• 2.2kW power rating
• New unit
• 3-hole starter mount type
• Suits manual transmission

Specifications

• Brand: OEX
• Product type: Starter motor
• Part No.: MXS335
• Voltage: 12V
• Rotation: CCW
• Number of teeth: 11
• Power rating: 2.2kW
• Suits unit make: Mitsubishi

Fitment guidance

• Mitsubishi application stated in the product facts
• Suit manual transmission
• Interchangeable with non nose cone version

Application and Buying Notes

Before ordering, compare the removed starter against MXS335 using the part number, 12V rating, 11-tooth count, CCW rotation, and the listed mounting dimensions. The 3-hole mount type, 141mm/115mm/90mm mount centres, 88mm flange diameter, and 280mm overall length are the most useful physical checks when confirming the replacement starter is the same style.

Power output is listed at 2.2kW, so this unit should be compared with the original specification rather than selected only by appearance. The pinion diameter is 35mm and the pinion at rest is 44mm, both of which are relevant when checking clearances and engagement style. For Mitsubishi applications, confirm the exact engine and transmission arrangement on the vehicle before purchase.

The warranty listed is 3 years for passenger use and 1 year for commercial use. That warranty applies to new units. If the starter is going into a commercial vehicle, the shorter commercial warranty period is the relevant one. As with any rotating electrical part, correct fitment and installation are important, because a starter that does not match the mounting and drive arrangement can create unnecessary labour and repeat removal.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS335 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 141mm, Mount Centres C 90mm, Number of Teeth 11, Pinion at Rest 44mm, Power Rating 2.2kW, Suits Unit Make Mitsubishi, Note Suit Manual Transmission. Interchangeable with non Nose Cone Version..

Additional published details for cross-checking include New / Reman. New, Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. MXS335, Brand OEX, Description OEX Starter Motor 12V 11Th CCW Mitsubishi Style, Flange Diameter 88mm, Mount Centres B 115mm, Mount Hole Diameter 13.

OEX Starter Motor 12V 11Th CCW Mitsubishi Style. Part number MXS335 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS335, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include KIA K2700, KIA K2700 2002, KIA K2700 2003, KIA K2700 2004. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by matching part number MXS335, the Mitsubishi application, manual transmission requirement, 12V/11T CCW specification, and the listed mounting dimensions before purchase.

FAQ

What is the part number for this starter motor?

The part number is MXS335. For this listing, part number MXS335 is the main reference point. Listed voltage is 12. Published fitment references include KIA K2700, KIA K2700 2002, KIA K2700 2003. These details should still be checked against the original unit before ordering.

Is this starter motor 12 volt?

Yes. The listed voltage is 12V. For this listing, part number MXS335 is the main reference point. Listed voltage is 12. Published fitment references include KIA K2700, KIA K2700 2002, KIA K2700 2003. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

It has 11 teeth. For this listing, part number MXS335 is the main reference point. Listed voltage is 12. Published fitment references include KIA K2700, KIA K2700 2002, KIA K2700 2003. These details should still be checked against the original unit before ordering.

What is the rotation direction?

The rotation is CCW, or counter-clockwise. For this listing, part number MXS335 is the main reference point. Listed voltage is 12. Published fitment references include KIA K2700, KIA K2700 2002, KIA K2700 2003. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as a new starter motor. For this listing, part number MXS335 is the main reference point. Listed voltage is 12. Published fitment references include KIA K2700, KIA K2700 2002, KIA K2700 2003. These details should still be checked against the original unit before ordering.

What warranty is listed?

The listed warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number MXS335 is the main reference point. Listed voltage is 12. Published fitment references include KIA K2700, KIA K2700 2002, KIA K2700 2003. These details should still be checked against the original unit before ordering.
