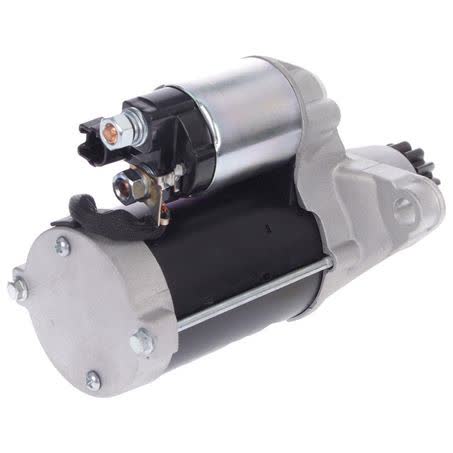

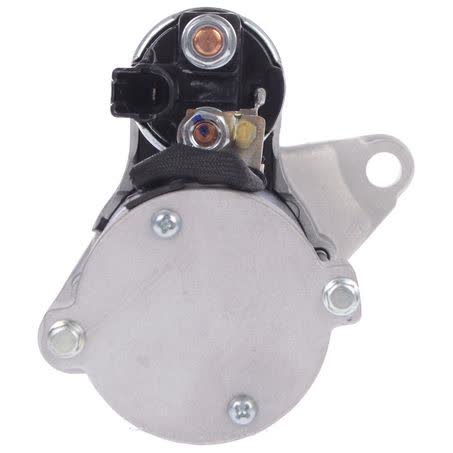

OEX Starter Motor 12V 13 Tooth CCW Denso Style DXS4006

The OEX starter motor DXS4006 is a new 12V unit in Denso style, set up with 13 teeth and counter-clockwise rotation. It is listed as a starter motor for rotating electrical applications and suits Denso units, so the key checks are the part number, mounting style and the measured dimensions before purchase.

This starter motor uses a 2-hole starter mount type, with 122mm mount centres, an 11mm mount hole diameter and a 55mm flange diameter. The overall length is 212mm, the pinion at rest measures 66mm, and the pinion diameter is 41mm. Those measurements are the practical reference points when comparing against the unit being replaced.

Power rating is listed at 1.6kW and the unit weighs 5.9kg. It is a dry clutch starter, supplied new, and backed by a 3 year passenger / 1 year commercial warranty. For buyers replacing an existing Denso-style starter, matching the part number DXS4006 and confirming the physical dimensions will help avoid a mismatch.

Key Features

• New OEX starter motor
• 12V, 13 tooth, counter-clockwise rotation
• Denso style, suits Denso units
• 2-hole starter mount
• Power rating: 1.6kW
• Part number: DXS4006

Specifications

• Voltage: 12V
• Number of teeth: 13
• Rotation: CCW
• Power rating: 1.6kW
• Part number: DXS4006
• Mount centres A: 122mm
• Starter mount type: 2 hole
• Mount hole diameter: 11mm

Fitment information

• Suits unit make: Denso
• Compatible applications were supplied for HOLDEN, LEXUS and TOYOTA vehicle ranges
• Listed fitment families include HOLDEN Apollo; Lexus ES, NX and RX; and Toyota Alphard, Avalon, Avensis Verso, Blade, Caldina, Camry, Kluger, Noah/Voxy, RAV4, Rukus, Spacia, Tarago and Vienta
• Sample application listings include HOLDEN Apollo, LEXUS ES 2000 to ES 2008, TOYOTA Alphard, and TOYOTA Alphard / Vellfire 2008 to 2015

Application and Buying Notes

Before ordering, compare the part number DXS4006, the 12V electrical rating and the 13 tooth count against the starter you are removing. A 2-hole mount with 122mm mount centres, 11mm mount hole diameter and 55mm flange diameter needs to line up with the vehicle’s existing setup, otherwise the unit may not bolt straight in.

Rotation matters on starter motors, and this unit is listed as CCW. The pinion at rest is 66mm and the pinion diameter is 41mm, so those measurements are useful when checking physical clearance and engagement style against the original starter. The overall length of 212mm is another useful check where space around the bellhousing is limited.

The starter is described as Denso style and suits Denso units, but that is not a substitute for checking the exact application. Vehicle ranges supplied for this item include Holden, Lexus and Toyota models, yet the safest buying method is still to confirm the existing unit details, the mounting pattern and the part number before fitting.

This is a new starter motor, not a remanufactured unit, and it is listed as a dry clutch design. The 1.6kW power rating gives a useful comparison point if you are matching a replaced starter with a known output, but the correct replacement still depends on the physical and electrical match, not just the power figure.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS4006 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 122mm, Number of Teeth 13, Pinion at Rest 66mm, Power Rating 1.6kW, Suits Unit Make Denso, Item Type Starter Motor, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 5.9kg, Product Group 1 ROTATING ELECTRICAL, Part No. DXS4006, Brand OEX, Description OEX Starter Motor 12V 13Th CCW Denso Style, Flange Diameter 55mm, Mount Hole Diameter 11, Overall Length 212mm, Pinion Diameter 41mm, Rotation CCW.

OEX Starter Motor 12V 13Th CCW Denso Style. Part number DXS4006 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS4006, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HOLDEN APOLLO, LEXUS ES, LEXUS ES 2000, LEXUS ES 2001, LEXUS ES 2002, TOYOTA ALPHARD. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using the part number DXS4006, the Denso style application, and the measured dimensions before purchase. Vehicle listings supplied for this item are broad, so final compatibility should be checked against the starter currently fitted to the vehicle.

FAQ

What type of starter motor is this?

It is an OEX starter motor, new, 12V, Denso style, with 13 teeth and CCW rotation. The part number is DXS4006.

What vehicle brands are listed for fitment?

The supplied fitment information includes HOLDEN, LEXUS and TOYOTA applications. Listed examples include Holden Apollo, Lexus ES, NX and RX, and Toyota Alphard, Avalon, Camry, Kluger, RAV4 and Tarago among others.

What mounting details should I check?

Check the 2-hole starter mount type, 122mm mount centres, 11mm mount hole diameter and 55mm flange diameter. Those measurements are important for physical fit.

What are the main electrical and rotational specs?

This starter is 12V, with a 1.6kW power rating and CCW rotation. It is listed as suitable for Denso units.

Is this a new or remanufactured starter?

It is listed as new. It is not described as remanufactured.

What warranty is listed?

The listed warranty is 3 year passenger and 1 year commercial.
