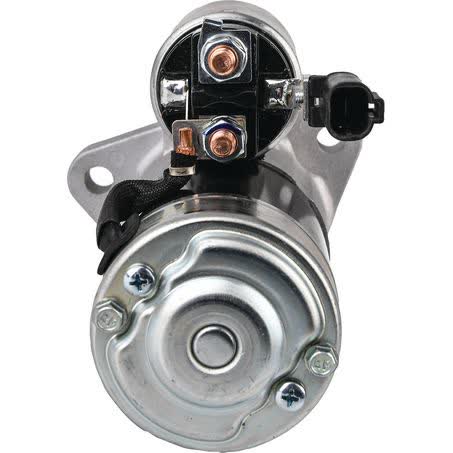

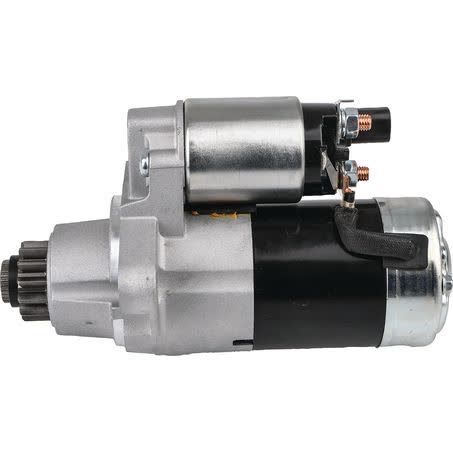

OEX Starter Motor 12V 13 Tooth CCW Mitsubishi Style MXS2003

The OEX Starter Motor MXS2003 is a 12V unit with 13 teeth, clockwise? no, counter clockwise rotation, and a Mitsubishi style application. It is listed as a new starter motor, with a 2 hole starter mount type, 92mm mount centres, and a 75mm flange diameter.

This unit is rated at 1.7kW and suits a dry clutch application. Key dimensions include an overall length of 220mm, pinion diameter of 40mm, pinion at rest of 51mm, and a 10mm mount hole diameter. These measurements are the practical checks that matter when comparing a replacement starter to the one being removed.

OEX states the brand is sourced from market leading Original Equipment Manufacturers and aftermarket suppliers, with products sourced from ISO certified factories. The starter is backed by a 3 year passenger and 1 year commercial warranty, which provides a clear service period distinction depending on how the vehicle is used.

Key Features

• 12V starter motor
• 13 tooth pinion
• CCW rotation
• Mitsubishi style application
• New unit, not remanufactured
• 2 hole starter mount

Specifications

• Part No.: MXS2003
• Brand: OEX
• Product type: Starter Motor
• Voltage: 12V
• Power rating: 1.7kW
• Number of teeth: 13
• Rotation: CCW
• Starter mount type: 2 hole

Fitment information

• Suits unit make: Mitsubishi

Application and Buying Notes

Before ordering, compare the part number MXS2003 and the physical specifications against the removed starter. The important match points here are the 12V system, 13 tooth pinion, CCW rotation, 2 hole mount, 92mm mount centres, 75mm flange diameter, and the 220mm overall length. A mismatch in any of these can prevent correct fitment or operation.

The listed pinion at rest of 51mm and pinion diameter of 40mm are useful checks when assessing engagement with the ring gear. The starter is specified for a dry clutch application, so the intended application context matters as much as the brand name on the housing.

If you are comparing alternatives, do not rely on appearance alone. Mitsubishi style does not on its own confirm vehicle compatibility, and the fitment details provided here are limited to the unit make. Checking the removed part, connector orientation, mount style, and dimensions is the safest way to avoid a return.

The unit is new and weighs 3.52kg, which may help when comparing to an existing starter during inspection. The warranty period differs for passenger and commercial use, so it is worth confirming how the vehicle is classified before purchase if warranty cover is an important factor.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2003 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 92mm, Number of Teeth 13, Pinion at Rest 51mm, Power Rating 1.7kW, Suits Unit Make Mitsubishi, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. MXS2003, Brand OEX, Description OEX Starter Motor 12V 13Th CCW Mitsubishi Style, Flange Diameter 75mm, Mount Hole Diameter 10, Overall Length 220mm, Pinion Diameter 40mm, Rotation CCW.

OEX Starter Motor 12V 13Th CCW Mitsubishi Style. Part number MXS2003 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2003, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include NISSAN ELGRAND, NISSAN ELGRAND 2010, NISSAN MAXIMA, NISSAN MAXIMA 2003. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using part number MXS2003, the 12V / 13 tooth / CCW specification, and the physical dimensions before ordering. Suitability should always be checked against the removed unit and the vehicle application details provided.

FAQ

What is the part number for this starter motor?

The part number is MXS2003. For this listing, part number MXS2003 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN ELGRAND, NISSAN ELGRAND 2010, NISSAN MAXIMA. These details should still be checked against the original unit before ordering.

What voltage does this starter use?

It is a 12V starter motor. For this listing, part number MXS2003 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN ELGRAND, NISSAN ELGRAND 2010, NISSAN MAXIMA. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 13 teeth. For this listing, part number MXS2003 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN ELGRAND, NISSAN ELGRAND 2010, NISSAN MAXIMA. These details should still be checked against the original unit before ordering.

What is the rotation direction?

The starter rotates CCW, which means counter clockwise. For this listing, part number MXS2003 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN ELGRAND, NISSAN ELGRAND 2010, NISSAN MAXIMA. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

This is a new starter motor. For this listing, part number MXS2003 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN ELGRAND, NISSAN ELGRAND 2010, NISSAN MAXIMA. These details should still be checked against the original unit before ordering.

What warranty is listed?

The listed warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number MXS2003 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN ELGRAND, NISSAN ELGRAND 2010, NISSAN MAXIMA. These details should still be checked against the original unit before ordering.
