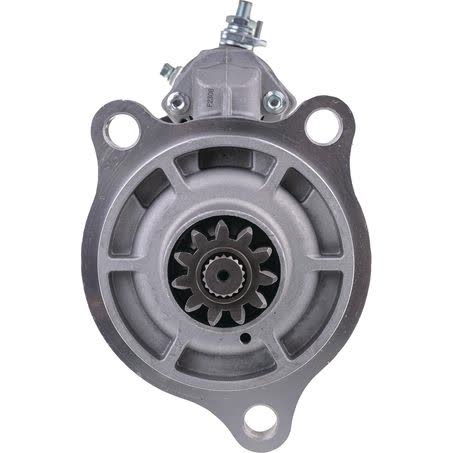

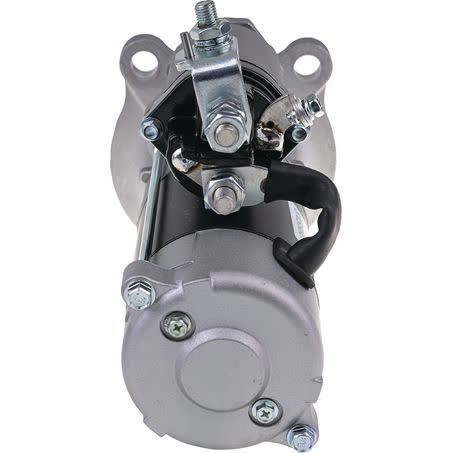

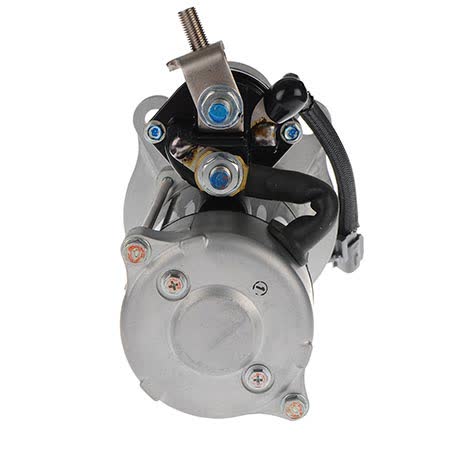

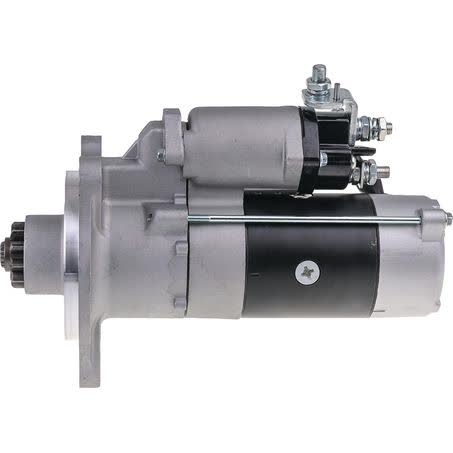

OEX Starter Motor 24V 11 Tooth CW Sawafuji Style SXS9807

The OEX Starter Motor SXS9807 is a 24V, clockwise rotation starter motor with 11 teeth, designed in a Sawafuji style and noted to suit the E13C engine. It is a new unit, with a 6kW power rating, three-hole starter mount, and an overall length of 320mm.

Key physical details include a 122mm flange diameter, 156mm and 147mm and 97mm mount centre measurements, a 16mm mount hole diameter, and a 48mm pinion at rest. The pinion diameter is also listed as 48mm, which is useful when checking the starter against the existing unit before ordering.

This starter motor is part of OEX’s rotating electrical range and is supplied as a single each unit. The listed warranty is 3 years for passenger use and 1 year for commercial use, which makes the application type worth confirming before purchase.

Key Features

• 24V starter motor
• Clockwise rotation
• 11 tooth pinion
• 6kW power rating
• Sawafuji style
• New unit

Specifications

• Part number: SXS9807
• Brand: OEX
• Product type: Starter motor
• Voltage: 24V
• Power rating: 6kW
• Rotation: CW
• Number of teeth: 11
• Suits unit make: Sawafuji

Fitment guidance

• Suitability is noted for the E13C engine.
• The fitment data also references Hino 700 Series applications across 2004 to 2014.
• Other listed applications include Hitachi ZW310-5, Hitachi ZW330-5, and Kawasaki 90Z7.
• The supplied fitment preview also shows 2015 references for Hitachi ZW310-5 and ZW330-5, and 2013 for Kawasaki 90Z7.

Application and Buying Notes

Before ordering, compare the part number SXS9807 and the starter details against the unit on the machine. The critical checks here are 24V voltage, clockwise rotation, 11 teeth, 6kW output, and the Sawafuji style note, because those details need to line up with the existing application.

The mounting dimensions matter as much as the electrical rating. This unit has a 3-hole mount, 156mm, 147mm, and 97mm mount centres, a 122mm flange diameter, and a 16mm mount hole diameter. If those measurements do not match the original starter, the part may not suit even if the engine family appears similar.

The note to suit the E13C engine is the clearest engine reference provided, but the fitment list also includes Hino 700 Series, Hitachi ZW310-5, Hitachi ZW330-5, and Kawasaki 90Z7 applications. Use those references as a guide only and confirm against the machine serial details, the current starter tag, and the mounting pattern on the vehicle or equipment.

The listed warranty differs between passenger and commercial use, so it is sensible to confirm how the unit will be used before purchase. At 8.9kg and 320mm overall length, this is a substantial starter motor, so handling, fitment access, and cable routing should also be checked during installation planning.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number SXS9807 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 156mm, Mount Centres C 97mm, Number of Teeth 11, Pinion at Rest 48mm, Power Rating 6kW, Suits Unit Make Sawafuji, Note To suit E13C engine.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Weight 8.9kg, Product Group 1 ROTATING ELECTRICAL, Part No. SXS9807, Brand OEX, Description OEX Starter Motor 24V 11Th CW Sawafuji Style, Flange Diameter 122mm, Mount Centres B 147mm, Mount Hole Diameter 16, Overall Length 320mm.

OEX Starter Motor 24V 11Th CW Sawafuji Style. Part number SXS9807 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number SXS9807, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HINO 700 SERIES, HINO 700 SERIES 2004, HINO 700 SERIES 2005, HINO 700 SERIES 2006, HITACHI ZW310-5, HITACHI ZW310-5 2015. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by matching part number SXS9807, the 24V clockwise specification, the 11 tooth count, the E13C engine note, and the mounting dimensions against the existing starter before ordering.

FAQ

What part number should I match for this starter motor?

The listed part number is SXS9807. Matching the part number is the best first check before comparing the physical dimensions and electrical specification.

What voltage and rotation does this starter motor use?

It is a 24V starter motor with clockwise rotation. Those two details need to match the vehicle or equipment application.

How many teeth does the pinion have?

The pinion has 11 teeth. The listing also shows a pinion diameter of 48mm and a pinion at rest measurement of 48mm.

What engine is it noted to suit?

It is noted to suit the E13C engine. That is the engine reference provided, so it should be checked against the existing application rather than assumed from model name alone.

What mount and size details are provided?

The starter has a 3-hole mount, 156mm, 147mm, and 97mm mount centres, a 122mm flange diameter, a 16mm mount hole diameter, and an overall length of 320mm.

What warranty is listed?

The listed warranty is 3 years for passenger use and 1 year for commercial use. It is best to confirm which usage category applies before purchase.
