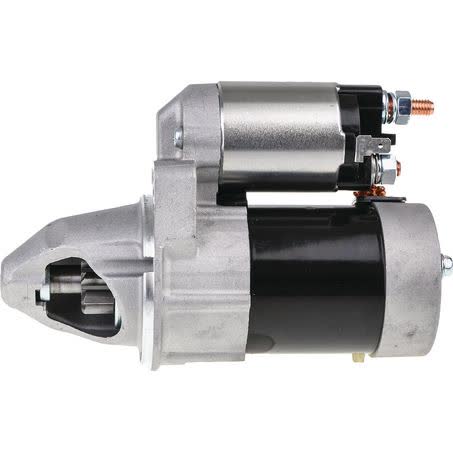

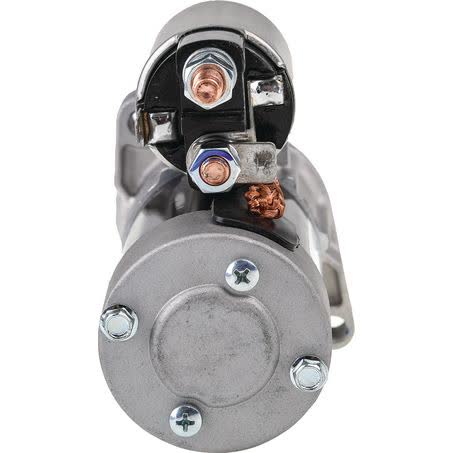

OEX Starter Motor 12V 8 Tooth CW Mitsubishi Style MXS2102

The OEX Starter Motor MXS2102 is a 12V, 8 tooth, clockwise rotation unit with a Mitsubishi style application. It is supplied as a new starter motor and weighs 2.08kg, with a 70mm flange diameter and 178mm overall length.

It uses a 2 hole starter mount type with 95mm mount centres A and M10x1.25 mount hole diameter. The pinion diameter is 28mm and the pinion at rest measurement is 28mm, which are important checks when comparing against the original unit.

OEX lists this starter motor under the rotating electrical product group and identifies the unit make as Mitsubishi. It is supplied with part number MXS2102 and is backed by a 3 year passenger / 1 year commercial warranty.

Key Features

• 12V starter motor
• 8 tooth pinion
• Clockwise rotation
• New unit
• Mitsubishi style application
• 2 hole mount type

Specifications

• Brand: OEX
• Product type: Starter Motor
• Part No.: MXS2102
• Voltage: 12V
• Number of teeth: 8
• Rotation: CW
• New / Reman.: New
• Unit of measure: Each

Fitment guidance

• Supported fitment data includes Mitsubishi applications.
• Mitsubishi Outlander is listed in the supplied fitment data.
• A Mitsubishi Outlander 2018 application is also shown in the supplied fitment data.

Application and Buying Notes

Before ordering, compare the part number MXS2102 and the physical measurements against the original starter motor on the vehicle. The key checkpoints here are 12V operation, 8 tooth pinion count, clockwise rotation, 70mm flange diameter, 95mm mount centres A, and the 2 hole mount arrangement.

The pinion measurements matter as much as the electrical rating. This unit lists a 28mm pinion diameter and 28mm pinion at rest, so matching the original starter’s nose and gear position is worth checking carefully before purchase.

Because the fitment data references Mitsubishi and Mitsubishi Outlander applications, it is sensible to confirm the exact model, year, and engine combination against the vehicle already fitted. A starter that physically mounts correctly still needs to match the application details and original unit specifications.

This starter is supplied new, not remanufactured, and the listed warranty is 3 year passenger / 1 year commercial. That warranty is a useful buying reference, but it does not replace a fitment check against the vehicle and the existing starter motor.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2102 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 95mm, Number of Teeth 8, Pinion at Rest 28mm, Rotation CW, New / Reman. New, Weight 2.08kg, Product Group 1 ROTATING ELECTRICAL.

Additional published details for cross-checking include Part No. MXS2102, Brand OEX, Description OEX Starter Motor 12V 8Th CW Mitsubishi Style, Flange Diameter 70mm, Mount Hole Diameter M10x1.25, Overall Length 178mm, Pinion Diameter 28mm, Suits Unit Make Mitsubishi, Starter Mount Type 2 Hole.

OEX Starter Motor 12V 8Th CW Mitsubishi Style. Part number MXS2102 should be checked first. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2102, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed electrical specification should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include MITSUBISHI OUTLANDER, MITSUBISHI OUTLANDER 2018. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment using part number MXS2102, the Mitsubishi application details provided, and the physical measurements before ordering. If the original starter differs in tooth count, rotation, mounting pattern, flange diameter, or pinion dimensions, do not assume interchangeability.

FAQ

What type of starter motor is this?

It is an OEX starter motor, 12V, with 8 teeth and clockwise rotation. The part number is MXS2102 and it is listed as a Mitsubishi style application. For this listing, part number MXS2102 is the main reference point. Published fitment references include MITSUBISHI OUTLANDER, MITSUBISHI OUTLANDER 2018. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

This is listed as new, not remanufactured. For this listing, part number MXS2102 is the main reference point. Published fitment references include MITSUBISHI OUTLANDER, MITSUBISHI OUTLANDER 2018. These details should still be checked against the original unit before ordering.

What mounting details are provided?

The starter uses a 2 hole mount type, with 95mm mount centres A and M10x1.25 mount hole diameter. The flange diameter is 70mm. For this listing, part number MXS2102 is the main reference point. Published fitment references include MITSUBISHI OUTLANDER, MITSUBISHI OUTLANDER 2018. These details should still be checked against the original unit before ordering.

What are the key size and weight details?

The overall length is 178mm, the weight is 2.08kg, and the pinion diameter is 28mm. The pinion at rest is also listed as 28mm. For this listing, part number MXS2102 is the main reference point. Published fitment references include MITSUBISHI OUTLANDER, MITSUBISHI OUTLANDER 2018. These details should still be checked against the original unit before ordering.

What vehicles are listed in the fitment data?

The supplied fitment data includes Mitsubishi applications, including Mitsubishi Outlander and Mitsubishi Outlander 2018. Exact fitment should still be confirmed against the vehicle and original starter. For this listing, part number MXS2102 is the main reference point. Published fitment references include MITSUBISHI OUTLANDER, MITSUBISHI OUTLANDER 2018. These details should still be checked against the original unit before ordering.

What warranty is supplied?

The warranty listed is 3 year passenger and 1 year commercial. For this listing, part number MXS2102 is the main reference point. Published fitment references include MITSUBISHI OUTLANDER, MITSUBISHI OUTLANDER 2018. These details should still be checked against the original unit before ordering.
