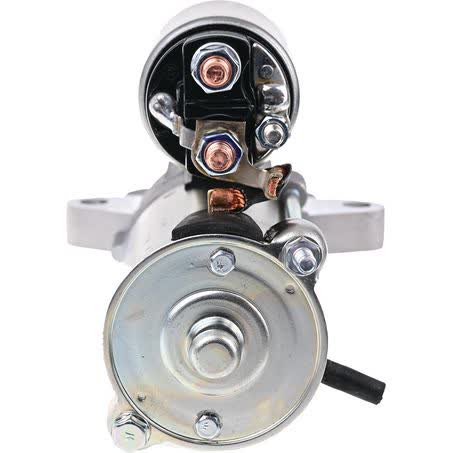

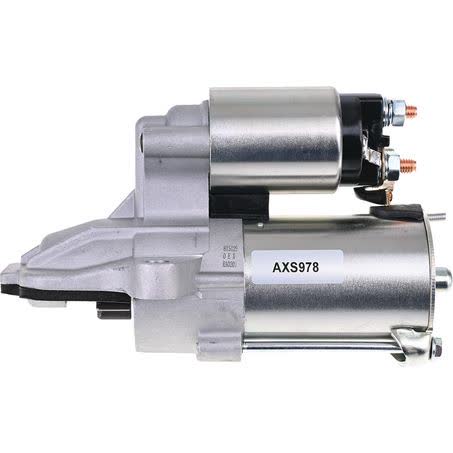

OEX Starter Motor 12V 11TH CW Autolite Style AXS978

The OEX Starter Motor AXS978 is a 12V starter motor with 11 teeth and clockwise rotation, built in an Autolite style application. It is a new unit with a pad starter mount type, and it suits a dry clutch setup.

Key physical dimensions are provided for checking against the vehicle before ordering: mount centres are 98mm, overall length is 214mm, flange diameter is 68mm, pinion diameter is 34mm, pinion at rest is 36mm, and the mount hole diameter is 10mm. The unit weighs 2.92kg.

This starter motor is rated at 1.4kW and is sold as each. The listed part number is AXS978, which is the most useful reference when matching the replacement to the vehicle application or comparing against the existing starter.

Key Features

• 12V starter motor
• 11-tooth pinion
• Clockwise rotation
• Autolite style application
• Pad mount type
• New unit

Specifications

• Power rating: 1.4kW
• Voltage: 12V
• Number of teeth: 11
• Rotation: CW
• Starter mount type: Pad
• Mount centres A: 98mm
• Overall length: 214mm
• Flange diameter: 68mm

Fitment guidance

• Fitment information supplied includes Ford, Ford Focus and Ford Mondeo applications.
• Ford Focus applications are listed across multiple years, including 2005, 2006, 2007, 2008, 2009, 2011, 2012, 2013, 2014 and 2015.
• Ford Mondeo is also included in the supplied fitment group.
• Use the part number, rotation, tooth count, mount type and dimensions to confirm the replacement before ordering.

Application and Buying Notes

When replacing a starter motor, the safest check is to compare the existing unit against AXS978 using the part number, 12V system voltage, 11-tooth pinion and clockwise rotation. The Autolite style application and pad mount type need to match the vehicle setup, not just the general make or model name.

The listed measurements matter. Mount centres of 98mm, a 68mm flange diameter, 214mm overall length, a 34mm pinion diameter and a 36mm pinion at rest are all practical confirmation points when checking the original starter. If any of these differ on the vehicle, the part may not be the correct replacement.

This unit is a 1.4kW starter motor and is intended for a dry clutch application. Those details are important when comparing like-for-like parts, especially if the vehicle has been repaired before, the original unit has been replaced previously, or the application details are unclear.

The warranty is listed as 3 years for passenger use and 1 year for commercial use. That does not remove the need to confirm fitment first, but it does provide a clear usage-based warranty reference once the correct application has been verified.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number AXS978 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 98mm, Number of Teeth 11, Pinion at Rest 36mm, Power Rating 1.4kW, Suits Unit Make Autolite, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. AXS978, Brand OEX, Description OEX Starter Motor 12V 11Th CW Autolite Style, Flange Diameter 68mm, Mount Hole Diameter 10, Overall Length 214mm, Pinion Diameter 34mm, Rotation CW.

OEX Starter Motor 12V 11Th CW Autolite Style. Part number AXS978 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number AXS978, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD FOCUS, FORD FOCUS 2005, FORD FOCUS 2006, FORD FOCUS 2007. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using the part number AXS978, the 12V 11-tooth clockwise Autolite style specification, and the listed dimensions before purchase. If the existing starter differs in mount style, tooth count, rotation, or measurements, do not assume it will interchange.

FAQ

What is the part number for this starter motor?

The listed part number is AXS978. For this listing, part number AXS978 is the main reference point. Listed voltage is 12. Published fitment references include FORD FOCUS, FORD FOCUS 2005, FORD FOCUS 2006. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number AXS978 is the main reference point. Listed voltage is 12. Published fitment references include FORD FOCUS, FORD FOCUS 2005, FORD FOCUS 2006. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The starter motor has 11 teeth. For this listing, part number AXS978 is the main reference point. Listed voltage is 12. Published fitment references include FORD FOCUS, FORD FOCUS 2005, FORD FOCUS 2006. These details should still be checked against the original unit before ordering.

What rotation does it use?

The rotation is clockwise (CW). For this listing, part number AXS978 is the main reference point. Listed voltage is 12. Published fitment references include FORD FOCUS, FORD FOCUS 2005, FORD FOCUS 2006. These details should still be checked against the original unit before ordering.

What vehicles are included in the supplied fitment information?

The supplied fitment information includes Ford, Ford Focus and Ford Mondeo applications, with Ford Focus shown across multiple model years including 2005 through 2015 in the grouped preview provided. For this listing, part number AXS978 is the main reference point. Listed voltage is 12. Published fitment references include FORD FOCUS, FORD FOCUS 2005, FORD FOCUS 2006. These details should still be checked against the original unit before ordering.

What should I check before ordering?

Check the part number AXS978, 12V rating, 11-tooth count, clockwise rotation, Autolite style application, pad mount type and the listed dimensions, especially the 98mm mount centres and 214mm overall length. For this listing, part number AXS978 is the main reference point. Listed voltage is 12. Published fitment references include FORD FOCUS, FORD FOCUS 2005, FORD FOCUS 2006. These details should still be checked against the original unit before ordering.
