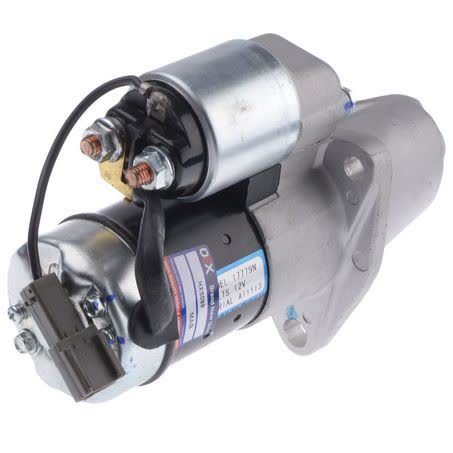

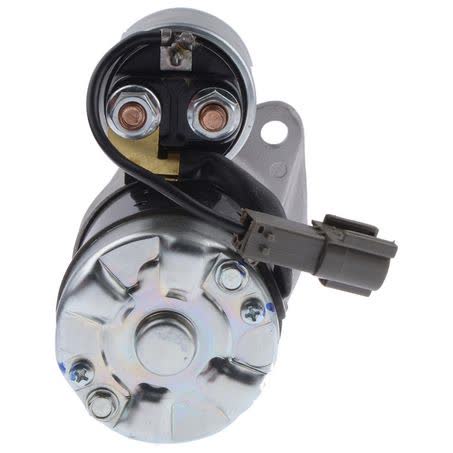

OEX Starter Motor 12V 1.4KW 11 Tooth CCW Hitachi Style HXS088

The OEX Starter Motor HXS088 is a 12V, 1.4kW starter motor with 11 teeth and CCW rotation. It is listed as a Hitachi style unit and uses a 2 hole starter mount, with 96mm mount centres and 75mm flange diameter for application checking.

This is a new starter motor, supplied each, with a pinion at rest measurement of 55mm, pinion diameter of 35mm, and an overall length of 226mm. The unit weight is 3.12kg, and the mount hole diameter is listed as 10 / 13, which are useful dimensions to confirm against the original starter before ordering.

OEX identifies this part as suitable for Hitachi unit make applications, and the note advises that 8th, 9th, 10th and 11th units will interchange. That interchange note is helpful, but the correct fit still needs to be confirmed against the vehicle application, the original starter details, and the part number HXS088.

Key Features

• 12V starter motor
• 1.4kW power rating
• 11 tooth pinion
• CCW rotation
• Hitachi style application
• 2 hole starter mount

Specifications

• Brand: OEX
• Product type: Starter motor
• Part No.: HXS088
• Voltage: 12V
• Power rating: 1.4kW
• Rotation: CCW
• Number of teeth: 11
• Suits unit make: Hitachi

Fitment guidance

• Listed fitment support includes Nissan 300ZX, Nissan Elgrand, Nissan Maxima, Nissan Maxima / Maxima QX, Nissan Pathfinder, Nissan Skyline, and Nissan Stagea.
• The provided application preview specifically shows Nissan 300ZX model years 1989 through 1997, and Nissan Elgrand 2004 among the samples.
• The note supplied with the part states that 8th, 9th, 10th and 11th units will interchange.
• Because starter motor fitment depends on matching the mounting pattern, rotation, tooth count, and unit style, the original starter should be checked against the dimensions and identifiers listed here before purchase.

Application and Buying Notes

Before ordering, compare the original starter to the key identifiers on this unit: HXS088, 12V, 1.4kW, 11 teeth, CCW rotation, and Hitachi style. Those details matter because starter motors can look similar while differing in rotation, tooth count, mount style, or overall size.

The mounting dimensions are also important. This unit is listed with a 2 hole starter mount, 96mm mount centres, 75mm flange diameter, 10 / 13 mount hole diameter, 226mm overall length, and 35mm pinion diameter. If any of those measurements differ from the unit being replaced, the part should be checked carefully before fitting.

The interchange note for 8th, 9th, 10th and 11th units provides useful guidance, but it should not replace a direct comparison. The safest approach is to confirm the vehicle application, the starter make, and the part number together, especially on older or previously repaired vehicles where an incorrect starter may already be fitted.

Warranty coverage is listed as 3 years for passenger applications and 1 year for commercial applications. If the vehicle is used commercially, it is worth confirming that the intended use matches the warranty category before ordering, along with the starter’s 12V electrical system requirement and dry clutch configuration.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number HXS088 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 96mm, Number of Teeth 11, Pinion at Rest 55mm, Power Rating 1.4kW, Suits Unit Make Hitachi, Note 8th, 9th,10th and 11th units will interchange, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 3.12kg, Product Group 1 ROTATING ELECTRICAL, Part No. HXS088, Brand OEX, Description OEX Starter Motor 12V 11Th CCW Hitachi Style, Flange Diameter 75mm, Mount Hole Diameter 10 / 13, Overall Length 226mm, Pinion Diameter 35mm, Rotation CCW.

OEX Starter Motor 12V 11Th CCW Hitachi Style. Part number HXS088 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number HXS088, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include NISSAN 300ZX, NISSAN 300ZX 1989, NISSAN 300ZX 1990, NISSAN 300ZX 1991. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment using the part number HXS088, the 12V 1.4kW specification, 11 tooth CCW configuration, Hitachi style application, and all mounting dimensions before purchase. Do not rely on appearance alone when checking compatibility.

FAQ

What is the part number for this starter motor?

The part number listed is HXS088.

What voltage and power rating does it have?

It is a 12V starter motor with a 1.4kW power rating.

What rotation and tooth count does it use?

This starter motor has CCW rotation and 11 teeth.

What type of unit is it suited to?

It is listed as a Hitachi style starter motor and suits Hitachi unit make applications.

Are any interchange notes supplied?

Yes. The note states that 8th, 9th, 10th and 11th units will interchange.

What warranty is listed?

The warranty is listed as 3 years for passenger use and 1 year for commercial use.
