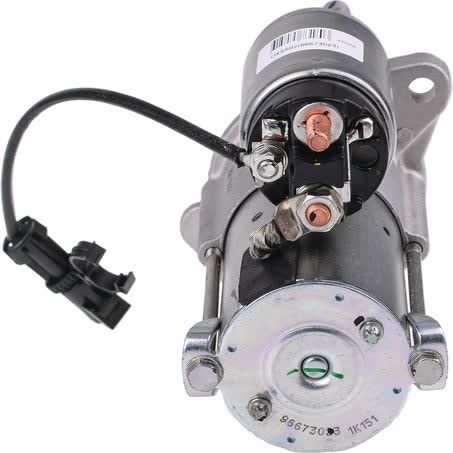

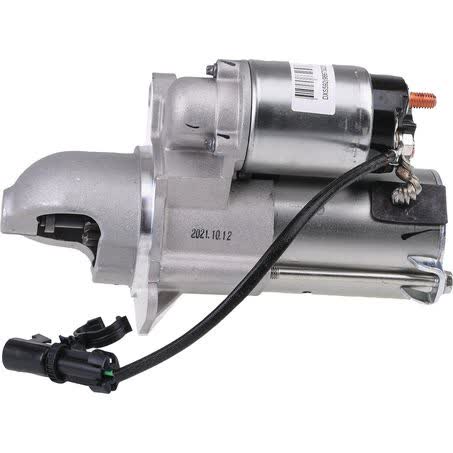

OEX Starter Motor 12V 10T CW Denso DXS592

The OEX starter motor DXS592 is a new 12V unit with 10 teeth, clockwise rotation, and a 1.4kW power rating. It is listed with a Denso unit make, a 2 hole starter mount, 97mm mount centres, and an overall length of 209mm.

This starter motor suits dry clutch applications and has a flange diameter of 68mm, a mount hole diameter of 10mm, a pinion diameter of 28mm, and a pinion at rest measurement of 29mm. Those measurements matter when matching the replacement unit to the original starter on the vehicle.

OEX identifies this part as being made using OE components for fit and function, and the brand states its products are sourced from ISO9001 certified factories. It is covered by a 3 year passenger / 1 year commercial warranty, which is useful to confirm before ordering for the vehicle and duty cycle you have in mind.

Key Features

• 12V starter motor
• 10 tooth pinion
• Clockwise rotation
• 1.4kW power rating
• New unit
• Dry clutch application

Specifications

• Voltage: 12V
• Power rating: 1.4kW
• Number of teeth: 10
• Rotation: CW
• Suits unit make: Denso
• Starter mount type: 2 hole
• Mount centres A: 97mm
• Flange diameter: 68mm

Fitment guidance

• Fitment listed for Holden Captiva 5
• Fitment listed for Holden Captiva 7
• Model years shown in the supplied fitment data include 2006, 2007, 2008, 2009, 2010 and 2011 for the Captiva ranges
• Confirm the original starter details against the part number DXS592 and the physical measurements before ordering

Application and Buying Notes

When checking this starter motor, compare the part number DXS592 and the key dimensions first: 12V, 10 teeth, CW rotation, 1.4kW, 97mm mount centres, 68mm flange diameter and 209mm overall length. Those details are the most practical way to narrow down whether the replacement matches the starter already fitted to the vehicle.

The unit is described as a Denso application and a dry clutch type, so the original unit should be checked for the same mounting style and operating arrangement. A 2 hole starter mount and 10mm mount hole diameter are useful confirmation points when comparing the old starter on the bench.

Weight is listed at 2.98kg, and the pinion measurements are 28mm diameter with 29mm at rest. These figures do not replace vehicle identification, but they are helpful for confirming that the replacement starter is the correct physical match and not just similar in appearance.

The supplied fitment information points to Holden Captiva 5 and Holden Captiva 7 applications, including 2006 through 2011 in the grouped preview. Even where a model name appears in the fitment data, it is still wise to confirm the exact vehicle configuration and compare the starter against the original unit before purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS592 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 97mm, Number of Teeth 10, Pinion at Rest 29mm, Power Rating 1.4kW, Suits Unit Make Denso, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. DXS592, Brand OEX, Description OEX Starter Motor 12V 10Th CW Denso, Flange Diameter 68mm, Mount Hole Diameter 10, Overall Length 209mm, Pinion Diameter 28mm, Rotation CW.

OEX Starter Motor 12V 10Th CW Denso. Part number DXS592 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS592, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HOLDEN CAPTIVA 5, HOLDEN CAPTIVA 5 2006, HOLDEN CAPTIVA 5 2007, HOLDEN CAPTIVA 5 2008. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment using the part number DXS592, the Denso unit make, the 12V 10 tooth CW specification, and the listed mounting and dimension details before ordering.

FAQ

What is the part number for this starter motor?

The part number listed is DXS592. For this listing, part number DXS592 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN CAPTIVA 5, HOLDEN CAPTIVA 5 2006, HOLDEN CAPTIVA 5 2007. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as a new starter motor. For this listing, part number DXS592 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN CAPTIVA 5, HOLDEN CAPTIVA 5 2006, HOLDEN CAPTIVA 5 2007. These details should still be checked against the original unit before ordering.

What voltage and rotation does it have?

It is a 12V unit with clockwise rotation. For this listing, part number DXS592 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN CAPTIVA 5, HOLDEN CAPTIVA 5 2006, HOLDEN CAPTIVA 5 2007. These details should still be checked against the original unit before ordering.

What are the main mounting dimensions?

The listed mounting details are 97mm mount centres, 68mm flange diameter, 10mm mount hole diameter, and a 2 hole starter mount. For this listing, part number DXS592 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN CAPTIVA 5, HOLDEN CAPTIVA 5 2006, HOLDEN CAPTIVA 5 2007. These details should still be checked against the original unit before ordering.

Which unit make does it suit?

It is listed as suiting Denso unit make. For this listing, part number DXS592 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN CAPTIVA 5, HOLDEN CAPTIVA 5 2006, HOLDEN CAPTIVA 5 2007. These details should still be checked against the original unit before ordering.

What warranty is listed?

The warranty is listed as 3 year passenger and 1 year commercial. For this listing, part number DXS592 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN CAPTIVA 5, HOLDEN CAPTIVA 5 2006, HOLDEN CAPTIVA 5 2007. These details should still be checked against the original unit before ordering.
