OEX Starter Motor 12V 8TH CW Mitsubishi Style MXS2015

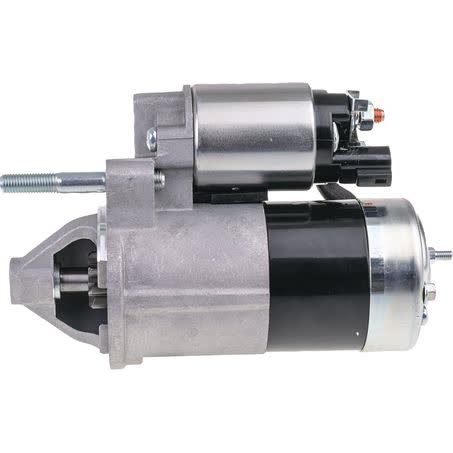

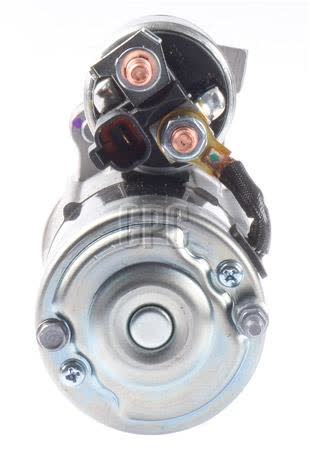

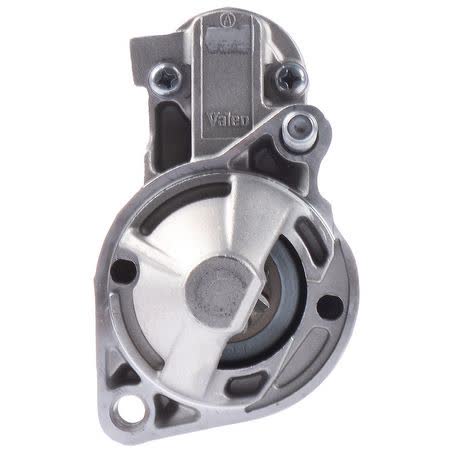

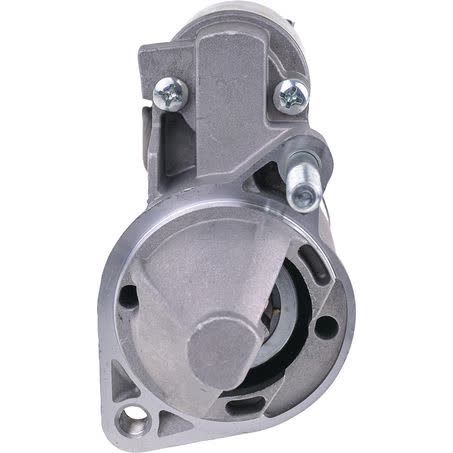

The OEX MXS2015 is a new 12V starter motor in Mitsubishi style with 8 teeth and clockwise rotation. It is a 2-hole starter with a 70mm flange diameter, 98mm mount centres, and a 194mm overall length, so it is important to compare the physical dimensions and mounting layout before ordering.

Key identifiers for this unit include part number MXS2015, voltage 12V, power rating 1.2kW, and mount hole diameter M10x1.25. The pinion at rest is 10mm and the pinion diameter is 26.5mm, which makes it essential to check the existing starter and bellhousing clearance requirements on the vehicle before fitment.

OEX states this product is sourced from market-leading original equipment manufacturers and aftermarket suppliers, with supply from ISO certified factories. It is backed by a 3 year passenger / 1 year commercial warranty, and is listed as suitable for Mitsubishi unit applications where the listed starter configuration matches.

Key Features

• New starter motor
• 12V, 1.2kW output
• 8-tooth pinion
• Clockwise rotation
• 2-hole starter mount
• Mitsubishi style application

Specifications

• Part number: MXS2015
• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Power rating: 1.2kW
• Rotation: CW
• Number of teeth: 8
• Starter mount type: 2 hole

Fitment guidance

• Listed as suitable for Mitsubishi unit applications.
• A separate note states: for a unit requiring an unthreaded bottom hole, use MXS297.
• Fitment data supplied includes Hyundai and Kia applications, but the safest check is to match the physical specifications and part number before purchase.

Application and Buying Notes

Before ordering, compare the starter you are replacing with the listed details for MXS2015: 12V, 1.2kW, 8 teeth, clockwise rotation, 2-hole mounting, 98mm mount centres, and a 70mm flange diameter. These measurements are the best checks for confirming whether the unit is the same style as the one already fitted.

The mount hole thread is M10x1.25, and the note about an unthreaded bottom hole is important. If your vehicle or existing starter requires an unthreaded bottom hole, the alternative part specified is MXS297, so this is one of the first points to confirm when comparing units.

Because starter motors must match the pinion and mounting arrangement as well as the electrical rating, it is worth checking the 10mm pinion at rest, 26.5mm pinion diameter, and 194mm overall length against the original part. A close match on the part number and these dimensions gives the best chance of correct installation.

The listed applications indicate Mitsubishi unit usage, and the fitment preview also shows Hyundai and Kia model families in the data set. Even so, model names alone are not enough to confirm suitability, because starter configuration can vary between builds and years. Always verify the original starter, the mounting pattern, and the replacement part number before buying.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2015 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 98mm, Number of Teeth 8, Pinion at Rest 10mm, Power Rating 1.2kW, Suits Unit Make Mitsubishi, Note For unit requiring unthreaded bottom hole, use MXS297, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. MXS2015, Brand OEX, Description OEX Starter Motor 12V 8Th CW Mitsubishi Style, Flange Diameter 70mm, Mount Hole Diameter M10x1.25, Overall Length 194mm, Pinion Diameter 26.5mm.

OEX Starter Motor 12V 8Th CW Mitsubishi Style. Part number MXS2015 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2015, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HYUNDAI GRANDEUR, HYUNDAI GRANDEUR 1999, HYUNDAI GRANDEUR 2000, HYUNDAI GRANDEUR 2001, KIA CARNIVAL / GRAND CARNIVAL, KIA CARNIVAL / GRAND CARNIVAL 2006. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching part number MXS2015, 12V, 1.2kW, 8-tooth clockwise configuration, 2-hole mounting, and the listed dimensions against your original unit before purchase.

FAQ

What is the part number for this starter motor?

The part number is MXS2015. For this listing, part number MXS2015 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI GRANDEUR, HYUNDAI GRANDEUR 1999, HYUNDAI GRANDEUR 2000. These details should still be checked against the original unit before ordering.

What voltage does this starter motor use?

It is a 12V starter motor. For this listing, part number MXS2015 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI GRANDEUR, HYUNDAI GRANDEUR 1999, HYUNDAI GRANDEUR 2000. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 8 teeth. For this listing, part number MXS2015 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI GRANDEUR, HYUNDAI GRANDEUR 1999, HYUNDAI GRANDEUR 2000. These details should still be checked against the original unit before ordering.

Does this starter motor rotate clockwise or counter-clockwise?

It is listed as clockwise rotation (CW). For this listing, part number MXS2015 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI GRANDEUR, HYUNDAI GRANDEUR 1999, HYUNDAI GRANDEUR 2000. These details should still be checked against the original unit before ordering.

What mounting details are listed for this unit?

It is a 2-hole starter with 98mm mount centres, M10x1.25 mount hole diameter, and a 70mm flange diameter. For this listing, part number MXS2015 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI GRANDEUR, HYUNDAI GRANDEUR 1999, HYUNDAI GRANDEUR 2000. These details should still be checked against the original unit before ordering.

Is there an alternative part mentioned if the bottom hole is unthreaded?

Yes. The note states that for a unit requiring an unthreaded bottom hole, use MXS297. For this listing, part number MXS2015 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI GRANDEUR, HYUNDAI GRANDEUR 1999, HYUNDAI GRANDEUR 2000. These details should still be checked against the original unit before ordering.
