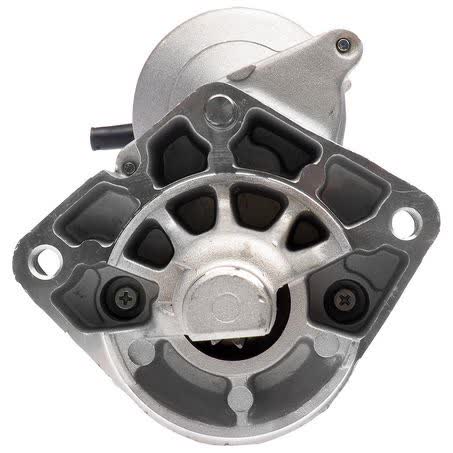

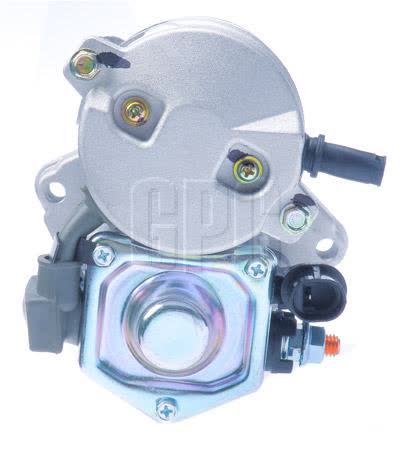

OEX Starter Motor 12V 10 Tooth CW Denso Style DXS4015

The OEX DXS4015 is a new 12V starter motor with 10 teeth and clockwise rotation, built in a Denso style layout. It is listed with a 2-hole starter mount, 112mm mount centres, an 81mm flange diameter, and a mounting dowel installed, which are all useful checks when matching the unit to the vehicle application.

This starter motor carries a 1.2kW power rating, a 27mm pinion diameter, 4mm pinion at rest, and an M10 x 1.25 mount hole diameter. It is supplied as an each unit and weighs 4.12kg, so it is a substantial rotating electrical component rather than a universal fit item.

The part number is DXS4015 and the description identifies it as an OEX Starter Motor 12V 10Th CW Denso Style. OEX products are sourced from market leading original equipment manufacturers and aftermarket suppliers, are sourced from ISO certified factories, and are backed by a comprehensive nationwide warranty.

Key Features

• 12V starter motor
• 10 tooth pinion
• Clockwise rotation
• Denso style unit
• New replacement part
• Mounting dowel installed

Specifications

• Part No.: DXS4015
• Brand: OEX
• Type: Starter Motor
• Voltage: 12V
• Power Rating: 1.2kW
• Rotation: CW
• Number of Teeth: 10
• Suits Unit Make: Denso

Fitment details supplied

• Chrysler Voyager
• Chrysler Voyager / Grand Voyager
• Chrysler Voyager / Grand Voyager 1995
• Chrysler Voyager / Grand Voyager 1996
• Chrysler Voyager / Grand Voyager 1997
• Chrysler Voyager / Grand Voyager 1998
• Chrysler Voyager / Grand Voyager 1999
• Chrysler Voyager / Grand Voyager 2000

Application and Buying Notes

Before ordering, match the part number DXS4015 and check the starter details against the vehicle already fitted. The important points here are 12V voltage, clockwise rotation, 10 teeth, 2-hole mount type, 112mm mount centres, and the 81mm flange diameter. If any of those points differ, the starter may not be the correct unit for your application.

The Denso style designation and the note that a mounting dowel is installed are also practical checks. That is especially relevant where the existing starter has a similar layout but different mounting features, pinion dimensions, or overall length. The listed overall length is 225mm and the pinion diameter is 27mm, so it is worth comparing those measurements before purchase.

The fitment list supplied includes Chrysler Voyager and Chrysler Voyager / Grand Voyager applications across 1995 to 2002, plus Chrysler Voyager 2000, 2001, and 2002. Even with those application notes, final confirmation should still be made using the vehicle details, the old starter motor, and the part number DXS4015 to avoid ordering the wrong unit.

This is a new starter motor, not a remanufactured one, and it is listed as a dry clutch unit. For practical comparison, the pinion at rest is 4mm and the mount hole diameter is M10 x 1.25, both of which can help when checking the replacement against the original component.

Warranty coverage is listed as 3 years for passenger use and 1 year for commercial use. That warranty detail sits alongside the product’s stated 1.2kW power rating and 4.12kg weight, which are useful indicators when comparing like-for-like starter motors rather than relying on appearance alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS4015 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 112mm, Number of Teeth 10, Pinion at Rest 4mm, Power Rating 1.2kW, Suits Unit Make Denso, Note Mounting Dowel Installed, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. DXS4015, Brand OEX, Description OEX Starter Motor 12V 10Th CW Denso Style, Flange Diameter 81mm, Mount Hole Diameter M10 x 1.25, Overall Length 225mm, Pinion Diameter 27mm.

OEX Starter Motor 12V 10Th CW Denso Style. Part number DXS4015 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS4015, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CHRYSLER VOYAGER, CHRYSLER VOYAGER / GRAND VOYAGER, CHRYSLER VOYAGER / GRAND VOYAGER 1995, CHRYSLER VOYAGER / GRAND VOYAGER 1996. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment with part number DXS4015, the Denso style application, and the exact vehicle mounting details before ordering. The listed Chrysler Voyager and Voyager / Grand Voyager applications should be checked against the existing starter motor and vehicle build details.

FAQ

What is the part number for this starter motor?

The part number is DXS4015.

What voltage is the OEX starter motor?

It is a 12V starter motor.

How many teeth does the pinion have?

The pinion has 10 teeth.

What rotation does this starter motor use?

It is listed as clockwise rotation.

What vehicle applications are supplied with this listing?

The supplied fitment includes Chrysler Voyager and Chrysler Voyager / Grand Voyager applications, including 1995 through 2002 references, plus Chrysler Voyager 2000, 2001, and 2002.

What warranty is listed for this part?

The warranty is listed as 3 years for passenger use and 1 year for commercial use.
