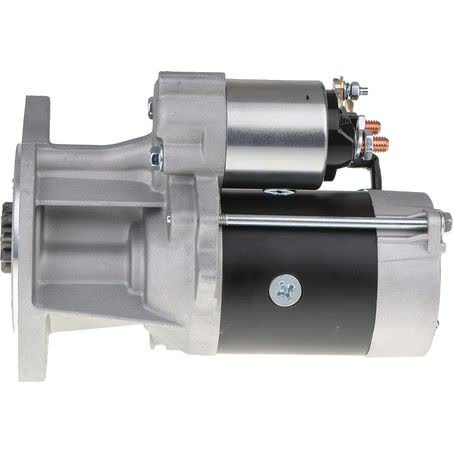

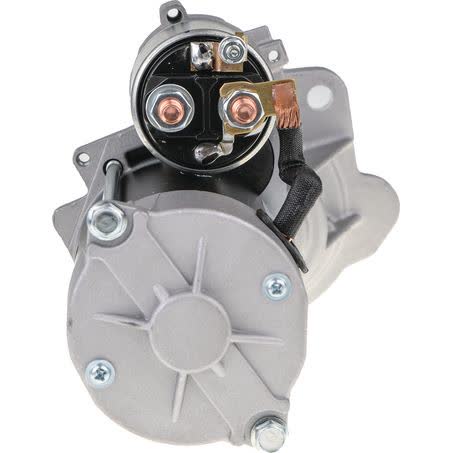

OEX Starter Motor 12V 9 Tooth CW Hitachi Style HXS089

The OEX starter motor in this listing is a 12V, clockwise rotation unit with 9 teeth and a 2.5kW power rating. It is a new starter motor, supplied as each, and identified by part number HXS089.

It is described as Hitachi style and suits unit make Hitachi, with a 2-hole starter mount type, 120mm mount centres, a 95mm flange diameter, and 11mm mount hole diameter. Those mounting dimensions are the main checks to compare against the vehicle’s existing starter position before ordering.

Physical dimensions are also important with this unit: overall length is 212mm, pinion diameter is 35mm, and pinion at rest is 11mm. The weight is listed at 4.74kg, which can help when comparing against the unit being replaced.

Key Features

• 12V starter motor
• 9 tooth pinion
• Clockwise rotation
• 2.5kW power rating
• New unit
• Hitachi style

Specifications

• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 9
• Power rating: 2.5kW
• Suits unit make: Hitachi
• Starter mount type: 2 hole

Fitment guidance

• Fitment has been provided against multiple Isuzu and Nissan applications, including Isuzu Elf and Nissan Cabstar.
• Listed fitment also includes Nissan Caravan and Nissan Industrial applications.
• Further fitment references are shown for Nissan Industrial Forklift, Nissan Navara, Nissan Patrol, Nissan Terrano, Nissan Terrano II and Nissan Urvan.
• Because starter fitment depends on mounting pattern, pinion setup and rotation, use the part number HXS089 and the measured dimensions to confirm the match before purchase.

Application and Buying Notes

Before buying, compare the existing starter against the listed mounting details: 2-hole starter mount, 120mm mount centres, 95mm flange diameter, and 11mm mount hole diameter. These measurements matter as much as the vehicle name, especially on Hitachi style applications where similar-looking starters can differ in bolt pattern or body size.

The electrical and drive specifications should also be checked carefully. This unit is 12V, has a 9 tooth pinion, rotates clockwise, and is rated at 2.5kW. Matching voltage, rotation, tooth count and pinion size is essential when replacing a starter motor, because a mismatch can stop the unit from engaging correctly.

This starter is marked as new and backed by a 3yr Passenger 1yr Commercial warranty. Warranty terms do not replace fitment checking, but they do provide useful context when selecting a replacement starter for workshop or retail use. The listed weight of 4.74kg and overall length of 212mm can also help when comparing the old unit to the replacement.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number HXS089 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 120mm, Number of Teeth 9, Pinion at Rest 11mm, Power Rating 2.5kW, Suits Unit Make Hitachi, Note The option offered is to be checked for suitability, the unit may be obstructed by the dipstick, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 4.74kg, Product Group 1 ROTATING ELECTRICAL, Part No. HXS089, Brand OEX, Description OEX Starter Motor 12V 9Th CW Hitachi Style, Flange Diameter 95mm, Mount Hole Diameter 11, Overall Length 212mm, Pinion Diameter 35mm, Rotation CW.

OEX Starter Motor 12V 9Th CW Hitachi Style. Part number HXS089 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number HXS089, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include ISUZU ELF, ISUZU ELF 1997, ISUZU ELF 1998, ISUZU ELF 1999, NISSAN CABSTAR, NISSAN CABSTAR 1987. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by checking part number HXS089, the 12V clockwise 9 tooth specification, and the 2-hole mounting dimensions before ordering. If the vehicle is one of the listed Isuzu or Nissan applications, still compare the existing starter’s physical measurements and clearance around the dipstick to avoid a mismatch.

FAQ

Is this starter motor new or remanufactured?

It is listed as new, not remanufactured. For this listing, part number HXS089 is the main reference point. Listed voltage is 12. Published fitment references include ISUZU ELF, ISUZU ELF 1997, ISUZU ELF 1998. These details should still be checked against the original unit before ordering.

What is the part number for this starter motor?

The part number is HXS089. For this listing, part number HXS089 is the main reference point. Listed voltage is 12. Published fitment references include ISUZU ELF, ISUZU ELF 1997, ISUZU ELF 1998. These details should still be checked against the original unit before ordering.

What voltage does this starter use?

It is a 12V starter motor. For this listing, part number HXS089 is the main reference point. Listed voltage is 12. Published fitment references include ISUZU ELF, ISUZU ELF 1997, ISUZU ELF 1998. These details should still be checked against the original unit before ordering.

What rotation does the unit have?

The starter is clockwise rotation, shown as CW. For this listing, part number HXS089 is the main reference point. Listed voltage is 12. Published fitment references include ISUZU ELF, ISUZU ELF 1997, ISUZU ELF 1998. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

It has 9 teeth. For this listing, part number HXS089 is the main reference point. Listed voltage is 12. Published fitment references include ISUZU ELF, ISUZU ELF 1997, ISUZU ELF 1998. These details should still be checked against the original unit before ordering.

What should be checked before fitting?

Check the 2-hole mounting pattern, 120mm mount centres, 95mm flange diameter, 11mm mount hole diameter, and the note about possible dipstick obstruction before purchase or installation. For this listing, part number HXS089 is the main reference point. Listed voltage is 12. Published fitment references include ISUZU ELF, ISUZU ELF 1997, ISUZU ELF 1998. These details should still be checked against the original unit before ordering.
