OEX Starter Motor 24V 11 Tooth CW Mitsubishi Style MXS2016

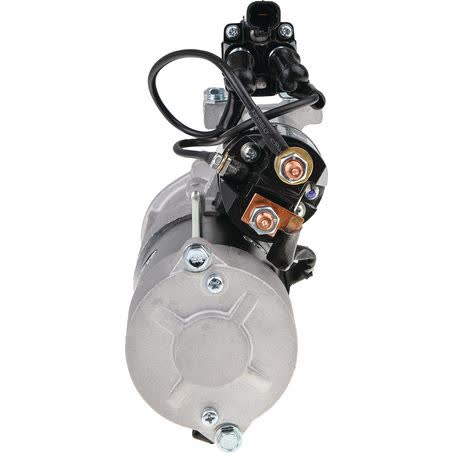

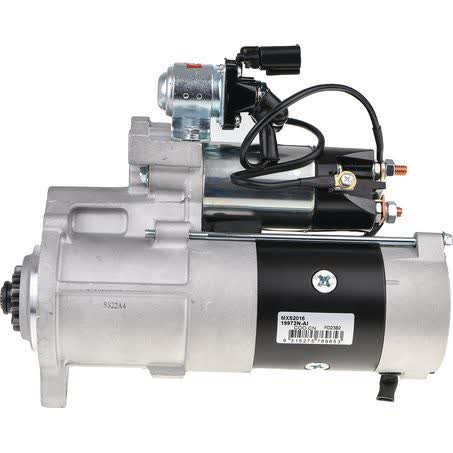

The OEX MXS2016 starter motor is a 24V unit with 11 teeth and clockwise rotation, supplied as a new starter motor for Mitsubishi-style applications. It is listed with a 4.3kW power rating, a 3 hole starter mount type, and an overall length of 274mm, so the physical dimensions and mounting layout are key checks before purchase.

Mounting details include 110mm mount centres A, 75mm mount centres B, and 64mm mount centres C, with a 66mm flange diameter and M12x1.5 / 13 mount hole diameter. The pinion diameter is 40mm and pinion at rest is 17.5mm, which are important reference points when comparing the old unit to the replacement.

This starter is described as Mitsubishi style and suits Mitsubishi unit make. It is a dry clutch starter motor, weighs 6.8kg, and is backed by a 3 year passenger / 1 year commercial warranty. For buyers replacing an existing unit, the part number MXS2016 and the listed dimensions are the safest identifiers to work from.

Key Features

• 24V starter motor
• 11 tooth pinion
• Clockwise rotation
• 4.3kW power rating
• New unit
• 3 hole starter mount

Specifications

• Brand: OEX
• Product type: Starter motor
• Part number: MXS2016
• Voltage: 24V
• Number of teeth: 11
• Rotation: CW
• Power rating: 4.3kW
• Starter mount type: 3 hole

Fitment information supplied

• Suits Mitsubishi unit make
• Mitsubishi Fuso applications are listed in the supplied fitment data
• Kato applications are listed in the supplied fitment data
• Examples shown in the fitment data include Mitsubishi Fuso Aero Midi, Aero Star, Canter, Fighter and Rosa
• Examples shown in the fitment data include Kato HD820-6, HD820-R5, HD820V and HD823MR-6
• Year references appearing in the fitment data include 1997 through 2018 across different applications
• Because the fitment list includes multiple makes and model families, the existing starter motor should be matched against the part number and physical measurements before ordering

Application and Buying Notes

When comparing this MXS2016 starter motor to the original unit, check the 24V specification first, then confirm the 11 tooth pinion, clockwise rotation, and 3 hole mounting pattern. The listed mount centres of 110mm, 75mm, and 64mm, together with the 66mm flange diameter and 274mm overall length, are the most useful physical checks for a direct replacement.

The pinion at rest measurement of 17.5mm and the 40mm pinion diameter should also be compared with the removed starter, especially where access is limited and only partial visual checks are possible. On starter motors, small differences in mounting style or pinion position can prevent a correct install even when the unit looks similar.

This starter is intended for Mitsubishi style applications and the fitment data also references Mitsubishi Fuso and Kato applications. If your vehicle or machine is among those families, use the part number MXS2016, the 24V rating, and the mount centre measurements together rather than relying on appearance alone.

The unit is new, not remanufactured, and is listed as a dry clutch starter motor. That matters where the original starter was removed from a dry clutch application, because the mounting and operating details need to line up with the existing arrangement before installation.

Warranty coverage is listed as 3 year passenger and 1 year commercial, so the intended use should be considered when comparing options. The 6.8kg weight, M12x1.5 / 13 mount hole diameter, and 4.3kW power rating provide further reference points if you are confirming the correct replacement at the bench or over the counter.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2016 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 110mm, Mount Centres C 64mm, Number of Teeth 11, Pinion at Rest 17.5mm, Power Rating 4.3kW, Suits Unit Make Mitsubishi, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. MXS2016, Brand OEX, Description OEX Starter Motor 24V 11Th CW Mitsubishi Style, Flange Diameter 66mm, Mount Centres B 75mm, Mount Hole Diameter M12x1.5 / 13, Overall Length 274mm.

OEX Starter Motor 24V 11Th CW Mitsubishi Style. Part number MXS2016 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2016, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FE2) 2002, FE2) 2005, FE6) 1997, FE6) 1998, FE6) 1999, FE6) 2000. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching part number MXS2016, the 24V specification, 11 tooth CW configuration, and the listed mounting dimensions against the removed unit and vehicle application details before ordering.

FAQ

What is the part number for this starter motor?

The part number is MXS2016.

Is this a 12V or 24V starter motor?

It is a 24V starter motor.

How many teeth does the pinion have?

The starter motor has 11 teeth.

What direction does this starter rotate?

It is listed as clockwise rotation, shown as CW.

Is this starter motor new or remanufactured?

It is listed as new.

What should I check before buying it?

Check the part number MXS2016, the 24V rating, 11 tooth CW configuration, and the mounting measurements of 110mm, 75mm, and 64mm against the existing starter motor and application details.
