OEX Starter Motor 12V 8T CW Mitsubishi Style MXS2036

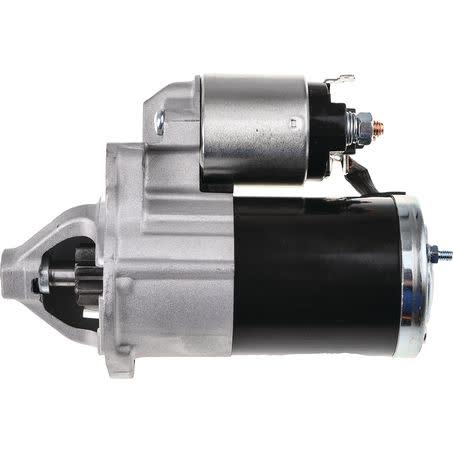

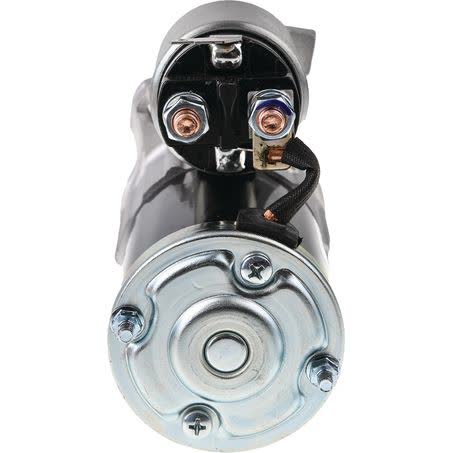

The OEX starter motor MXS2036 is a new 12V unit in Mitsubishi style, built as an 8 tooth, clockwise rotation starter motor with a 1.4kW power rating. It suits Mitsubishi applications only where the physical and electrical details match, and it is listed with a 2 hole starter mount, 97mm mount centres and a 71mm flange diameter.

Key dimensions on this starter motor include a 192mm overall length, 45mm nose cone length, 28mm pinion diameter and 14mm pinion at rest. The mount hole is listed as M10x1.25 / 11, which is useful when checking fit against the original starter and the vehicle mounting arrangement.

This unit is part of the OEX rotating electrical range and is supplied new, not remanufactured. OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, with production from ISO certified factories and a comprehensive nationwide warranty.

Warranty cover is listed as 3 years for passenger use and 1 year for commercial use. For buyers comparing options, the part number MXS2036, voltage, tooth count, rotation and mounting dimensions are the most important checks before ordering.

Key Features

• 12V starter motor
• 8 tooth pinion
• Clockwise rotation
• New unit
• 2 hole starter mount
• Mitsubishi style application

Specifications

• Brand: OEX
• Product type: Starter motor
• Unit of measure: Each
• Voltage: 12V
• Rotation: CW
• Number of teeth: 8
• Power rating: 1.4kW
• Starter mount type: 2 hole

Fitment guidance

• Suits Mitsubishi applications where the starter motor specifications match the original unit.
• Fitment references supplied include Mitsubishi Lancer for model years 2001, 2002, 2003, 2004, 2005 and Mitsubishi Outlander for model years 2006, 2007, 2008, 2009 and 2010.
• The fitment preview also lists Mitsubishi generally, so the safest check is to compare the part number, mounting style and dimensions against the vehicle’s existing starter motor.

Application and Buying Notes

Before ordering, compare the part number MXS2036 with the number on the old starter motor or the workshop parts listing. The key physical checks here are 12V, clockwise rotation, 8 teeth, 2 hole mount and 97mm mount centres, because a starter can look similar but still differ in mounting or pinion setup.

The dimensions matter as much as the electrical rating. This unit has a 71mm flange diameter, 45mm nose cone length, 192mm overall length and a 28mm pinion diameter. If your original starter differs in these measurements, the unit may not suit even if the vehicle is a Mitsubishi.

The listed mount hole diameter is M10x1.25 / 11 and the starter is shown as suitable for Mitsubishi units with a dry clutch arrangement. That makes it important to confirm the original mounting hardware and clutch type, especially if the vehicle has had previous repairs or a non-standard replacement fitted.

Warranty is another practical point to consider. OEX lists 3 years passenger and 1 year commercial cover, but warranty terms do not replace fitment checking. The safest buying process is to confirm the application, voltage, tooth count, rotation and dimensions before fitting or opening the packaging.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2036 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 97mm, Nose Cone Length 45mm, Overall Length 192mm, Pinion Diameter 28mm, Rotation CW, Voltage 12, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 3.1kg, Product Group 1 ROTATING ELECTRICAL, Part No. MXS2036, Brand OEX, Description OEX Starter Motor 12V 8Th CW Mitsubishi Style, Flange Diameter 71mm, Mount Hole Diameter M10x1.25 / 11, Number of Teeth 8, Pinion at Rest 14mm, Power Rating 1.4kW.

OEX Starter Motor 12V 8Th CW Mitsubishi Style. Part number MXS2036 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2036, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include MITSUBISHI LANCER, MITSUBISHI LANCER 2001, MITSUBISHI LANCER 2002, MITSUBISHI LANCER 2003. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm compatibility using part number MXS2036, the 12V clockwise 8 tooth specification, and the listed mounting dimensions before purchase or installation. If the original starter motor does not match these details, check the vehicle application carefully first.

FAQ

What is the part number for this starter motor?

The part number listed is MXS2036. For this listing, part number MXS2036 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI LANCER, MITSUBISHI LANCER 2001, MITSUBISHI LANCER 2002. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number MXS2036 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI LANCER, MITSUBISHI LANCER 2001, MITSUBISHI LANCER 2002. These details should still be checked against the original unit before ordering.

Does this starter motor rotate clockwise or counter-clockwise?

The listed rotation is clockwise (CW). For this listing, part number MXS2036 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI LANCER, MITSUBISHI LANCER 2001, MITSUBISHI LANCER 2002. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 8 teeth. For this listing, part number MXS2036 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI LANCER, MITSUBISHI LANCER 2001, MITSUBISHI LANCER 2002. These details should still be checked against the original unit before ordering.

What vehicle make is it listed for?

It is listed as suitable for Mitsubishi applications. For this listing, part number MXS2036 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI LANCER, MITSUBISHI LANCER 2001, MITSUBISHI LANCER 2002. These details should still be checked against the original unit before ordering.

What warranty is supplied with this unit?

OEX lists a 3 year warranty for passenger use and 1 year for commercial use. For this listing, part number MXS2036 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI LANCER, MITSUBISHI LANCER 2001, MITSUBISHI LANCER 2002. These details should still be checked against the original unit before ordering.
