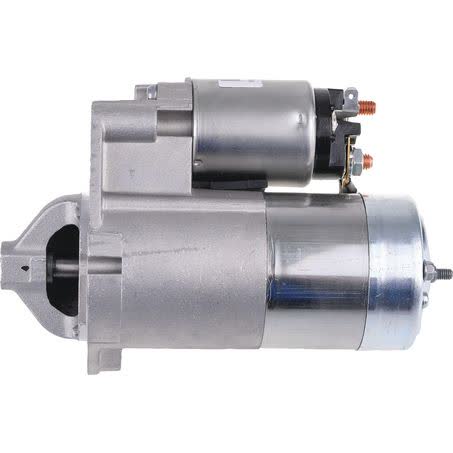

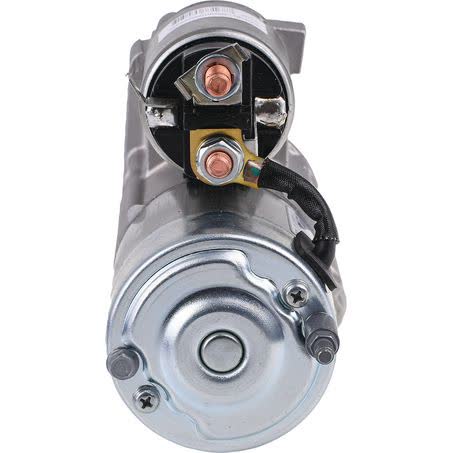

OEX Starter Motor 12V 8TH CW Mitsubishi Style MXS2032

The OEX Starter Motor MXS2032 is a new 12V unit with 8 teeth, clockwise rotation, and a 1.4kW power rating. It is listed as a Mitsubishi style starter motor and suits Mitsubishi applications, with a 2 hole starter mount, 113mm mount centres, and a 68mm flange diameter.

Key dimensions to check are the 194mm overall length, 28mm pinion diameter, and M10x1.25 mount hole size. The pinion sits at rest at 3.5mm, and the unit weighs 2.8kg. These measurements matter when comparing against the original starter already fitted to the vehicle.

OEX describes this starter as being made using OE components for fit and function, with sourcing through ISO9001 certified factories. The unit is backed by a 3 year passenger / 1 year commercial warranty, but correct application still needs to be confirmed by part number and physical specifications before ordering.

Key Features

• New starter motor
• 12V electrical system
• 8 tooth pinion
• Clockwise rotation
• 1.4kW power rating
• Mitsubishi style application

Specifications

• Brand: OEX
• Part No.: MXS2032
• Product Type: Starter Motor
• Voltage: 12V
• Rotation: CW
• Number of Teeth: 8
• Power Rating: 1.4kW
• Starter Mount Type: 2 Hole

Fitment guidance

• Mitsubishi applications
• Kia Carnival applications are listed in the supplied fitment data, including model years 1999 to 2006
• Confirm the vehicle’s original starter part number and match the physical details before purchase

Application and Buying Notes

The most reliable way to confirm this starter is by matching the part number MXS2032 and checking the core dimensions against the removed unit. The key points here are 12V, clockwise rotation, 8 teeth, 1.4kW, 113mm mount centres, and a 2 hole starter mount. If any of these differ from the original starter, the unit may not be correct for the vehicle.

Physical fit is just as important as electrical fit. Check the 68mm flange diameter, 194mm overall length, 28mm pinion diameter, and M10x1.25 mount hole size before ordering. The pinion at rest measurement of 3.5mm can also help when comparing starter nose depth and engagement layout against the existing part.

This starter is listed for Mitsubishi applications and the supplied fitment data also includes Kia Carnival references across model years 1999 to 2006. Even where a model name appears in fitment data, it is still best practice to confirm against the vehicle’s original starter and the part number MXS2032, as small differences in mounting or drive details can affect interchange.

The unit is new and supplied as each, with a dry clutch arrangement and a 2.8kg weight. If the vehicle has had previous repairs or a non-standard replacement fitted, compare the old unit carefully rather than relying on model name alone. Matching the mounting pattern, rotation, tooth count, and voltage gives the best chance of a correct installation.

Warranty coverage is listed as 3 years for passenger use and 1 year for commercial use. That warranty does not replace the need to confirm application details first, especially when the starter is described as Mitsubishi style rather than tied to one single vehicle model. Use the specification measurements as the primary check before placing the order.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2032 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 113mm, Number of Teeth 8, Pinion at Rest 3.5mm, Power Rating 1.4kW, Suits Unit Make Mitsubishi, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. MXS2032, Brand OEX, Description OEX Starter Motor 12V 8Th CW Mitsubishi Style, Flange Diameter 68mm, Mount Hole Diameter M10x1.25 / 10, Overall Length 194mm, Pinion Diameter 28mm, Rotation CW.

OEX Starter Motor 12V 8Th CW Mitsubishi Style. Part number MXS2032 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2032, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include KIA CARNIVAL, KIA CARNIVAL 1999, KIA CARNIVAL 2000, KIA CARNIVAL 2001. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment using part number MXS2032, the 12V clockwise 8 tooth specification, and the physical mounting dimensions before purchase. Vehicle application should be checked against the original starter and the listed fitment details to avoid ordering the wrong unit.

FAQ

What is the part number for this starter motor?

The part number is MXS2032.

What voltage and rotation does it use?

It is a 12V starter motor with clockwise rotation.

How many teeth does the pinion have?

The pinion has 8 teeth.

What are the main mounting measurements?

The listed mounting details are 113mm mount centres, a 68mm flange diameter, a 2 hole starter mount, and M10x1.25 / 10 mount holes.

Which vehicles are listed in the fitment data?

The supplied fitment data includes Mitsubishi applications and Kia Carnival applications, with Kia Carnival model years shown from 1999 to 2006.

What warranty is provided?

The warranty is listed as 3 years for passenger use and 1 year for commercial use.
