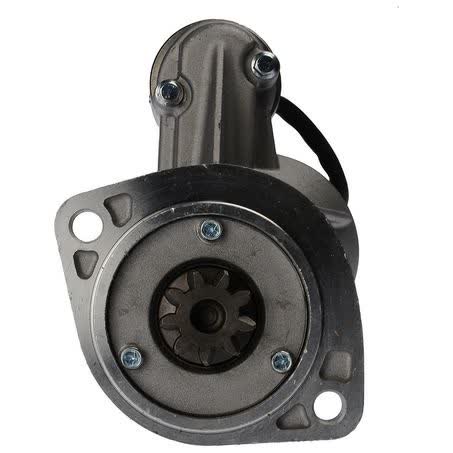

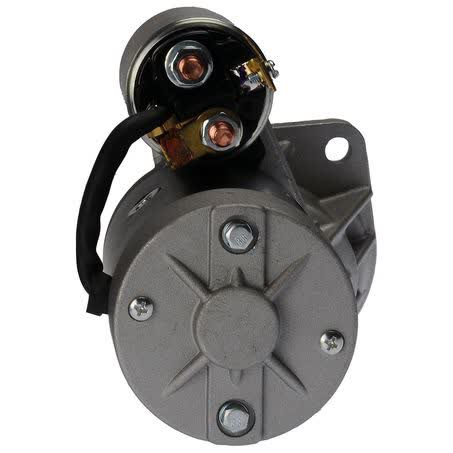

OEX Starter Motor 12V 9 Tooth CW Hitachi Style HXS066

The OEX Starter Motor HXS066 is a 12V unit with 9 teeth and clockwise rotation, supplied in new condition and described as Hitachi style. Key physical details include a 2 hole starter mount, 110mm mount centres, an 82mm flange diameter, and an overall length of 230mm, so it is important to compare the replacement unit closely before ordering.

This starter motor is rated at 2kW and uses a 35mm pinion diameter with a 7mm pinion at rest. Those measurements matter when checking against the original starter, especially where clearance, mounting layout, and engagement are critical to the repair.

The listed application data points to Nissan Caravan and Nissan Patrol fitment references, but the safest way to confirm suitability is to match the part number HXS066 and compare the mounting and electrical details with the vehicle already in service. As with any starter motor replacement, the exact housing shape and drive configuration need to line up with the existing unit.

Key Features

• 12V starter motor
• 9 tooth pinion
• Clockwise rotation
• 2kW power rating
• 2 hole starter mount
• New unit

Specifications

• Part number: HXS066
• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Power rating: 2kW
• Rotation: CW
• Number of teeth: 9
• Starter mount type: 2 hole

Fitment guidance

• Nissan Caravan
• Nissan Patrol

Application and Buying Notes

Before fitting, compare the part number HXS066 and the starter’s physical measurements with the original unit on the vehicle. The 110mm mount centres, 2 hole starter mount, 82mm flange diameter, and 230mm overall length are practical checks that help confirm whether this starter is the same pattern as the one being removed.

The 12V supply, 9 tooth drive, clockwise rotation, and 35mm pinion diameter are all important compatibility points. If any of those differ from the existing starter, the unit may not engage correctly or may not mount in the same position, even if the vehicle model looks similar on paper.

This starter is listed as Hitachi style and suited to Hitachi as a unit make reference, so it is best treated as a replacement based on matching application details rather than model name alone. The safest approach is to verify the mounting face, pinion setup, and electrical specification before booking the job or ordering parts for a vehicle off the road.

The OEX branding is associated here with original equipment and aftermarket supply channels, ISO certified factory sourcing, and a comprehensive nationwide warranty. Those points support confidence in the product line, but they do not replace the need to confirm fitment against the removed starter and the vehicle application.

If the vehicle is used commercially, pay close attention to the warranty line of 3 years for passenger use and 1 year for commercial use. That distinction matters when the starter is being purchased for fleet, work, or heavier duty service, especially where replacement timing and operating conditions are more demanding.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number HXS066 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 110mm, Number of Teeth 9, Pinion at Rest 7mm, Power Rating 2kW, Suits Unit Make Hitachi, Item Type Starter Motor, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. HXS066, Brand OEX, Description OEX Starter Motor 12V 9Th CW Hitachi Style, Flange Diameter 82mm, Mount Hole Diameter 10.5, Overall Length 230mm, Pinion Diameter 35mm, Rotation CW.

OEX Starter Motor 12V 9Th CW Hitachi Style. Part number HXS066 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number HXS066, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment by matching part number HXS066 and checking the 12V, 9 tooth, clockwise, 2 hole starter details against the vehicle application and the removed starter motor before purchase.

FAQ

What is the part number for this starter motor?

The part number listed is HXS066. For this listing, part number HXS066 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN CARAVAN, NISSAN CARAVAN 2001, NISSAN CARAVAN 2002. These details should still be checked against the original unit before ordering.

What voltage does this starter motor use?

It is a 12V starter motor. For this listing, part number HXS066 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN CARAVAN, NISSAN CARAVAN 2001, NISSAN CARAVAN 2002. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 9 teeth. For this listing, part number HXS066 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN CARAVAN, NISSAN CARAVAN 2001, NISSAN CARAVAN 2002. These details should still be checked against the original unit before ordering.

What rotation is listed for this starter?

The starter is listed as clockwise (CW) rotation. For this listing, part number HXS066 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN CARAVAN, NISSAN CARAVAN 2001, NISSAN CARAVAN 2002. These details should still be checked against the original unit before ordering.

What warranty is provided?

The warranty is listed as 3 years for passenger use and 1 year for commercial use. For this listing, part number HXS066 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN CARAVAN, NISSAN CARAVAN 2001, NISSAN CARAVAN 2002. These details should still be checked against the original unit before ordering.

Which vehicle applications are referenced?

The fitment data references Nissan Caravan and Nissan Patrol. Final suitability should still be confirmed against part number HXS066 and the physical measurements listed. For this listing, part number HXS066 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN CARAVAN, NISSAN CARAVAN 2001, NISSAN CARAVAN 2002. These details should still be checked against the original unit before ordering.
