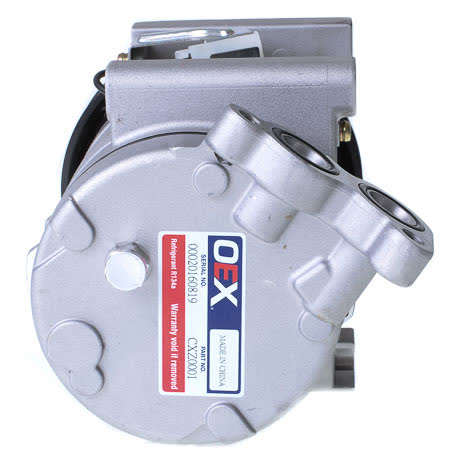

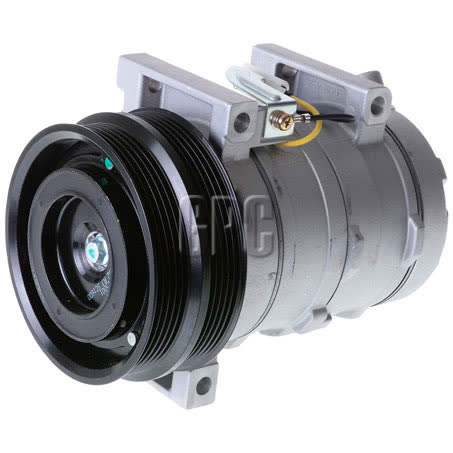

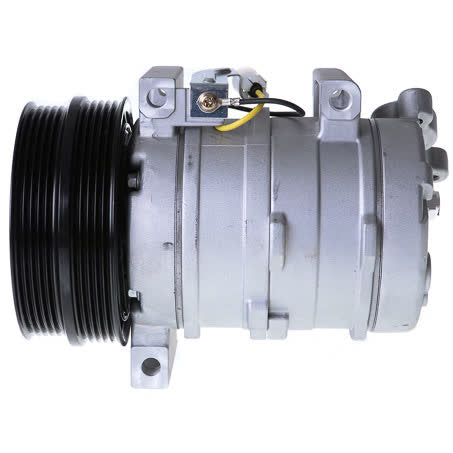

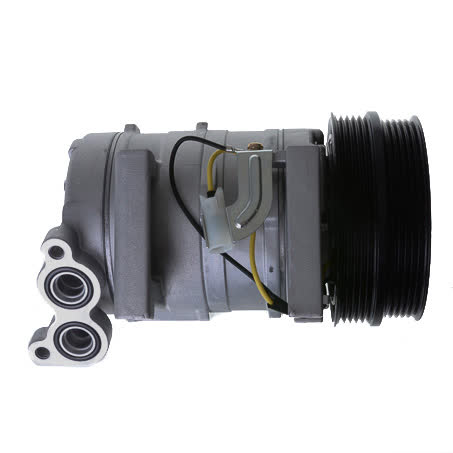

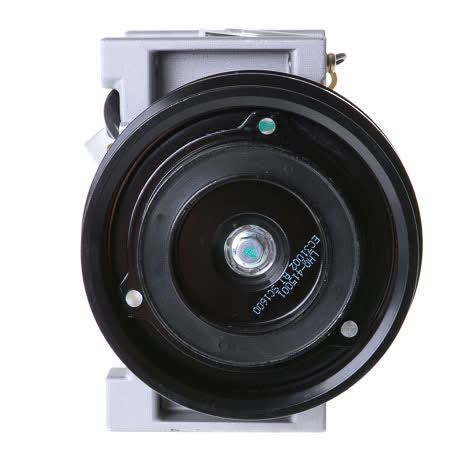

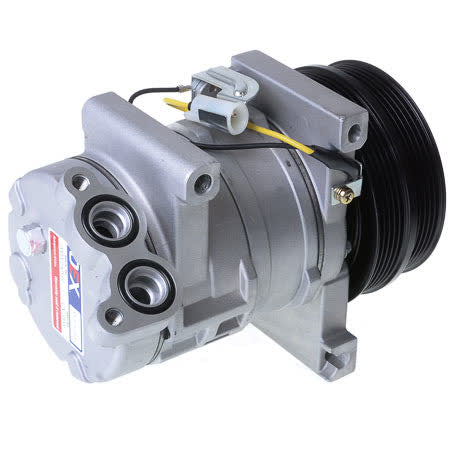

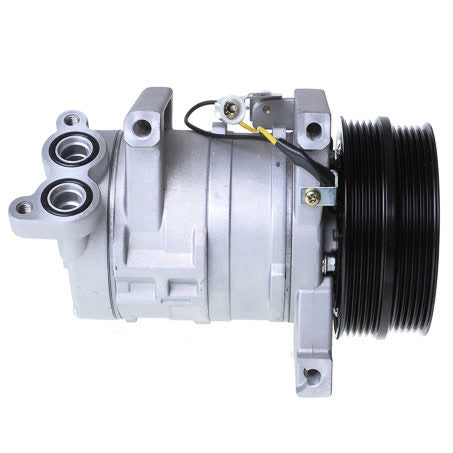

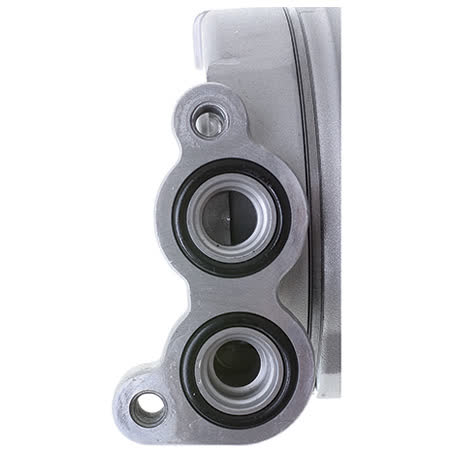

OEX Air Conditioning Compressor 12V Direct Mount Diesel Kiki DKS15D Style CXZ0001

The OEX air conditioning compressor is a 12V direct mount unit in Diesel Kiki DKS15D style, identified by part number CXZ0001. It is supplied with a 5 groove pulley section, a 125mm clutch diameter, pad fitting type, and twin pulley dimensions of 125 / 119mm, so the physical mounting and pulley details are important when matching it to the vehicle.

This compressor is listed for Ford Focus LS-LV 2.0L and 2.5L built from 05/2005 to 06/2011, and Volvo C30 2.4L and 2.5L built from 01/2007 to 12/2013. Those applications are the clearest fitment references provided, so the vehicle, engine, and build date should be checked carefully before ordering.

It uses PAG46 oil and has an oil capacity of 150ml. The unit weight is 7.5kg, and the dust cover is noted as not included. These details help when comparing against the existing compressor or confirming the replacement part against the current vehicle setup.

Key Features

• 12V air conditioning compressor
• Direct mount compressor design
• Diesel Kiki DKS15D style
• Part number CXZ0001
• 5 groove pulley section
• 125mm clutch diameter

Specifications

• Brand: OEX
• Product type: Air conditioning compressor
• Series: DKS15D
• Voltage: 12V
• Compressor mounting: Direct mount
• Suits unit make: Diesel Kiki
• Pulley section: 5 groove
• Clutch diameter: 125mm

Confirmed application details

• Ford Focus LS-LV 2.0L and 2.5L, 05/2005 to 06/2011
• Volvo C30 2.4L and 2.5L, 01/2007 to 12/2013

Application and Buying Notes

When replacing an air conditioning compressor, the safest check is the part number and mounting style. This unit is CXZ0001, a 12V direct mount DKS15D style compressor with a pad fitting type, so it should only be considered where those details match the vehicle and the existing component.

The pulley and clutch details matter just as much as the model name. This compressor has a 5 groove pulley section, a 125mm clutch diameter, and twin pulley dimensions of 125 / 119mm, so the current compressor or belt drive setup should be compared before purchase to reduce the risk of a mismatch.

The listed vehicle coverage is limited to the Ford Focus LS-LV 2.0L and 2.5L from 05/2005 to 06/2011, and the Volvo C30 2.4L and 2.5L from 01/2007 to 12/2013. If the vehicle falls outside those dates, or the original compressor differs in mounting or pulley arrangement, confirm suitability before ordering.

A two year warranty is provided, which offers a useful level of cover, but warranty does not replace proper identification. Matching the compressor series, voltage, mounting type, and pulley details remains the best way to choose the correct part for the job.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXZ0001 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty Two Years, Compressor Mounting Direct Mount, Pulley Section 5 Groove, Suits Unit Make Diesel Kiki, Note Compressor has twin Pulley 125 / 119mm. Oil type PAG46., Dust Cover Y/N No, Product Group 2 AC COMPONENTS.

Additional published details for cross-checking include Part No. CXZ0001, Brand OEX, Description OEX Air Conditioning Compressor 12V Direct Mount Diesel Kiki DKS15D Style, Clutch Diameter 125mm, Fitting Type Pad, Series DKS15D, Voltage 12, Oil Capacity 150ml, Weight 7.5kg, Product Group 1 COOLING.

OEX Air Conditioning Compressor 12V Direct Mount Diesel Kiki DKS15D Style. Part number CXZ0001 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 5 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXZ0001, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm fitment using part number CXZ0001, the DKS15D style, 12V direct mount design, 5 groove pulley, 125mm clutch diameter, and the vehicle application details before purchase.

FAQ

What is the part number for this compressor?

The part number listed is CXZ0001. For this listing, part number CXZ0001 is the main reference point. Listed voltage is 12. Published fitment references include FORD FOCUS, FORD FOCUS 2005, FORD FOCUS 2006. These details should still be checked against the original unit before ordering.

What vehicles are listed for this compressor?

The listed applications are Ford Focus LS-LV 2.0L and 2.5L from 05/2005 to 06/2011, and Volvo C30 2.4L and 2.5L from 01/2007 to 12/2013. For this listing, part number CXZ0001 is the main reference point. Listed voltage is 12. Published fitment references include FORD FOCUS, FORD FOCUS 2005, FORD FOCUS 2006. These details should still be checked against the original unit before ordering.

What voltage is this compressor?

It is a 12V air conditioning compressor. For this listing, part number CXZ0001 is the main reference point. Listed voltage is 12. Published fitment references include FORD FOCUS, FORD FOCUS 2005, FORD FOCUS 2006. These details should still be checked against the original unit before ordering.

What pulley and clutch details are provided?

It has a 5 groove pulley section, a 125mm clutch diameter, and twin pulley dimensions of 125 / 119mm. For this listing, part number CXZ0001 is the main reference point. Listed voltage is 12. Published fitment references include FORD FOCUS, FORD FOCUS 2005, FORD FOCUS 2006. These details should still be checked against the original unit before ordering.

What oil should be used with this compressor?

The listed oil type is PAG46, with an oil capacity of 150ml. For this listing, part number CXZ0001 is the main reference point. Listed voltage is 12. Published fitment references include FORD FOCUS, FORD FOCUS 2005, FORD FOCUS 2006. These details should still be checked against the original unit before ordering.

Does this compressor include a dust cover?

No. The dust cover is noted as not included. For this listing, part number CXZ0001 is the main reference point. Listed voltage is 12. Published fitment references include FORD FOCUS, FORD FOCUS 2005, FORD FOCUS 2006. These details should still be checked against the original unit before ordering.
