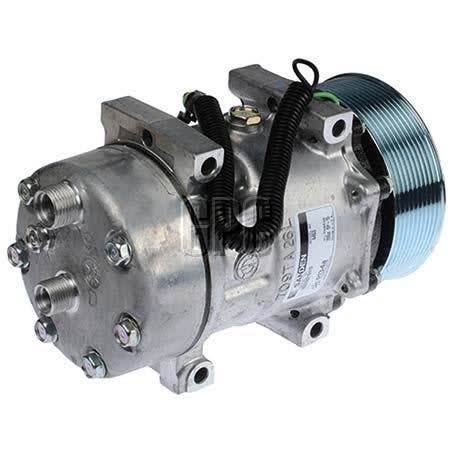

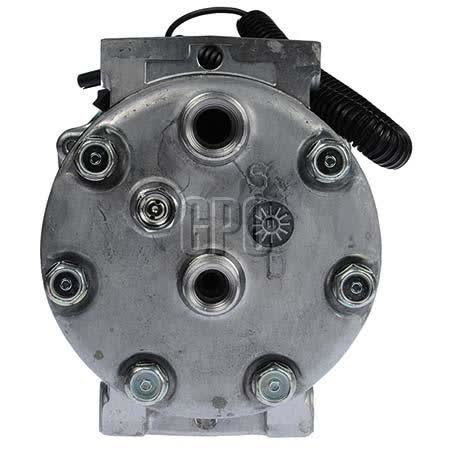

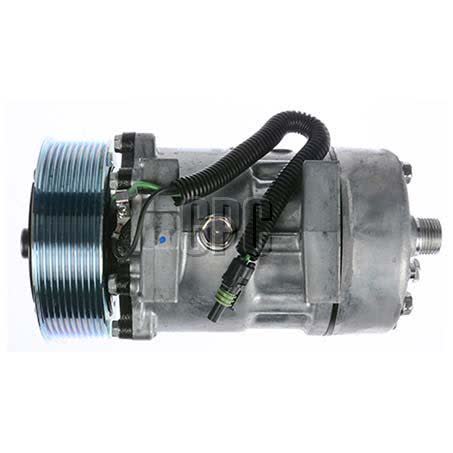

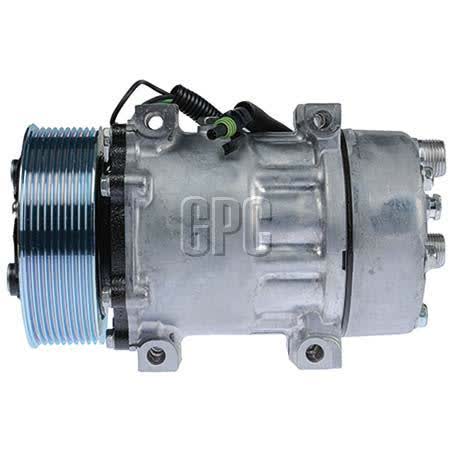

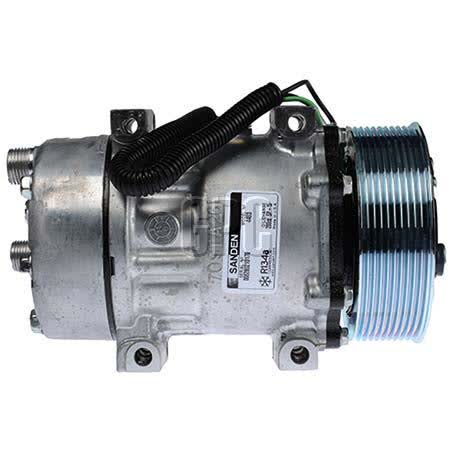

Sanden Air Conditioning Compressor 24V Direct Mount SD7H15 CXS4403

Sanden air conditioning compressor, 24V, direct mount, SD7H15 series, part number CXS4403. This unit is listed with original equipment number 4403 and a horizontal O ring fitting type, so matching the compressor type and connection style matters when comparing against the existing system.

It is specified with a 125mm clutch diameter, 10 groove pulley section, 65.8mm gauge line, and a KCA head. The compressor uses a steel armature, carries 200ml oil capacity, and is supplied as an each unit for cooling system use.

The listed application is to suit Dennis Eagle Elite 2 EURO 5 8.3L from 01/2010 onwards. That fitment reference should be checked carefully against the vehicle build and the current compressor details, especially where the original part number, mount style, pulley arrangement, or hose connection layout may differ.

This Sanden unit is a direct mount compressor in the SD7H15 series and is identified for 24V systems. It also notes a one year warranty, ORX008 and ORX010 O rings to suit, and SP15 oil type with HPRV noted in the product details.

Key Features

• 24V Sanden air conditioning compressor
• SD7H15 series
• Direct mount design
• Part number CXS4403
• Original equipment number 4403
• 125mm clutch diameter

Specifications

• Brand: Sanden
• Product type: Air conditioning compressor
• Series: SD7H15
• Voltage: 24V
• Compressor mounting: Direct mount
• Part No.: CXS4403
• Original Equipment Number: 4403
• Clutch diameter: 125mm

Verified fitment

• Dennis Eagle Elite 2 EURO 5 8.3L from 01/2010 onwards
• Dennis Eagle Elite 2

Application and Buying Notes

Before ordering, confirm the vehicle is a 24V application and check the existing compressor against the SD7H15 series, direct mount style, and part number CXS4403 or OE number 4403. Those identifiers are the safest starting point when matching a replacement compressor for the same system layout.

The pulley and clutch details are important here: this compressor is listed with a 125mm clutch diameter and a 10 groove pulley section. If the vehicle already uses a different pulley profile, belt count, or mounting arrangement, the part should be checked again before purchase.

Oil details are part of the purchasing decision as well. The listing notes 200ml oil capacity and SP15 oil type, with HPRV mentioned in the product notes. When replacing an air conditioning compressor, it is sensible to compare the oil specification and system requirements carefully rather than assuming the previous compressor was filled the same way.

The application note points to Dennis Eagle Elite 2 EURO 5 8.3L from 01/2010 onwards, but final confirmation should still be made against the vehicle identification, existing compressor label, and mounting points. That is especially important on commercial vehicles where similar-looking systems can differ in pulley arrangement, head code, or hose configuration.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS4403 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Direct Mount, Original Equipment Number 4403, Series SD7H15, Voltage 24, Armature Type Steel Armature, Oil Capacity 200ml, Head Code KCA Head.

Additional published details for cross-checking include Product Group 2 AC COMPONENTS, Part No. CXS4403, Brand SANDEN, Description Sanden Air Conditioning Compressor 24V Direct Mount SD7H15, Clutch Diameter 125mm, Fitting Type Horizontal O Ring, Pulley Section 10 Groove, Suits Unit Make Sanden, Note O Rings to Suit ORX008 & ORX010 . Oil Type SP15 . HPRV.

Sanden Air Conditioning Compressor 24V Direct Mount SD7H15. Part number CXS4403 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 10 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS4403, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment using part number CXS4403, OE number 4403, 24V system details, direct mount configuration, and the Dennis Eagle Elite 2 EURO 5 8.3L from 01/2010 application before ordering.

FAQ

What is the part number for this compressor?

The listed part number is CXS4403. The original equipment number is 4403. For this listing, part number CXS4403 is the main reference point. Listed voltage is 24. Published fitment references include DENNIS EAGLE ELITE 2, DENNIS EAGLE ELITE 2 2010. These details should still be checked against the original unit before ordering.

What vehicle application is listed for this compressor?

The stated application is Dennis Eagle Elite 2 EURO 5 8.3L from 01/2010 onwards. For this listing, part number CXS4403 is the main reference point. Listed voltage is 24. Published fitment references include DENNIS EAGLE ELITE 2, DENNIS EAGLE ELITE 2 2010. These details should still be checked against the original unit before ordering.

Is this a 12V or 24V compressor?

It is listed as a 24V compressor. For this listing, part number CXS4403 is the main reference point. Listed voltage is 24. Published fitment references include DENNIS EAGLE ELITE 2, DENNIS EAGLE ELITE 2 2010. These details should still be checked against the original unit before ordering.

What type of mounting does it use?

It is specified as a direct mount compressor. For this listing, part number CXS4403 is the main reference point. Listed voltage is 24. Published fitment references include DENNIS EAGLE ELITE 2, DENNIS EAGLE ELITE 2 2010. These details should still be checked against the original unit before ordering.

What pulley and clutch details are listed?

The compressor is listed with a 125mm clutch diameter and a 10 groove pulley section. For this listing, part number CXS4403 is the main reference point. Listed voltage is 24. Published fitment references include DENNIS EAGLE ELITE 2, DENNIS EAGLE ELITE 2 2010. These details should still be checked against the original unit before ordering.

What should be checked before ordering?

Check the part number CXS4403, OE number 4403, 24V system requirement, direct mount layout, horizontal O ring fitting type, and the listed Dennis Eagle Elite 2 application. For this listing, part number CXS4403 is the main reference point. Listed voltage is 24. Published fitment references include DENNIS EAGLE ELITE 2, DENNIS EAGLE ELITE 2 2010. These details should still be checked against the original unit before ordering.
