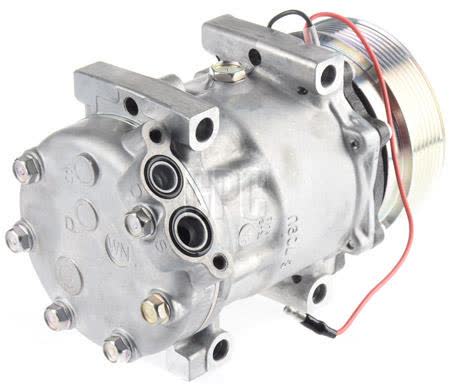

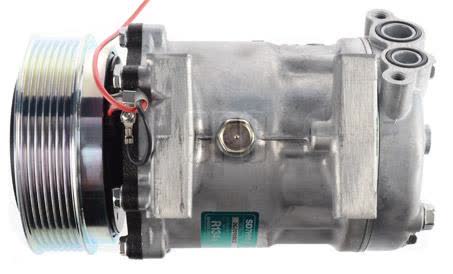

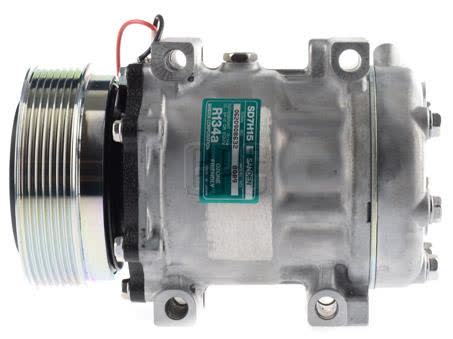

Sanden Air Conditioning Compressor 12V Direct Mount SD7H15 CXS8089

This Sanden air conditioning compressor is a 12V direct mount SD7H15 unit, identified by part number CXS8089 and original equipment number 8089. It is listed with a 120mm clutch diameter, 7 groove pulley section, and WN head code, so it is important to match the compressor style and mounting details before ordering.

The unit is supplied r conditioning compressor for each application and is noted with a direct mount compressor arrangement and vertical special pad fitting type. The listed oil capacity is 135ml and the specified oil type is SP10. The compressor weight is 7.8kg, which can help when comparing against the unit being replaced.

Fitment is stated for Land Rover Defender 110/130 2.5L from 03/1993 to 03/1999, Defender 110/130 TD5 2.5L from 03/1999 to 12/2006, and Discovery 2 (L318) 2.5L from 02/1999 to 11/2004. Even with those application notes, the safest approach is to confirm the existing compressor part number, clutch setup, mounting style, and pulley configuration before purchase.

Key Features

• Sanden SD7H15 series compressor
• 12V unit
• Direct mount compressor
• 120mm clutch diameter
• 7 groove pulley section

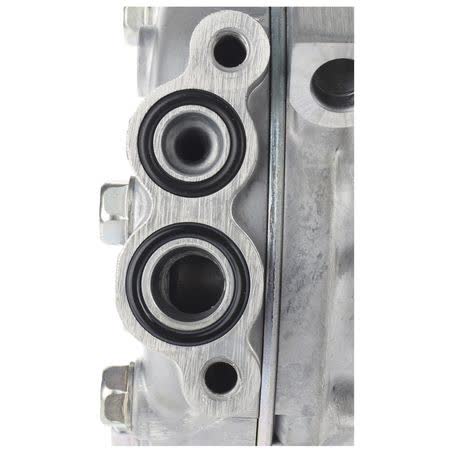

• Vertical special pad fitting type

Specifications

• Part number: CXS8089
• Brand: Sanden
• Product type: Air conditioning compressor
• Voltage: 12V
• Series: SD7H15
• Compressor mounting: Direct mount
• Fitting type: Vertical special pad
• Clutch diameter: 120mm

Verified fitment

• Land Rover Defender 110/130 2.5L, 03/1993 - 03/1999
• Land Rover Defender 110/130 TD5 2.5L, 03/1999 - 12/2006
• Land Rover Discovery 2 (L318) 2.5L, 02/1999 - 11/2004

Application and Buying Notes

When comparing this compressor to the unit on the vehicle, check the part number CXS8089 and the original equipment number 8089 first. Those identifiers are the most useful starting point, particularly where multiple Sanden compressors may share a similar external look but differ in mounting or clutch details.

This unit is a direct mount SD7H15 compressor with a vertical special pad fitting type, so mounting style matters as much as the model name. The clutch diameter is 120mm and the pulley section is 7 groove, which should be matched carefully against the existing setup to avoid installation delays.

The fitment note covers Defender 110/130 2.5L, Defender 110/130 TD5 2.5L, and Discovery 2 (L318) 2.5L within the stated date ranges. Even so, exact application can vary with build date and existing air conditioning hardware, so the best buying decision is still to verify the compressor’s mounting face, pulley groove count, clutch diameter, and part number before fitting.

If you are replacing a worn unit, the listed replacement clutch is CLX8089 and the compressor weighs 7.8kg. That can help when checking whether the assembly on hand is the same style, but it should not replace a direct comparison of the old compressor and the vehicle’s system requirements.

The one year warranty applies to the listed part, but warranty cover does not remove the need to confirm compatibility. Air conditioning compressors are application-sensitive components, and the safest purchase is the one matched by part number, mounting pattern, pulley configuration, and the stated Land Rover fitment.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS8089 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Part No. CXS8089, Type AIR CONDITIONING COMPRESSOR, Brand SANDEN, Unit of Measure EACH, Description Sanden Air Conditioning Compressor 12V Direct Mount SD7H15, Warranty One Year, Clutch Diameter 120mm, Compressor Mounting Direct Mount, Fitting Type Vertical Special Pad, Original Equipment Number 8089.

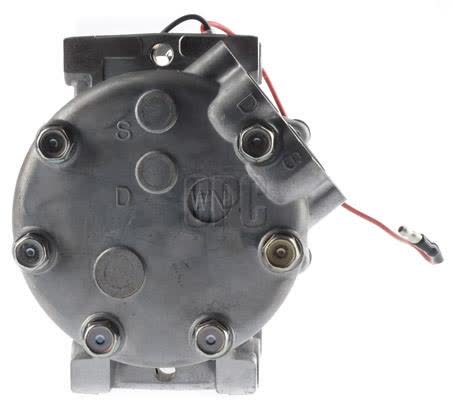

Additional published details for cross-checking include Pulley Section 7 Groove, Replacement Clutch CLX8089, Series SD7H15, Suits Unit Make Sanden, Voltage 12, Note O Rings to suit ORX058 & ORX059 . Oil Type SP10 Clutch supplied may be fitted with leaf spring armature., Gauge Line 73.82mm, Oil Capacity 135ml, Dust Cover Y/N No, Head Code WN Head.

Sanden Air Conditioning Compressor 12V Direct Mount SD7H15. Part number CXS8089 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 7 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS8089, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Please confirm fitment using part number CXS8089, original equipment number 8089, and the listed application details before ordering. Match the direct mount style, 120mm clutch diameter, 7 groove pulley section, and vehicle model/date range to the compressor currently fitted to the vehicle.

FAQ

What vehicles is this compressor listed to suit?

It is listed for Land Rover Defender 110/130 2.5L from 03/1993 to 03/1999, Defender 110/130 TD5 2.5L from 03/1999 to 12/2006, and Discovery 2 (L318) 2.5L from 02/1999 to 11/2004.

What is the part number?

The part number is CXS8089. The original equipment number listed is 8089.

Is this a 12V compressor?

Yes. The listed voltage is 12V.

What type of mounting does it use?

It is listed as a direct mount compressor with a vertical special pad fitting type.

What clutch and pulley details are provided?

The compressor is listed with a 120mm clutch diameter and a 7 groove pulley section. The replacement clutch is listed as CLX8089.

What oil and seal information is listed?

The listed oil type is SP10 and the oil capacity is 135ml. The note also states O rings to suit ORX058 and ORX059.
