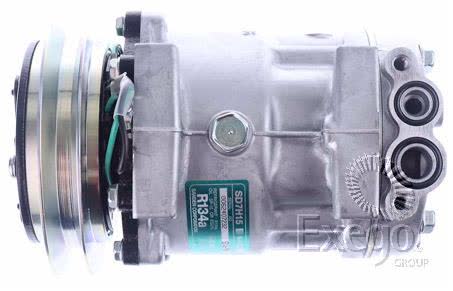

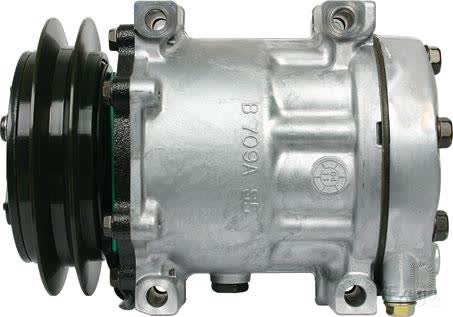

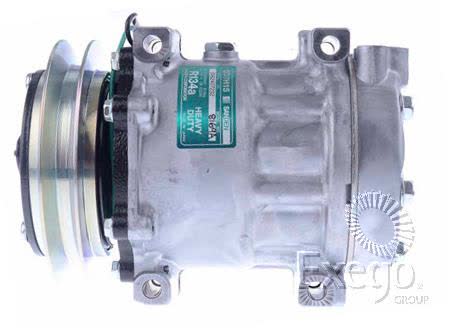

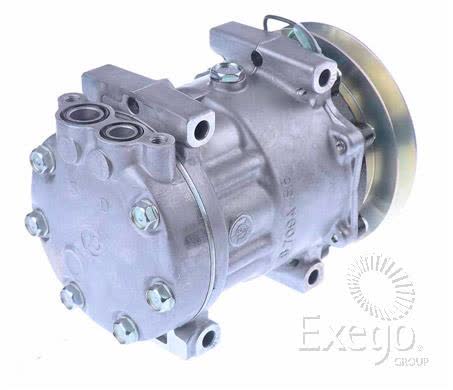

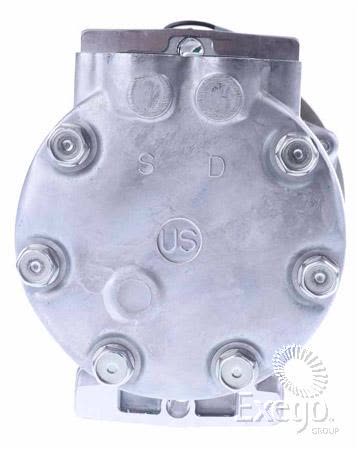

Sanden Air Conditioning Compressor 24V Direct Mount SD7H15 CXS8169

This Sanden air conditioning compressor is a 24V direct mount unit from the SD7H15 series, supplied under part number CXS8169. It is listed with a 138mm clutch diameter, B section pulley, vertical pad fitting type, and a 135ml oil capacity, which are the key details to check before ordering or installing.

The compressor is intended for Sanden applications and is described with original equipment number 8169. It weighs 7.2kg and is supplied without a dust cover. The note against this unit specifies O-rings to suit ORX058 and ORX059, with SP 10 oil type.

Known vehicle application details are provided for selected Isuzu F Series and related models, including FRR500, FTR900, FRR600, FTS800, FVM1400, FSR500, FRR550 and other listed variants across the stated engine and date ranges. Because compressor fitment can vary with mount style, pulley section, head code and system setup, the part number and application details should be checked carefully against the vehicle already in service.

Key Features

• 24V direct mount Sanden air conditioning compressor
• SD7H15 series
• Part number CXS8169
• Original equipment number 8169
• 138mm clutch diameter
• Vertical pad fitting type

Specifications

• Brand: Sanden
• Product type: Air conditioning compressor
• Unit of measure: Each
• Voltage: 24V
• Compressor mounting: Direct mount
• Series: SD7H15
• Clutch diameter: 138mm

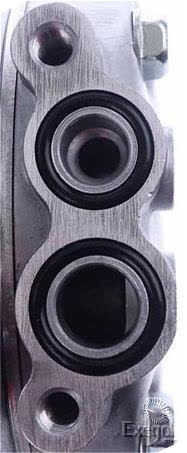

• Fitting type: Vertical pad

Verified fitment guidance

• Isuzu F Series FRR500 and FTR900 7.8L, 01/2003 - 12/2007
• Isuzu F Series FRR600 and FTS800 7.8L, from 11/2007 onwards
• Isuzu FVM1400 7.8L, from 11/2007 onwards
• Isuzu F Series FSR500 6.5L, 01/1988 - 12/2000
• Isuzu F Series FRR500/550 8.2L, 01/1988 - 12/2000
• Isuzu FVM1400 9.8L, 01/1988 - 12/2000

Application and Buying Notes

Before ordering, match the part number CXS8169 and confirm the compressor is a 24V direct mount SD7H15 with a vertical pad fitting and B section pulley. Those details matter because the wrong mount style, pulley section or voltage will stop the unit from matching the existing system layout.

The listed clutch diameter is 138mm and the gauge line is 33.85mm, so these measurements should be compared with the current compressor and bracket space on the vehicle. The compressor is specified with a 135ml oil capacity and SP 10 oil type, so the lubrication requirement should also be checked during replacement work.

For the Isuzu applications shown, the engine size and date range are part of the fitment decision. The same model family can appear in more than one configuration, so it is wise to confirm the exact vehicle build before purchase rather than relying on the model name alone.

The note for this unit specifies O-rings to suit ORX058 and ORX059. If the existing hoses, fittings or sealing parts are being reused, those sealing details should be verified at the same time to avoid installation delays.

This compressor is listed without a dust cover and carries a one year warranty. Those details are useful when comparing units or planning the replacement, but they do not replace a direct check of the vehicle’s existing compressor and mounting arrangement.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS8169 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Direct Mount, Original Equipment Number 8169, Series SD7H15, Voltage 24, Gauge Line 33.85mm, Dust Cover Y/N No, Weight 7.2kg.

Additional published details for cross-checking include Product Group 1 COOLING, Part No. CXS8169, Brand SANDEN, Description Sanden Air Conditioning Compressor 24V Direct Mount SD7H15, Clutch Diameter 138mm, Fitting Type Vertical Pad, Pulley Section B, Suits Unit Make Sanden, Note O Rings to suit ORX058 & ORX059 .Oil Type SP 10, Oil Capacity 135ml.

Sanden Air Conditioning Compressor 24V Direct Mount SD7H15. Part number CXS8169 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is B. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS8169, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm compatibility using the part number CXS8169, the SD7H15 series, 24V direct mount configuration, vertical pad fitting type and the listed Isuzu application details before purchase.

FAQ

What type of compressor is this?

It is a Sanden air conditioning compressor in the SD7H15 series, supplied as a 24V direct mount unit.

What is the part number?

The listed part number is CXS8169. The original equipment number shown is 8169.

What vehicles are listed as compatible?

Listed applications include selected Isuzu F Series, FRR500, FTR900, FRR600, FTS800, FVM1400, FSR500 and FRR550 variants across the stated engine sizes and date ranges.

What mounting style does it use?

The compressor is listed with direct mount compressor mounting and a vertical pad fitting type.

What are the key measurements?

Key measurements shown are a 138mm clutch diameter, 33.85mm gauge line and 7.2kg weight.

What should be checked before installation?

Check the 24V rating, CXS8169 part number, SD7H15 series, vertical pad fitting, B section pulley, and the note specifying O-rings to suit ORX058 and ORX059 with SP 10 oil type.
