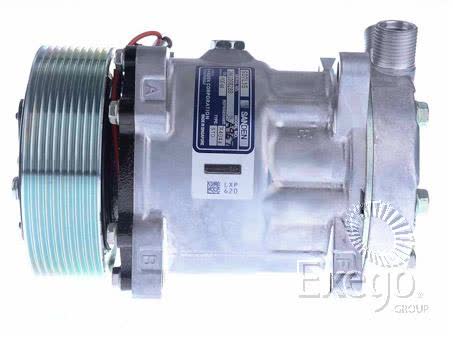

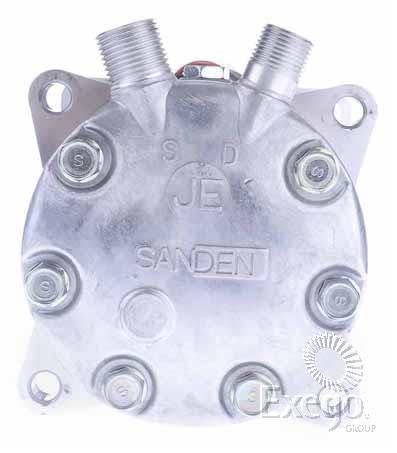

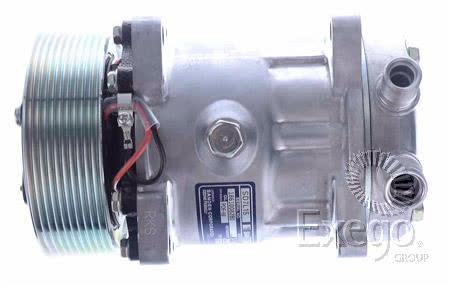

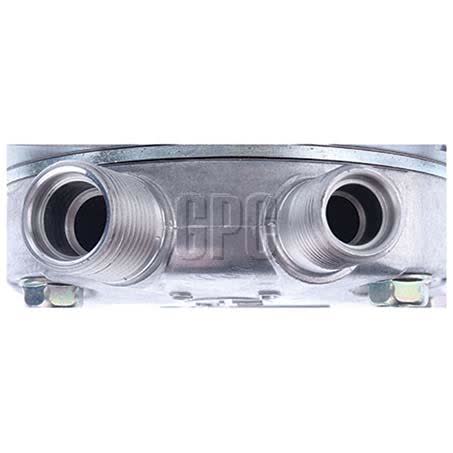

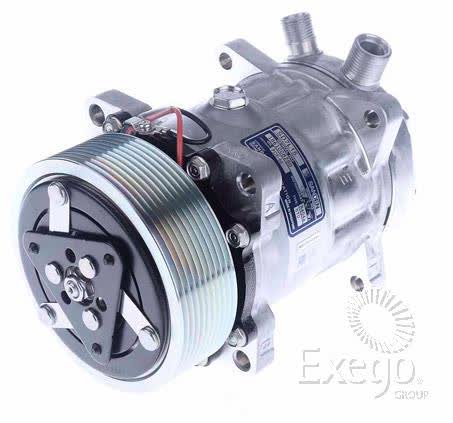

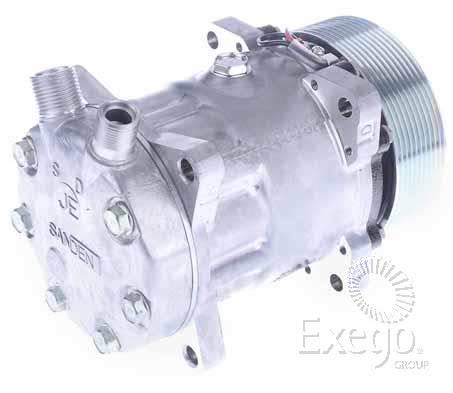

Sanden Air Conditioning Compressor 12V Ear Mount SD7L15 CXSA957

The Sanden SD7L15 air conditioning compressor is a 12V unit with ear mount compressor mounting, vertical O ring fitting type, and a 10 groove pulley section. It is listed as part number CXSA957 and is described as a Sanden air conditioning compressor for universal application.

Key identifying details for this compressor include a 125mm clutch diameter, 50.79mm gauge line, JE head code, and a 200ml oil capacity. The unit is supplied as an each item and is marked for use with R404A refrigerant, with O rings to suit ORX008 and ORX010.

This compressor sits within the Sanden SD7L15 series and is listed at 7.74kg. It does not have a dust cover, and the stated oil type is Unidap 3. Those details matter when matching the unit to an existing system, especially where mounting style, pulley groove count, or hose connection style must match the vehicle setup.

Key Features

• Sanden SD7L15 series compressor
• 12V electrical system
• Ear mount compressor mounting
• 10 groove pulley section
• Vertical O ring fitting type
• 125mm clutch diameter

Specifications

• Type: Air conditioning compressor
• Brand: Sanden
• Series: SD7L15
• Voltage: 12V
• Compressor mounting: Ear mount
• Pulley section: 10 groove
• Clutch diameter: 125mm
• Fitting type: Vertical O ring

Application and Buying Notes

Before ordering, match the part number CXSA957 and confirm the compressor mounting style is ear mount, because mounting layout is one of the main checks when replacing an air conditioning compressor. The listed pulley section is 10 groove, so the drive alignment must suit the existing belt arrangement rather than being assumed from the brand alone.

Universal application is listed, but that does not remove the need to verify the actual vehicle setup. Check the 12V supply, clutch diameter of 125mm, gauge line of 50.79mm, and whether the existing compressor uses the same head code and mount layout. A correct physical match is essential for a clean installation and helps avoid unnecessary parts swapping.

Because this is a Sanden SD7L15 compressor with a stated one year warranty, it is sensible to compare the old unit closely before removing it. Photograph the existing compressor, note the hose ports, check the belt groove count, and confirm the part number CXSA957 against any existing label or catalogue reference. That approach reduces the chance of receiving a compressor that looks similar but is not the correct match for the application.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXSA957 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Ear Mount, Pulley Section 10 Groove, Suits Unit Make Sanden, Note O Rings to suit ORX008 & ORX010 . Oil Type Unidap 3 . For R404A refrigerant, Oil Capacity 200ml, Head Code JE Head.

Additional published details for cross-checking include Product Group 2 AC COMPONENTS, Part No. CXSA957, Brand SANDEN, Description Sanden Air Conditioning Compressor 12V Ear Mount SD7L15, Clutch Diameter 125mm, Fitting Type Vertical O Ring, Series SD7L15, Voltage 12, Gauge Line 50.79mm, Dust Cover Y/N No.

Sanden Air Conditioning Compressor 12V Ear Mount SD7L15. Part number CXSA957 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 10 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXSA957, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Where no verified application list is available, the part number, mounting details, connector style, and published specifications should be used as the primary selection criteria.

Compatibility note: Please confirm fitment using the part number CXSA957, the Sanden SD7L15 series, ear mount layout, 10 groove pulley section, and vertical O ring connection details before purchase. If you are unsure, compare the existing compressor label, mounting points, clutch diameter, and hose seal arrangement with the listed specifications.

FAQ

What is the part number for this compressor?

The listed part number is CXSA957. For this listing, part number CXSA957 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

What voltage does this compressor use?

It is a 12V compressor. For this listing, part number CXSA957 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

What type of mounting does it have?

It is an ear mount compressor. For this listing, part number CXSA957 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

What pulley section is listed?

The compressor has a 10 groove pulley section. For this listing, part number CXSA957 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

What refrigerant is noted for this compressor?

The note states it is for R404A refrigerant. For this listing, part number CXSA957 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

What oil and oil capacity are specified?

The note lists Unidap 3 oil, and the oil capacity is 200ml. For this listing, part number CXSA957 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.
