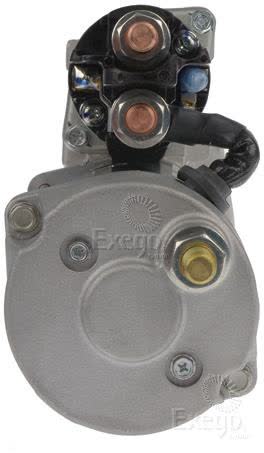

Delco Remy Starter Motor 12V 10 Tooth CW 38MT 4.6KW Part No. 19026027

The Delco Remy starter motor listed here is a 12V unit with 10 teeth, clockwise rotation and a 38MT configuration. It is identified by part number 19026027 and is supplied as a new starter motor, with a power rating of 4.6kW.

Key dimensions matter on starters, and this unit is specified with 127mm mount centres A, 90mm mount centres B and 90mm mount centres C. It also has a 3 hole starter mount, an 89mm flange diameter and 11mm mount hole diameter, so physical matching should be checked carefully before purchase.

The pinion details are equally important for compatibility. This starter has a 40mm pinion diameter, 48mm pinion at rest and a 400mm overall length, making it essential to compare the existing starter or vehicle application against these measurements rather than relying on appearance alone.

Key Features

• 12V Delco Remy starter motor
• 10 tooth pinion
• Clockwise rotation
• 38MT configuration
• 4.6kW power rating
• New unit

Specifications

• Brand: Delco Remy
• Part No.: 19026027
• Type: Starter Motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 10
• Power rating: 4.6kW
• Suits unit make: Delco

Fitment guidance

• No verified vehicle fitment is supplied for this listing. Confirm by part number 19026027, 12V specification, 10 tooth CW configuration and the stated mount and pinion dimensions before ordering.

Application and Buying Notes

When checking this starter against your existing unit, the safest reference points are part number 19026027, the 12V rating and the physical measurements. The 127mm, 90mm and 90mm mount centres, 89mm flange diameter and 11mm mount hole diameter need to line up with the vehicle’s starter mounting arrangement.

Rotation and pinion details are just as important as the mounting points. This starter is clockwise rotation with 10 teeth, a 40mm pinion diameter and 48mm pinion at rest, so it should only be chosen where those details match the application or the removed starter.

The listed 4.6kW power rating, 400mm overall length and 13.12kg weight give a useful indication of the unit’s size and duty level, but they do not replace an application check. Compare the old starter, mounting pattern and drivetrain requirements before fitting.

This unit is described as a Delco Remy starter motor for the Delco unit make, and it is identified as a new part with no warranty listed. If the vehicle has been modified, has a different bellhousing, or has a replacement starter already fitted, measure and compare the existing part rather than assuming interchangeability.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 19026027 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty No Warranty, Mount Centres A 127mm, Mount Centres C 90mm, Number of Teeth 10, Pinion at Rest 48mm, Power Rating 4.6kW, Suits Unit Make Delco, Item Type Starter Motor.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Weight 13.12kg, Product Group 1 ROTATING ELECTRICAL, Part No. 19026027, Brand DELCO REMY, Description Delco Remy Starter Motor 12V 10Th CW 38MT, Flange Diameter 89mm, Mount Centres B 90mm, Mount Hole Diameter 11, Overall Length 400mm.

Delco Remy Starter Motor 12V 10Th CW 38MT. Part number 19026027 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 19026027, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include STERLING TRUCKS L-LINE, STERLING TRUCKS L-LINE 2005, STERLING TRUCKS L-LINE 2006, STERLING TRUCKS L-LINE 2007. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment using part number 19026027, the 12V 10 tooth clockwise 38MT specification, and the listed mounting and pinion dimensions before ordering.

FAQ

What is the part number for this starter motor?

The part number is 19026027. For this listing, part number 19026027 is the main reference point. Listed voltage is 12. Published fitment references include STERLING TRUCKS L-LINE, STERLING TRUCKS L-LINE 2005, STERLING TRUCKS L-LINE 2006. These details should still be checked against the original unit before ordering.

Is this a 12 volt starter?

Yes. The listed voltage is 12V. For this listing, part number 19026027 is the main reference point. Listed voltage is 12. Published fitment references include STERLING TRUCKS L-LINE, STERLING TRUCKS L-LINE 2005, STERLING TRUCKS L-LINE 2006. These details should still be checked against the original unit before ordering.

What rotation does this starter have?

It is clockwise rotation, shown as CW. For this listing, part number 19026027 is the main reference point. Listed voltage is 12. Published fitment references include STERLING TRUCKS L-LINE, STERLING TRUCKS L-LINE 2005, STERLING TRUCKS L-LINE 2006. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The starter has 10 teeth. For this listing, part number 19026027 is the main reference point. Listed voltage is 12. Published fitment references include STERLING TRUCKS L-LINE, STERLING TRUCKS L-LINE 2005, STERLING TRUCKS L-LINE 2006. These details should still be checked against the original unit before ordering.

What are the main mounting measurements?

The listed mount centres are 127mm for A, 90mm for B and 90mm for C. It also has a 3 hole starter mount and 11mm mount hole diameter. For this listing, part number 19026027 is the main reference point. Listed voltage is 12. Published fitment references include STERLING TRUCKS L-LINE, STERLING TRUCKS L-LINE 2005, STERLING TRUCKS L-LINE 2006. These details should still be checked against the original unit before ordering.

Does the listing include verified vehicle fitment?

No verified vehicle fitment is supplied here. Confirm the part number 19026027 and the listed dimensions against your existing starter or vehicle application before buying. For this listing, part number 19026027 is the main reference point. Listed voltage is 12. Published fitment references include STERLING TRUCKS L-LINE, STERLING TRUCKS L-LINE 2005, STERLING TRUCKS L-LINE 2006. These details should still be checked against the original unit before ordering.
