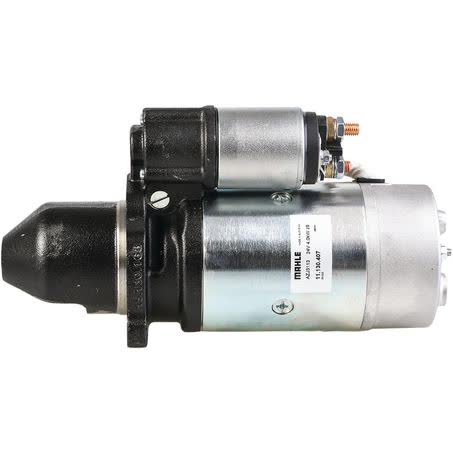

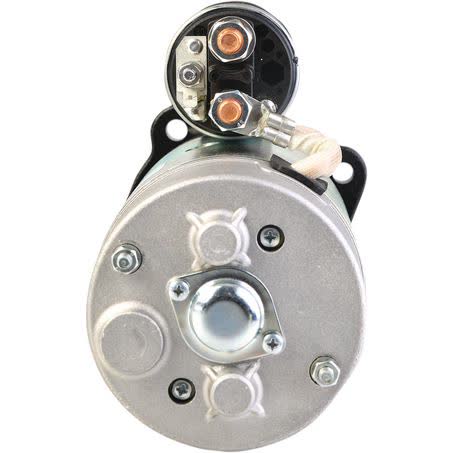

Mahle Starter Motor 24V 9 Tooth CW MS191

The Mahle MS191 is a new 24V starter motor with a 9 tooth pinion and clockwise rotation. It is listed as a 4kW unit with a 3 hole starter mount type, so the mounting pattern and electrical system both need to line up with the vehicle before purchase.

Key dimensions include 127mm mount centres A, 90mm mount centres B and 90mm mount centres C, along with a 89mm flange diameter and 337mm overall length. The pinion sits 48mm at rest, the pinion diameter is 35mm, and the unit is specified with a 51.0 flywheel depth.

This starter is marked for Mahle applications and carries part number MS191. A note is supplied for the 12 volt option, which uses MS193, so the voltage must be confirmed carefully before ordering. The unit is new and supplied each, with a one year warranty.

Key Features

• 24V starter motor
• 9 tooth pinion
• Clockwise rotation
• 4kW power rating
• 3 hole starter mount type
• New unit

Specifications

• Brand: Mahle
• Product type: Starter Motor
• Voltage: 24V
• Rotation: CW
• Number of teeth: 9
• Power rating: 4kW
• Starter mount type: 3 hole
• Mount centres A: 127mm

Fitment guidance

• Fitment is listed against a range of makes and series including Bell B25C, John Deere 250C, Mercedes-Benz 1300 Series, 1500 Series, 900 Series, Atego 2, L Series, LK/LN2, NG, T2/LN1, Unimog and V, Scania 4-Series and T-Series, and Volvo FH12, FH16, FM12 and NH12.
• Sample applications provided include Bell B25C 1998, John Deere 250C 2007, Mercedes-Benz 1300 Series 1986 to 1992, Scania 4-Series 1996 to 2006, T-Series 2004 to 2013, and Volvo FH12 1993 to 2003.
• Other listed groups include S-Series 2016 and 2017, plus Other applications marked G, P and R.
• Use the part number MS191 and the supplied mounting and electrical details to confirm the starter matches the vehicle before ordering.

Application and Buying Notes

The safest way to select this starter is to match the 24V system, the 9 tooth pinion, and the clockwise rotation against the existing unit or vehicle requirements. The note for the 12 volt option points to MS193, which makes voltage confirmation essential before ordering.

The mounting details are specific: 3 hole starter mount type, 127mm mount centres A, 90mm mount centres B and C, 89mm flange diameter, and 11mm mount hole diameter. If any of those measurements differ from the fitted starter, the part should be checked again before purchase.

The listed 4kW rating, 337mm overall length, 48mm pinion at rest, and 51.0 flywheel depth are useful reference points when comparing units side by side. These dimensions help confirm physical compatibility, especially where access is limited or the starter sits close to surrounding components.

This is a new Mahle starter motor supplied with a one year warranty. It is intended for dry clutch applications and is identified as a Mahle unit, so matching the application details and part number MS191 remains the best way to avoid ordering the wrong starter.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MS191 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 127mm, Mount Centres C 90mm, Number of Teeth 9, Pinion at Rest 48mm, Power Rating 4kW, Suits Unit Make Mahle, Note For 12 volt option use MS193.

Additional published details for cross-checking include New / Reman. New, Wet / Dry Clutch Dry, Number of mounting bores 3, For flywheel depth 51.0, Mounting points diameter 127.0, Packaging width 21.50, Net Weight 13820, Product Group 1 ROTATING ELECTRICAL, Part No. MS191, Brand MAHLE.

Mahle Starter Motor 24V 9Th CW. Part number MS191 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MS191, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include BELL B25C, BELL B25C 1998, JOHN DEERE 250C, JOHN DEERE 250C 2007, MERCEDES-BENZ 1300 SERIES, MERCEDES-BENZ 1300 SERIES 1986. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment with the part number MS191, the 24V electrical system, the 9 tooth clockwise configuration, and the supplied mounting dimensions before ordering.

FAQ

Is this starter motor 24V or 12V?

This unit is specified as 24V. The note supplied says the 12 volt option uses MS193. For this listing, part number MS191 is the main reference point. Listed voltage is 24. Published fitment references include BELL B25C, BELL B25C 1998, JOHN DEERE 250C. These details should still be checked against the original unit before ordering.

What is the part number for this starter?

The listed part number is MS191. For this listing, part number MS191 is the main reference point. Listed voltage is 24. Published fitment references include BELL B25C, BELL B25C 1998, JOHN DEERE 250C. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The starter is listed with 9 teeth. For this listing, part number MS191 is the main reference point. Listed voltage is 24. Published fitment references include BELL B25C, BELL B25C 1998, JOHN DEERE 250C. These details should still be checked against the original unit before ordering.

What rotation does this starter use?

It is specified as clockwise rotation, shown as CW. For this listing, part number MS191 is the main reference point. Listed voltage is 24. Published fitment references include BELL B25C, BELL B25C 1998, JOHN DEERE 250C. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as new, not remanufactured. For this listing, part number MS191 is the main reference point. Listed voltage is 24. Published fitment references include BELL B25C, BELL B25C 1998, JOHN DEERE 250C. These details should still be checked against the original unit before ordering.

What warranty is supplied?

The warranty listed is one year. For this listing, part number MS191 is the main reference point. Listed voltage is 24. Published fitment references include BELL B25C, BELL B25C 1998, JOHN DEERE 250C. These details should still be checked against the original unit before ordering.
