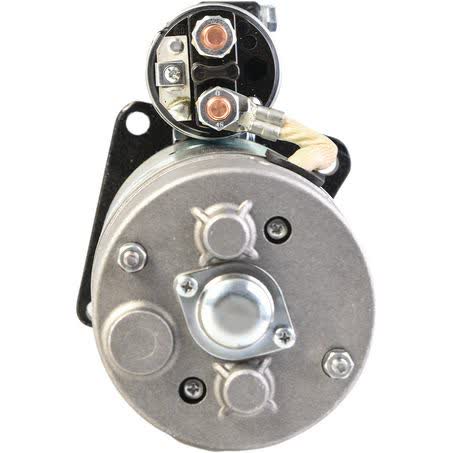

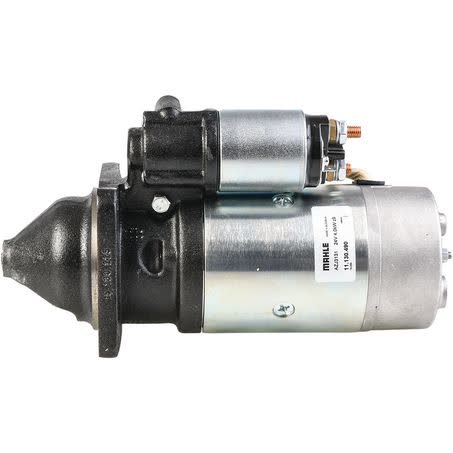

Mahle Starter Motor 24V 9 Tooth CW MS186

The MAHLE starter motor listed here is a new 24V unit with clockwise rotation, 9 teeth, and part number MS186. It is a 4kW starter motor with a 3-hole mount arrangement and a 110mm flange diameter, so it suits applications where those physical and electrical details match exactly.

Key dimensions include 146mm mount centres A, 103mm mount centres C, an overall length of 337mm, a pinion diameter of 35mm, and a pinion at rest measurement of 27mm. The unit is supplied as a single each item and is described as a dry clutch starter motor.

This starter is associated with IVECO and IVECO EUROCARGO applications in the supplied fitment data, including EUROCARGO listings across multiple model years. As with any rotating electrical part, the part number, tooth count, rotation direction, voltage, and mounting pattern should all be checked before ordering.

Key Features

• New MAHLE starter motor
• 24V electrical system
• 9 tooth pinion
• Clockwise rotation
• 4kW power rating
• 3-hole starter mount

Specifications

• Brand: MAHLE
• Product type: Starter motor
• Part No.: MS186
• Voltage: 24V
• Rotation: CW
• Number of teeth: 9
• Power rating: 4kW
• Starter mount type: 3 hole

Fitment guidance

• IVECO
• IVECO EUROCARGO
• IVECO EUROCARGO 1991
• IVECO EUROCARGO 1992
• IVECO EUROCARGO 1993
• IVECO EUROCARGO 1994
• IVECO EUROCARGO 1995
• IVECO EUROCARGO 1996

Application and Buying Notes

Before ordering, confirm that your original starter uses part number MS186 or matches the same 24V, 9 tooth, clockwise specification. The mounting setup also needs to align with the 3-hole pattern, 146mm mount centres A, 103mm mount centres C, 110mm flange diameter, and 12mm mount hole diameter.

The listed fitment information points to IVECO and IVECO EUROCARGO applications, including EUROCARGO model years from 1991 through 2001 in the supplied data. That is useful as a guide, but the exact engine and starter configuration still needs to be checked against the vehicle and the removed unit.

Physical clearance matters with starter motors, especially where overall length is 337mm, the pinion diameter is 35mm, and the pinion at rest measurement is 27mm. Those dimensions help confirm there is space around the bell housing and flywheel area, and that the starter sits correctly for a 30.0 flywheel depth.

This is a new MAHLE rotating electrical part with a 4kW power rating and a dry clutch designation. If the existing unit is a different voltage, tooth count, rotation, or mounting pattern, it should not be treated as interchangeable without verification.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MS186 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 146mm, Mount Centres C 103mm, Number of Teeth 9, Pinion at Rest 27mm, Power Rating 4kW, Suits Unit Make Mahle, Item Type Starter Motor.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Clamp 31, Number of mounting bores 3, For flywheel depth 30.0, Mounting points diameter 146.0, Packaging width 21.50, Net Weight 14399, Product Group 1 ROTATING ELECTRICAL, Part No. MS186, Brand MAHLE.

Mahle Starter Motor 24V 9Th CW. Part number MS186 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MS186, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include IVECO EUROCARGO, IVECO EUROCARGO 1991, IVECO EUROCARGO 1992, IVECO EUROCARGO 1993. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using part number MS186 and the matching 24V, 9 tooth, clockwise, 3-hole mounting details before purchase. Vehicle application should be checked against the removed starter and the engine configuration, especially for IVECO EUROCARGO variants.

FAQ

What is the part number for this starter motor?

The part number is MS186. For this listing, part number MS186 is the main reference point. Listed voltage is 24. Published fitment references include IVECO EUROCARGO, IVECO EUROCARGO 1991, IVECO EUROCARGO 1992. These details should still be checked against the original unit before ordering.

What voltage does this starter motor use?

It is a 24V starter motor. For this listing, part number MS186 is the main reference point. Listed voltage is 24. Published fitment references include IVECO EUROCARGO, IVECO EUROCARGO 1991, IVECO EUROCARGO 1992. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 9 teeth. For this listing, part number MS186 is the main reference point. Listed voltage is 24. Published fitment references include IVECO EUROCARGO, IVECO EUROCARGO 1991, IVECO EUROCARGO 1992. These details should still be checked against the original unit before ordering.

What rotation is listed for this starter motor?

The starter motor is listed as clockwise rotation, or CW. For this listing, part number MS186 is the main reference point. Listed voltage is 24. Published fitment references include IVECO EUROCARGO, IVECO EUROCARGO 1991, IVECO EUROCARGO 1992. These details should still be checked against the original unit before ordering.

Which vehicles are listed in the fitment data?

The supplied fitment data lists IVECO and IVECO EUROCARGO applications, including EUROCARGO model years from 1991 through 2001. For this listing, part number MS186 is the main reference point. Listed voltage is 24. Published fitment references include IVECO EUROCARGO, IVECO EUROCARGO 1991, IVECO EUROCARGO 1992. These details should still be checked against the original unit before ordering.

What warranty is supplied with this starter motor?

The warranty listed is one year. For this listing, part number MS186 is the main reference point. Listed voltage is 24. Published fitment references include IVECO EUROCARGO, IVECO EUROCARGO 1991, IVECO EUROCARGO 1992. These details should still be checked against the original unit before ordering.
