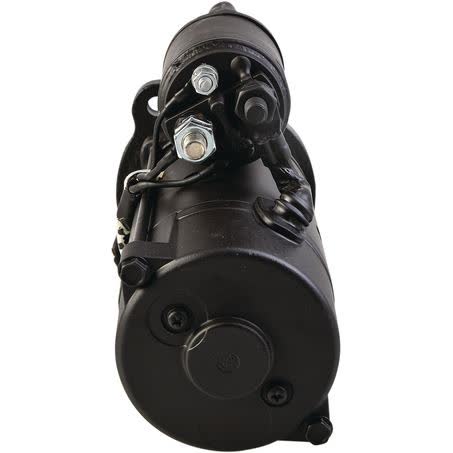

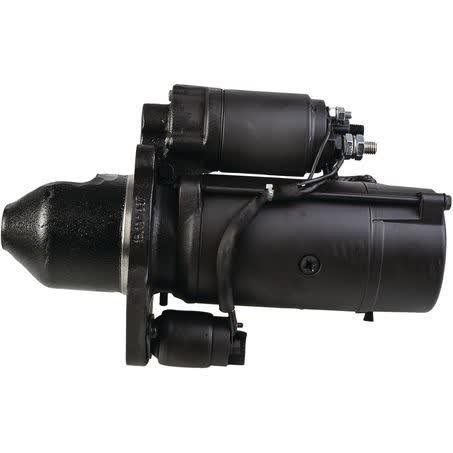

Mahle Starter Motor 24V 9 Tooth CW 4KW MS141

The Mahle starter motor listed here is a new 24V unit with clockwise rotation, 9 teeth, and a 4kW power rating. It is identified by part number MS141 and is supplied as a starter motor for rotating electrical applications where those exact electrical and mounting details are required.

Key physical points include a 3-hole starter mount, 127mm mount centres A, 90mm mount centres C, 89mm flange diameter, and an overall length of 321mm. The pinion sits at rest at 48mm, with a 34.8mm pinion diameter and 51.0 flywheel depth listed for checking against the existing unit.

This starter is marked as new, supplied each, and carries a one year warranty. The unit is described as suitable for Mahle and is specified as transmission type with reduction gear and dry clutch, so matching the application details matters as much as matching voltage and tooth count.

Key Features

• 24V starter motor
• 9 tooth pinion
• Clockwise rotation
• 4kW power rating
• 3-hole starter mount
• With reduction gear

Specifications

• Brand: Mahle
• Part number: MS141
• Item type: Starter Motor
• Unit of measure: Each
• Voltage: 24V
• Number of teeth: 9
• Rotation: CW
• Power rating: 4kW

Known application groups

• ATLAS COPCO: LC, LC 2001 to LC 2011, and W6C
• BELL: B25, B30, B30D, B30E
• BOMAG: BM1000/35
• ECOLOG: 550D, 560D, 570D, 574D, 580D, 590D, 594D, 688D
• HIDROMEK: 600MG
• HITACHI: AH250D, AH300D, AH350, B25D, B30D
• MANITOU: MHT10180T, MHT10210, MHT10225L
• MERCEDES-BENZ: Accelo, Atego, Atego 2, Axor 2, L Series, LK/LN2, OF, Tourino (O 510), Touro (O 500), Zetros

Application and Buying Notes

The safest way to buy a starter like this is to match the part number MS141 first, then confirm the electrical and physical details: 24V, 9 teeth, clockwise rotation, 4kW, and 3 mounting bores. Those details are the quickest checks when comparing to the original unit already fitted to the machine.

The mounting measurements matter just as much as the electrical rating. Confirm the 127mm mount centres A, 90mm mount centres C, 89mm flange diameter, 11mm mount hole diameter, and 321mm overall length before ordering. If the starter sits in a confined location or lines up with a specific bellhousing pattern, these dimensions are the ones to compare closely.

Flywheel and pinion details are also important on this unit. The listed pinion at rest is 48mm, the pinion diameter is 34.8mm, and the for flywheel depth is 51.0. If the replacement starter does not match those points, it may not engage correctly even if the voltage appears to be right.

This starter is described as with reduction gear and dry clutch, so those application details should be checked against the machine’s existing arrangement. The fitment groups include a wide range of equipment families such as Atlas Copco, Bell, Bomag, Ecolog, Hitachi, Manitou, Mercedes-Benz, Normet, Optare, Ponsse, Sandvik, Terberg-Benschop, and Tigercat, but the exact model and year should still be confirmed against the installed part and machine records.

Because this is a new unit with a one year warranty, it is worth checking the original starter label, the mounting pattern, and the rotation direction before purchase. A careful cross-check of the part number, tooth count, voltage, and mounting measurements helps avoid delays and returns when the machine has a specific starter configuration.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MS141 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 127mm, Mount Centres C 90mm, Number of Teeth 9, Pinion at Rest 48mm, Power Rating 4kW, Suits Unit Make Mahle, Item Type Starter Motor.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Transmission Type with reduction gear, Number of mounting bores 3, For flywheel depth 51.0, Mounting points diameter 127.0, Packaging width 21.50, Net Weight 10979, Product Group 1 ROTATING ELECTRICAL, Part No. MS141, Brand MAHLE.

Mahle Starter Motor 24V 9Th CW. Part number MS141 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MS141, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include ATLAS COPCO LC, ATLAS COPCO LC 2001, ATLAS COPCO LC 2002, ATLAS COPCO LC 2003, BELL B25, BELL B30. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by matching part number MS141, 24V, 9 teeth, CW rotation, 3-hole mount, and the listed dimensions against the existing starter and machine application details before ordering.

FAQ

What is the part number for this starter motor?

The part number is MS141.

What voltage does this starter motor use?

It is a 24V starter motor.

How many teeth does the pinion have?

The pinion has 9 teeth.

What is the rotation direction?

The starter rotates clockwise, listed as CW.

Is this a new or remanufactured unit?

It is listed as new.

What warranty is supplied?

The warranty listed is one year.
