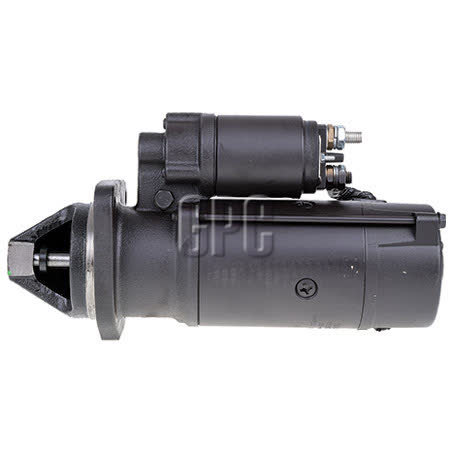

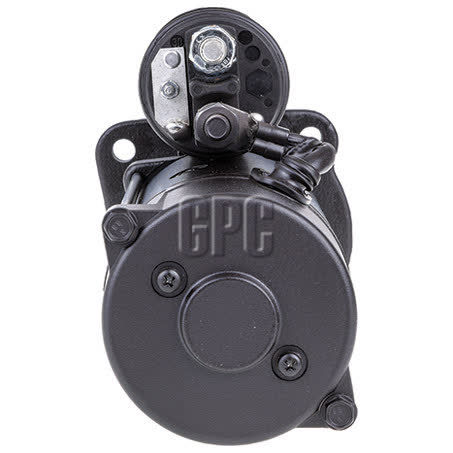

Mahle Starter Motor 24V 10T CW MS443

The MAHLE MS443 starter motor is a new 24V unit with a 10 tooth pinion, clockwise rotation, and a 4kW power rating. It is a gear reduction starter motor with a 3 hole mount, designed for applications that call for this combination of voltage, rotation, and mounting pattern.

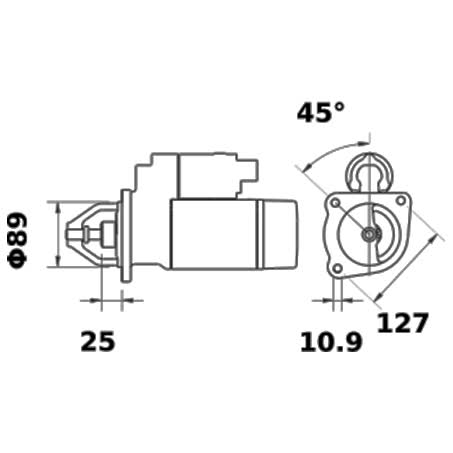

Key identification details for this unit include part number MS443, flange diameter 89mm, mount centres 127mm, and a 39.6mm pinion diameter. The starter uses 3 mounting bores, a mount hole diameter of 11mm, and is listed with a flywheel depth of 25.0.

This MAHLE starter motor is supplied as new and carries a one year warranty. It is described as the gear reduction version of MS331 and IM598, which may be useful when cross-checking replacement options by part number and construction type.

Key Features

• 24V starter motor with 10 tooth pinion
• Clockwise rotation
• 4kW power rating
• 3 hole mount design
• Gear reduction version
• New unit with one year warranty

Specifications

• Brand: MAHLE
• Part number: MS443
• Product type: Starter motor
• Voltage: 24V
• Rotation: CW
• Number of teeth: 10
• Power rating: 4kW
• Starter mount type: 3 hole

Fitment guidance

• Fitment references supplied include Mack Manager, Mack Midlum, Mack Premium, Renault Trucks Midlum, and related year listings in the provided applications.
• The provided fitment preview includes Mack Manager 1997, Mack Midlum 2001 to 2003, and Mack Premium 1996 to 2000.
• Renault Trucks Midlum 2001 is also shown in the supplied application preview.

Application and Buying Notes

Before ordering, match the part number MS443 and confirm the key physical checks: 24V system voltage, 10 tooth pinion, clockwise rotation, 3 hole mounting pattern, 127mm mount centres, and 89mm flange diameter. These details are the most useful checks when comparing against the existing starter on the vehicle or the removed unit.

The 4kW rating and gear reduction design are important because they define the starter’s construction and output. If you are replacing an older unit, the note that this is the gear reduction version of MS331 and IM598 may help with identification, but the safest match is still the actual part number and the measured mounting and pinion dimensions.

Also confirm the flywheel depth of 25.0, pinion diameter of 39.6mm, and pinion at rest measurement of 22mm before purchase. These measurements can matter where there are similar-looking starters with different nose, pinion, or engagement dimensions, even when the mounting pattern appears close.

The listed resistance to salt, fog, humidity, water, dust, mud, vibration, extreme temperatures, and aggressive liquids is relevant for harsher operating conditions, but it does not replace a fitment check. For replacement work, verify the vehicle application, the physical dimensions, and the starter drive configuration together rather than relying on one detail alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MS443 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres C 127mm, Number of Teeth 10, Pinion Diameter 39.6mm, Rotation CW, Voltage 24, Item Type Starter Motor, Starter Mount Type 3 Hole.

Additional published details for cross-checking include Transmission Type with reduction gear, Number of mounting bores 3, For flywheel depth 25.0, Packaging length 38.2, Packaging height 14.50, Product Group 2 STARTER MOTORS, Part No. MS443, Brand MAHLE, Description Mahle Starter Motor 24V 10Th CW.

Mahle Starter Motor 24V 10Th CW. Part number MS443 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MS443, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include MACK MANAGER, MACK MANAGER 1997, MACK MIDLUM, MACK MIDLUM 2001, RENAULT TRUCKS MIDLUM, RENAULT TRUCKS MIDLUM 2001. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility using part number MS443, the 24V CW specification, the 10 tooth pinion, and the measured mounting and pinion dimensions before purchase. Vehicle applications are provided as a guide only and should be checked against the existing starter and the vehicle's requirements.

FAQ

What is the part number for this starter motor?

The part number is MS443. For this listing, part number MS443 is the main reference point. Listed voltage is 24. Published fitment references include MACK MANAGER, MACK MANAGER 1997, MACK MIDLUM. These details should still be checked against the original unit before ordering.

What voltage does this starter motor use?

It is a 24V starter motor. For this listing, part number MS443 is the main reference point. Listed voltage is 24. Published fitment references include MACK MANAGER, MACK MANAGER 1997, MACK MIDLUM. These details should still be checked against the original unit before ordering.

Does this starter motor rotate clockwise or counter-clockwise?

This unit is clockwise rotation, shown as CW. For this listing, part number MS443 is the main reference point. Listed voltage is 24. Published fitment references include MACK MANAGER, MACK MANAGER 1997, MACK MIDLUM. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 10 teeth. For this listing, part number MS443 is the main reference point. Listed voltage is 24. Published fitment references include MACK MANAGER, MACK MANAGER 1997, MACK MIDLUM. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as new. For this listing, part number MS443 is the main reference point. Listed voltage is 24. Published fitment references include MACK MANAGER, MACK MANAGER 1997, MACK MIDLUM. These details should still be checked against the original unit before ordering.

What vehicles are mentioned in the fitment information?

The supplied fitment information references Mack Manager, Mack Midlum, Mack Premium, Renault Trucks Midlum, and related year listings such as Mack Manager 1997, Mack Midlum 2001 to 2003, Mack Premium 1996 to 2000, and Renault Trucks Midlum 2001. For this listing, part number MS443 is the main reference point. Listed voltage is 24. Published fitment references include MACK MANAGER, MACK MANAGER 1997, MACK MIDLUM. These details should still be checked against the original unit before ordering.
