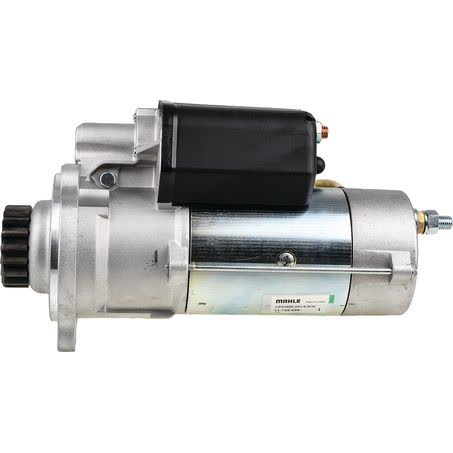

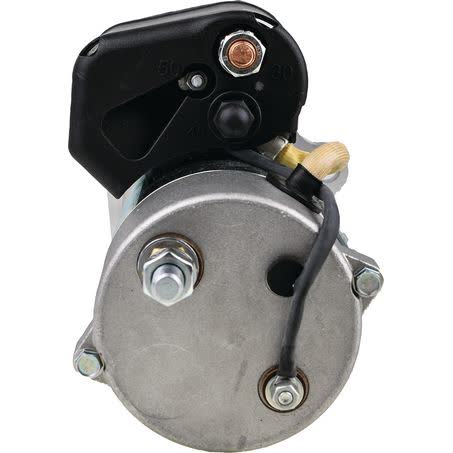

Mahle Starter Motor 24V 17 Tooth CW MS144

The MAHLE MS144 is a new 24V starter motor with clockwise rotation, 17 teeth, and a 6.5kW power rating. It is listed with part number MS144, OEM number 1201866, and a 3-hole starter mount type, so matching the part number and the mounting details is an important first check before ordering.

Key dimensions include 127mm mount centres A, 127mm mount centres B, and 127mm mount centres C, with a 124mm flange diameter, 17mm mount hole diameter, and 375mm overall length. The pinion sits 48mm at rest and the pinion diameter is 69mm, which are useful points to compare against the unit being replaced.

This starter is noted as suitable for various GE JENBACHER engines and is fitted with insulated return, a soft start relay, and thermal protection. It is a MAHLE unit, sold as new, and carries a one year warranty.

Key Features

• 24V starter motor
• Clockwise rotation
• 17-tooth drive
• 6.5kW power rating
• 3-hole starter mount
• Insulated return

Specifications

• Brand: MAHLE
• Part No.: MS144
• OEM Number: 1201866
• Voltage: 24V
• Rotation: CW
• Number of teeth: 17
• Power rating: 6.5kW
• Starter mount type: 3 hole

Application and Buying Notes

When replacing a starter motor, the most reliable checks are the part number, mounting pattern, rotation, and tooth count. For this unit, the key identifiers are MS144, OEM number 1201866, 24V electrical system, clockwise rotation, and a 17-tooth drive, along with a 3-hole mount and 127mm mount centres A, B, and C.

The physical dimensions matter just as much as the electrical rating. Compare the 124mm flange diameter, 17mm mount hole diameter, 375mm overall length, 69mm pinion diameter, and 48mm pinion at rest against the existing starter before fitting. The listed flywheel depth is 51.0, so clearance and engagement should be checked carefully on the application.

The unit is described as new and supplied with insulated return, a soft start relay, and thermal protection. Those details are useful from an electrical and durability perspective, but they do not replace a fitment check. If the old starter differs in mount type, tooth count, rotation, or overall length, stop and compare before installing.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MS144 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 127mm, Mount Centres C 127mm, Number of Teeth 17, Pinion at Rest 48mm, Power Rating 6.5kW, Suits Unit Make Mahle, Note Insulated return. Fitted with soft start relay and thermal protection. Suits various GE JENBACHER engines.

Additional published details for cross-checking include Starter Mount Type 3 Hole, OEM Number 1201866, Clamp 31, Number of mounting bores 3, For flywheel depth 51.0, Mounting points diameter 146.0, Packaging width 20.60, Net Weight 14078, Product Group 1 ROTATING ELECTRICAL, Part No. MS144.

Mahle Starter Motor 24V 17Th CW. Part number MS144 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MS144, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Where no verified application list is available, the part number, mounting details, connector style, and published specifications should be used as the primary selection criteria.

In the absence of a verified fitment list, the safest approach is to compare the removed unit directly with the listed product details. That includes checking the housing style, pulley layout, regulator arrangement, and any visible identification numbers before supply is approved.

Compatibility note: Please confirm compatibility by matching the part number MS144, OEM number 1201866, 24V clockwise configuration, 17 teeth, 3-hole mount, and the recorded dimensions against your existing starter and engine application before ordering.

FAQ

What is the part number for this starter motor?

The listed part number is MS144. The OEM number supplied is 1201866. For this listing, part number MS144 is the main reference point. Listed voltage is 24. These details should still be checked against the original unit before ordering.

Is this a 24V or 12V starter motor?

It is a 24V starter motor. For this listing, part number MS144 is the main reference point. Listed voltage is 24. These details should still be checked against the original unit before ordering.

What direction does this starter rotate?

It is clockwise rotation, shown as CW. For this listing, part number MS144 is the main reference point. Listed voltage is 24. These details should still be checked against the original unit before ordering.

How many teeth does the starter gear have?

The starter has 17 teeth. For this listing, part number MS144 is the main reference point. Listed voltage is 24. These details should still be checked against the original unit before ordering.

What mounting style does it use?

It uses a 3-hole starter mount with 3 mounting bores and 127mm mount centres A, B, and C. For this listing, part number MS144 is the main reference point. Listed voltage is 24. These details should still be checked against the original unit before ordering.

What engine applications are listed for this starter?

It is noted as suitable for various GE JENBACHER engines. That is the only application detail provided, so fitment should still be confirmed against the part number, mount pattern, and dimensions. For this listing, part number MS144 is the main reference point. Listed voltage is 24. These details should still be checked against the original unit before ordering.
