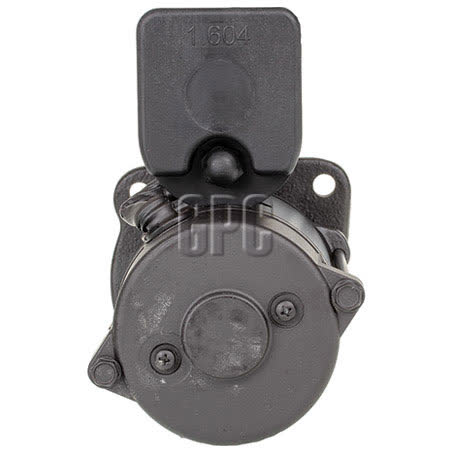

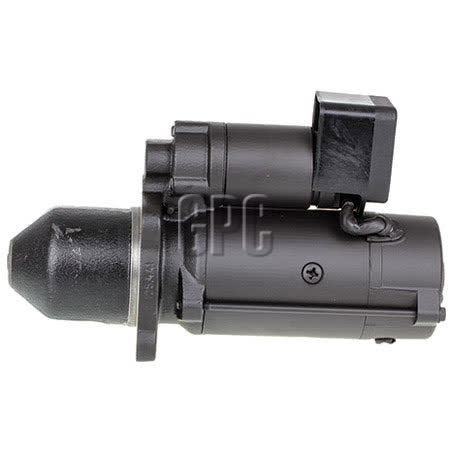

Mahle Starter Motor 24V 11T CW MS214

The Mahle starter motor MS214 is a new 24V unit with 11 teeth and clockwise rotation (CW). It is a starter motor with reduction gear, rated at 4kW, and supplied as a 3-hole mounting design with 3 mounting bores. For buyers matching on key dimensions, the listed mount centres are 127mm and 90mm, with an overall length of 342mm.

This starter is identified with part number MS214 and has a flange diameter of 89mm, mount hole diameter of 11mm, and a pinion diameter of 41mm. The pinion at rest is listed at 48mm, and the for flywheel depth measurement is 51.0. Those figures are important when confirming physical clearance, mounting position, and engagement requirements before purchase.

Mahle also notes resistance to salt, fog, humidity, water, dust, mud, vibration, extreme temperatures, and aggressive liquids, together with compliance with electromagnetic compatibility (EMC) standards and other international directives and standards. The unit is listed as new, sold each, and carries a one year warranty.

Key Features

• 24V Mahle starter motor
• 11-tooth pinion
• Clockwise rotation (CW)
• 4kW power rating
• 3-hole mounting design
• Reduction gear transmission

Specifications

• Brand: Mahle
• Part No.: MS214
• Type: Starter motor
• Voltage: 24V
• Rotation: CW
• Number of teeth: 11
• Power rating: 4kW
• Starter mount type: 3 hole

Fitment guidance

• Listed fitment references include SISU SK150, SISU SK150 1981, VALTRA A SERIES, VALTRA A SERIES 2015, VALTRA N SERIES, and VALTRA N SERIES 2015.
• Fitment information is supplied only at model-family level, so final confirmation should still be made against the part number MS214 and the measured mounting and electrical details.
• Check that the application requires a 24V starter, 11-tooth pinion, CW rotation, 3-hole mounting, and the stated dimensions before ordering.

Application and Buying Notes

Starter motors need to match more than the vehicle name alone. For MS214, the practical checkpoints are 24V, 11 teeth, CW rotation, 3-hole mounting, 4kW output, and the listed dimensions including 127mm and 90mm mount centres, 89mm flange diameter, and 342mm overall length.

The flywheel and pinion measurements matter just as much as voltage. This unit has a 41mm pinion diameter, 48mm pinion at rest, and a flywheel depth figure of 51.0, so it should only be considered where those values align with the existing installation or replacement requirement.

If you are replacing an older starter, compare the existing unit’s part number, rotation, mounting style, and tooth count before fitting. The wrong combination can lead to poor engagement, incorrect alignment, or a unit that simply does not bolt up correctly.

The listed resistance to contamination and EMC compliance are useful indicators for demanding working conditions, but they do not replace fitment confirmation. The safest approach is to match the application, check the physical measurements, and verify the electrical specification before finalising the order.

This starter is supplied new and carries a one year warranty, which is straightforward for buyers wanting a like-for-like replacement path. Even so, model-family references such as SISU SK150 or VALTRA A and N Series should be treated as a guide only until the exact part number and measurements are confirmed.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MS214 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 127mm, Mount Centres C 90mm, Number of Teeth 11, Pinion at Rest 48mm, Power Rating 4kW, Suits Unit Make Mahle, Item Type Starter Motor.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Transmission Type with reduction gear, Number of mounting bores 3, For flywheel depth 51.0, Mounting points diameter 127.0, Packaging width 21.50, Net Weight 10734, Product Group 1 ROTATING ELECTRICAL, Part No. MS214, Brand MAHLE.

Mahle Starter Motor 24V 11Th CW. Part number MS214 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MS214, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include SISU SK150, SISU SK150 1981, VALTRA A SERIES, VALTRA A SERIES 2015, VALTRA N SERIES, VALTRA N SERIES 2015. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Please confirm fitment by matching part number MS214, 24V specification, 11-tooth CW configuration, 3-hole mounting, and the listed dimensions against the vehicle or removed starter before purchase.

FAQ

What is the part number for this starter motor?

The part number is MS214.

Is this starter motor 24V or 12V?

It is a 24V starter motor.

How many teeth does the pinion have?

The pinion has 11 teeth.

What direction does it rotate?

It rotates clockwise, listed as CW.

What mounting style does it use?

It uses a 3-hole mounting design with 3 mounting bores.

Which vehicles are listed as fitment references?

The listed fitment references include SISU SK150, SISU SK150 1981, VALTRA A SERIES, VALTRA A SERIES 2015, VALTRA N SERIES, and VALTRA N SERIES 2015. Final fitment should still be checked against part number MS214 and the measurements provided.
